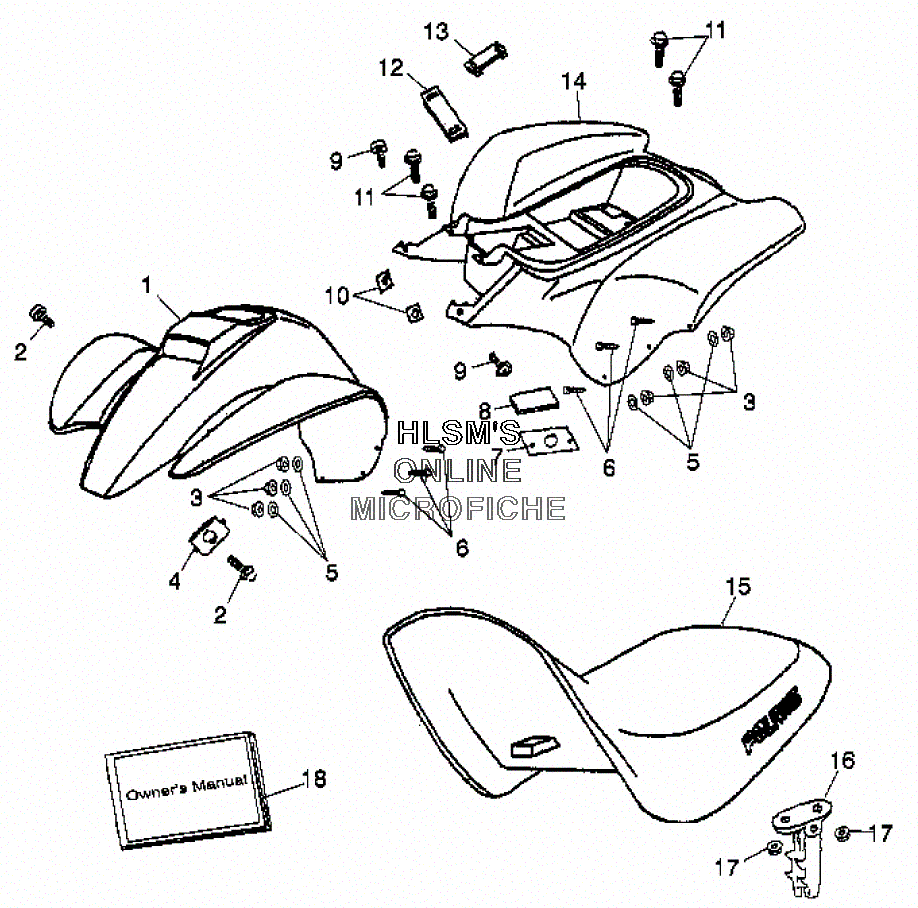

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 50 (A03EA05CA) - 2003 года выпуска
-
№АртикулНазвание
-
10450990 CAB (RED/FRONT)CAB (RED/FRONT)
-
20450824 BOLT, W/WASHER HEXAGONBOLT, W/WASHER HEXAGON
-
30450741 NUT, LOCKNUT, LOCK
-
40450353 PLATE, FIXEDPLATE, FIXED
-
50450710 WASHER, PLAINWASHER, PLAIN
-
60450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
70450345 PAD, FOIL PROTECTORPAD, FOIL PROTECTOR
-
80450346 FOAM, BATTERY PADFOAM, BATTERY PAD
-
90450297 BOLT, PANBOLT, PAN
-
100450342 NUT, U PLATENUT, U PLATE
-
110450340 BOLT, HEXAGONBOLT, HEXAGON
-
120450897 STRAP, BATTERYSTRAP, BATTERY
-
130450898 STRAP TOOL BOXSTRAP TOOL BOX
-
140450991 CAB (REAR/RED)CAB (REAR/RED)
-
150450355 SEAT ASSY.SEAT ASSY.
-
160450356 HOOK, SEATHOOK, SEAT
-
170450880 NUT, FLG W/SERRNUT, FLG W/SERR
-
189917873 OWNERS MANUAL 03 ATV YOUTHOWNERS MANUAL 03 ATV YOUTH
