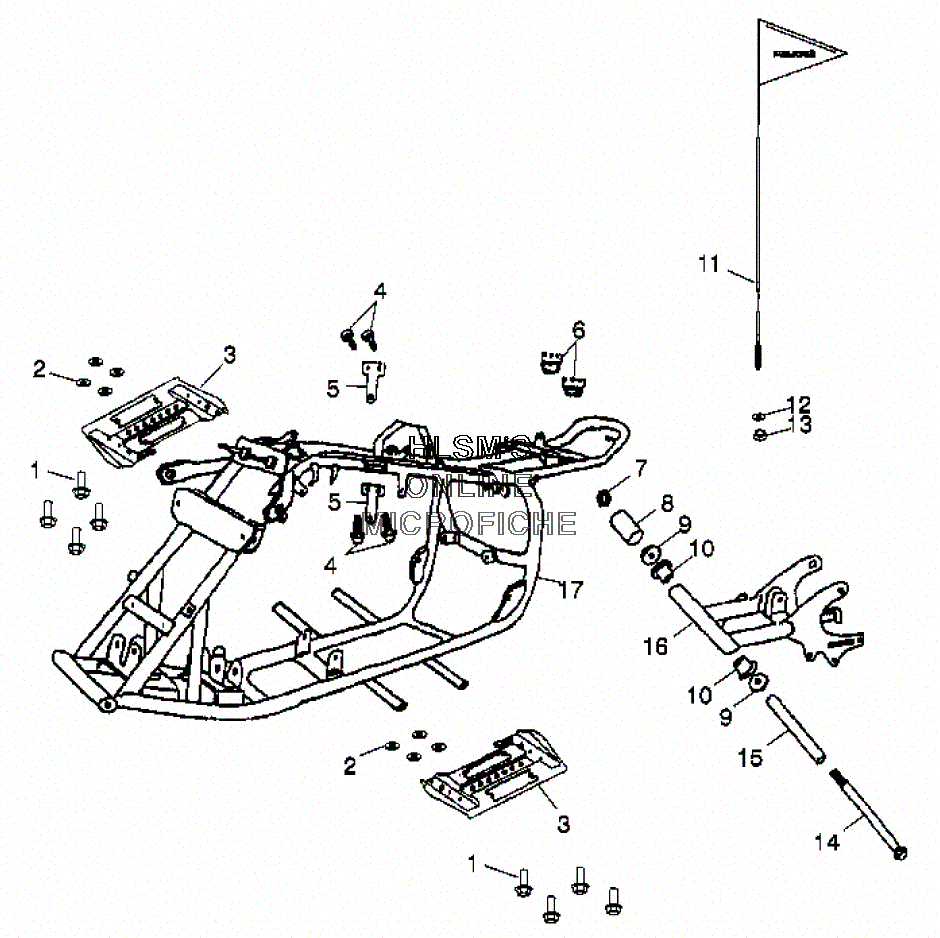

FRAME для Polaris SCRAMBLER 50 (A03EA05CA) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0450325 BOLT, HEXAGON
    BOLT, HEXAGON
  • 2
    0450613 GROMMET, FOOTREST
    GROMMET, FOOTREST
  • 3
    0450591 FOOTWELL, BOTTOM BOARD
    FOOTWELL, BOTTOM BOARD
  • 4
    0450887 BOLT, HEXAGON
    BOLT, HEXAGON
  • 5
    0450299 PLATE, ENGINE BRACKET
    PLATE, ENGINE BRACKET
  • 6
    0450290 RUBBER, SEAT
    RUBBER, SEAT
  • 7
    0450878 NUT, LOCK NYLON
    NUT, LOCK NYLON
  • 8
    0450304 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • 9
    0450303 COVER, SWING ARM SEAL
    COVER, SWING ARM SEAL
  • 10
    0450302 SEAT, GREASE CONTAIN
    SEAT, GREASE CONTAIN
  • 11
    0450993 FLAG, VISUAL
    FLAG, VISUAL
  • 12
    0450844 WASHER, SPRING
    WASHER, SPRING
  • 13
    0450845 NUT, HEXAGON
    NUT, HEXAGON
  • 14
    0450305 BOLT, HEXAGON
    BOLT, HEXAGON
  • 15
    0450301 TUBE, SPACER
    TUBE, SPACER
  • 16
    0451073 SWING ARM ASSY.
    SWING ARM ASSY.
  • 17
    0450589 FRAME, COMP
    FRAME, COMP
