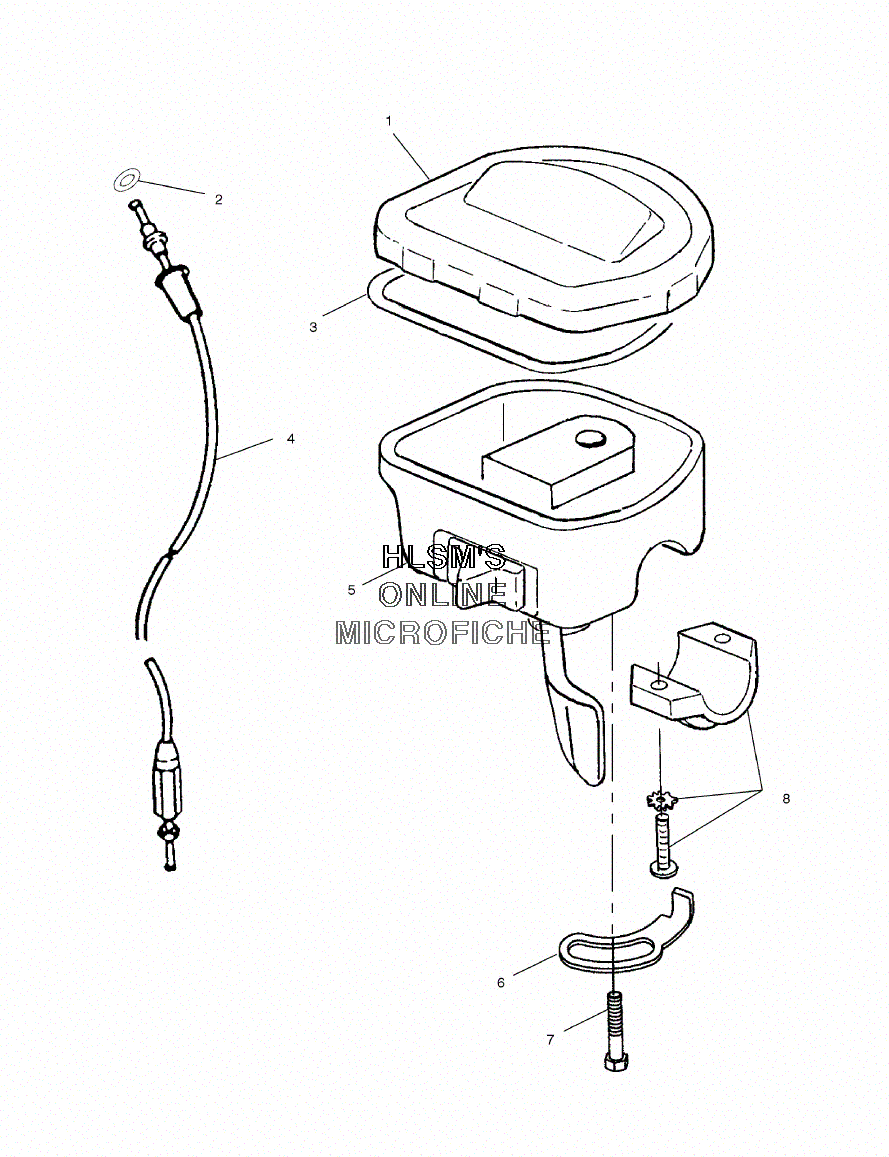

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris MAGNUM 330 4X4 (A03CD32FB) (GUN METAL) - 2003 года выпуска
-
№АртикулНазвание
-
15434113 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
25410193 O-RINGO-RING
-
35411439 O-RINGO-RING
-
47080967 CABLE, THROTTLE, 1/4 TURN, 4 STKCABLE, THROTTLE, 1/4 TURN, 4 STK
-
52010204 ASSY., THROTTLE CONTROL HOBBS (INCL.8)ASSY., THROTTLE CONTROL HOBBS (INCL.8)
-
65245134 BRACKET, THROTTLE STOPBRACKET, THROTTLE STOP
-
77517910 SCREWSCREW
-
82010191 THROTTLE CLAMP ASSY.THROTTLE CLAMP ASSY.
