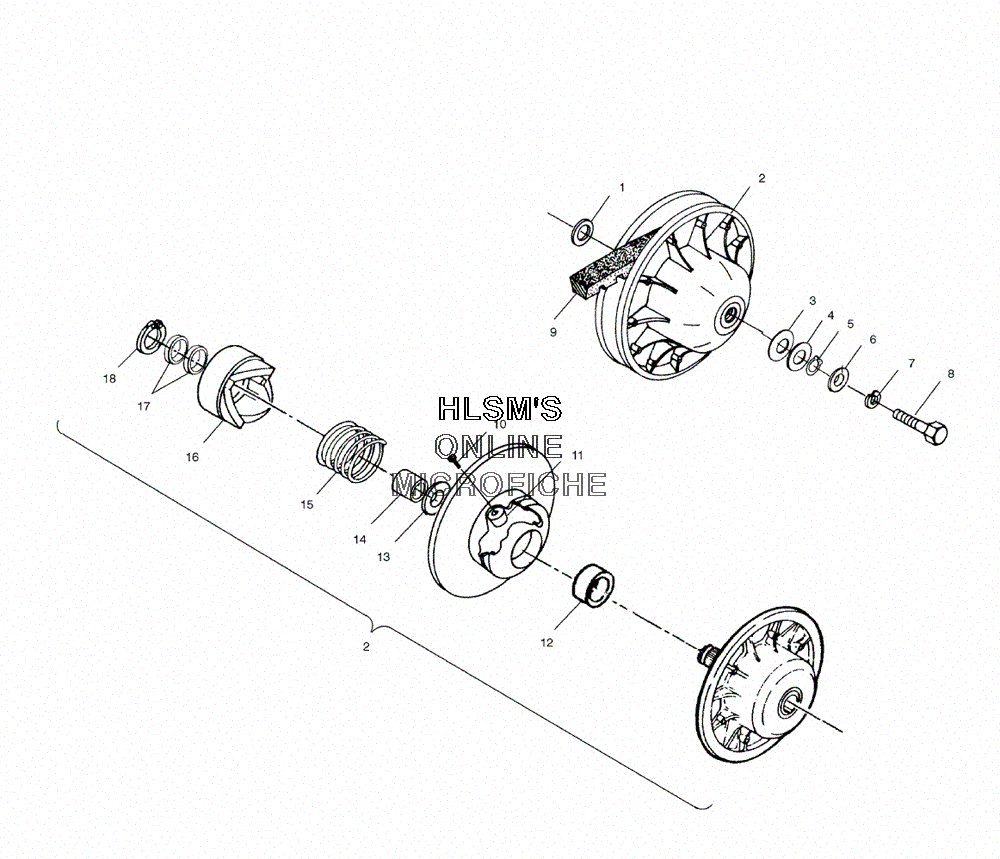

CLUTCH - DRIVEN для Polaris MAGNUM 330 4X4 (A03CD32FB) (GUN METAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7556120 BUSHING (OPT.)
    BUSHING (OPT.)
  • 2
    1321973 CLUTCH, DRIVN EBS 31 DEG. W/ Y ASSY. (INCL.4, 6, 12, 18)
    CLUTCH, DRIVN EBS 31 DEG. W/ Y ASSY. (INCL.4, 6, 12, 18)
  • 3
    7556013 WASHER
    WASHER
  • 4
    7556010 BUSHING
    BUSHING
  • 5
    7710461 RING, RETAIN HEAD
    RING, RETAIN HEAD
  • 6
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 7
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7515382 BOLT
    BOLT
  • 9
    3211069 BELT, DRIVE ENGINE BRAKE.
    BELT, DRIVE ENGINE BRAKE.
  • 10
    7517323 SCREW, SPECIAL
    SCREW, SPECIAL
  • 11
    1321977 ROLLER, TAPER SP 21 MACH
    ROLLER, TAPER SP 21 MACH
  • 12
    3585710 BEARING
    BEARING
  • 13
    5211115 WASHER, SPRING RETAINER
    WASHER, SPRING RETAINER
  • 14
    3576511 BUSHING
    BUSHING
  • 15
    7041635 SPRING (WHITE/ YELLOW)
    SPRING (WHITE/ YELLOW)
  • 16
    5132751 RAMP, STA EBS 31 DEG MACH
    RAMP, STA EBS 31 DEG MACH
  • 17
    5210753 SPACER (.032)
    SPACER (.032)
  • 18
    7710448 RING, RETAIN
    RING, RETAIN
