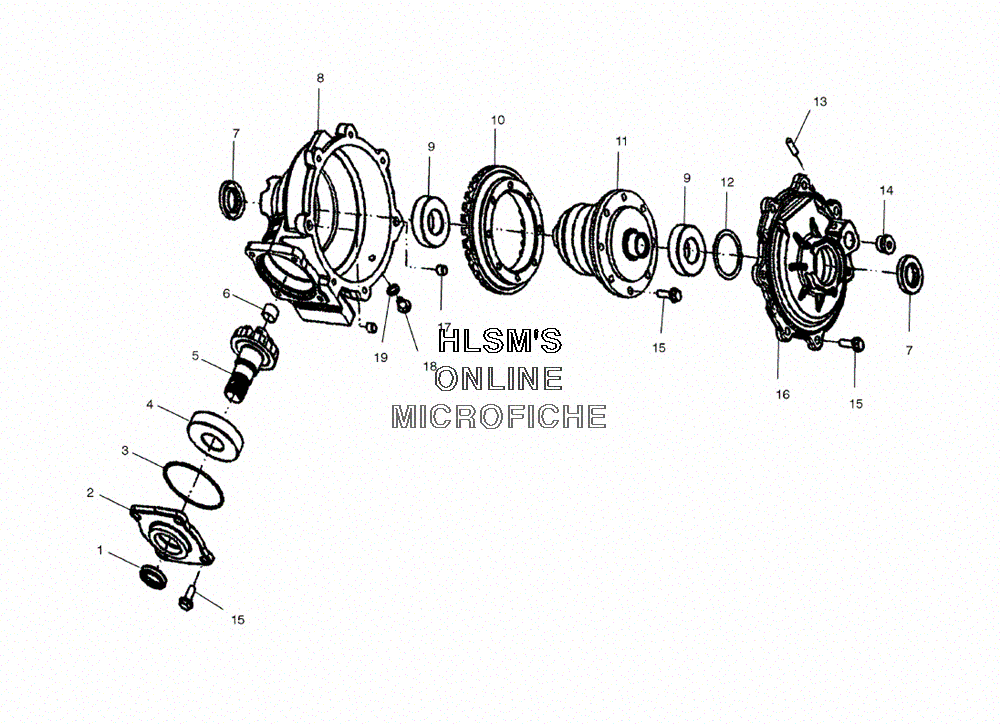

DIFFERENTIAL - FRONT для Polaris MAGNUM 330 4X4 (A03CD32FB) (GUN METAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3233785 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 2
    3233786 COVER, INPUT HOUSING (FRONT)
    COVER, INPUT HOUSING (FRONT)
  • 3
    3233588 O-RING
    O-RING
  • 4
    3233589 BEARING, BALL
    BEARING, BALL
  • 5
    3233787 SHAFT, PINION (10TEETH)
    SHAFT, PINION (10TEETH)
  • 6
    3233591 BUSHING
    BUSHING
  • 7
    3233788 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 8
    3233789 GEARCASE, HOUSING (FRONT)
    GEARCASE, HOUSING (FRONT)
  • 9
    3233790 BEARING, BALL
    BEARING, BALL
  • 10
    3233791 GEAR (31 TEETH)
    GEAR (31 TEETH)
  • 11
    3233792 DIFFERENTIAL, VISCO LOK
    DIFFERENTIAL, VISCO LOK
  • 12
    3233554 SHIM
    SHIM
  • 13
    3233524 TUBE, VENT
    TUBE, VENT
  • 14
    3233794 PLUG, HEXAGON HOLLOW
    PLUG, HEXAGON HOLLOW
  • 15
    3233252 SCREW
    SCREW
  • 16
    3233793 COVER-OUTPUT, HOUSING MACH (FRONT)
    COVER-OUTPUT, HOUSING MACH (FRONT)
  • 17
    3233529 PIPE, KNOCK
    PIPE, KNOCK
  • 18
    3233777 PLUG, HEX FLANGE
    PLUG, HEX FLANGE
  • 19
    3233254 PLUG, WASHER
    PLUG, WASHER
  • 19
    1341351 GEARCASE, VL ASSY. (FRONT)
    GEARCASE, VL ASSY. (FRONT)
