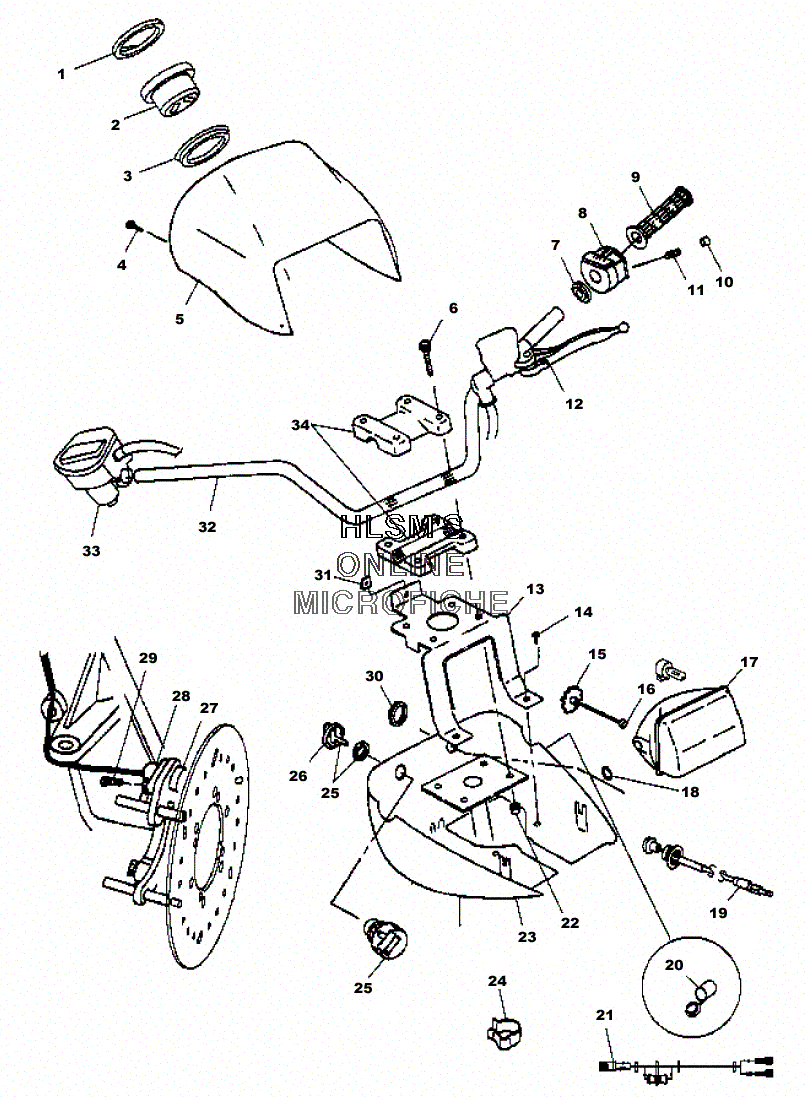

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 700 (A02CH68AC) (YELLOW) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5434380 BEZEL, REPLACEMENT CLUSTER
    BEZEL, REPLACEMENT CLUSTER
  • 2
    3280425 CLUSTER, INSTRUMENT
    CLUSTER, INSTRUMENT
  • 3
    5412138 MOUNT, RUBBER INSTRUMENT CLUSTER
    MOUNT, RUBBER INSTRUMENT CLUSTER
  • 4
    7511881 SCREW
    SCREW
  • 5
    5434284-053 POD, HDLT (UPPER/YELLOW)
    POD, HDLT (UPPER/YELLOW)
  • 6
    7515189 SCREW
    SCREW
  • 7
    5433903 SPACER, SWITCH (LEFT)
    SPACER, SWITCH (LEFT)
  • 8
    4010560 SWITCH, HANDLEBAR HI/LO (LEFT)
    SWITCH, HANDLEBAR HI/LO (LEFT)
  • 9
    5433834-070 GRIP, HANDLEBAR (BLACK)
    GRIP, HANDLEBAR (BLACK)
  • 10
    5432952 PLUG, HOLE
    PLUG, HOLE
  • 11
    7517625 SCREW SET
    SCREW SET
  • 13
    5244969-067 BRACKET, POD MOUNTING (BLACK)
    BRACKET, POD MOUNTING (BLACK)
  • 14
    7517317 SCREW
    SCREW
  • 15
    4032079 KNOB, ADJUSTING
    KNOB, ADJUSTING
  • 16
    4032078 ROD, ADJUSTING
    ROD, ADJUSTING
  • 17
    2410268 HEADLAMP ASSY.
    HEADLAMP ASSY.
  • 17
    4010253 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 18
    5410163 O-RING
    O-RING
  • 19
    7081008 CABLE, CHOKE FRICTION 40''
    CABLE, CHOKE FRICTION 40''
  • 20
    4010283 RECEPTACLE, POD MOUNT 12 VOLT
    RECEPTACLE, POD MOUNT 12 VOLT
  • 21
    2460989 HARNESS, LIGHT POD/ACCY
    HARNESS, LIGHT POD/ACCY
  • 22
    7542122 NUT, LOCK
    NUT, LOCK
  • 23
    5433762-070 POD-HEADLIGHT (LOWER/BLACK)
    POD-HEADLIGHT (LOWER/BLACK)
  • 24
    7080631 CLIP, CABLE RETAINER
    CLIP, CABLE RETAINER
  • 25
    4010390 SWITCH, IGNITION KEYSTART (INCL. KEY)
    SWITCH, IGNITION KEYSTART (INCL. KEY)
  • 25
    4010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
    KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
  • 25
    4010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
    KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
  • 26
    5433534 KEY COVER, KEYSWITCH
    KEY COVER, KEYSWITCH
  • 27
    5132382 CAP, HALL SENSOR
    CAP, HALL SENSOR
  • 28
    4010298 SENSOR, HALLEFFECT
    SENSOR, HALLEFFECT
  • 29
    7517658 SCREW
    SCREW
  • 30
    7080922 NUT, CHOKE
    NUT, CHOKE
  • 31
    7670127 CLIP, SCREW PANEL
    CLIP, SCREW PANEL
  • 32
    5242987-067 TUBE, HANDLEBAR (BLACK)
    TUBE, HANDLEBAR (BLACK)
  • 34
    2200774 HANDLE BAR BLOCK KIT (INCL. BLOCKS AND 6,22,34)
    HANDLE BAR BLOCK KIT (INCL. BLOCKS AND 6,22,34)
  • 34
    5630616-067 BLOCK, HANDLEBAR RETAINER (BLACK)
    BLOCK, HANDLEBAR RETAINER (BLACK)
