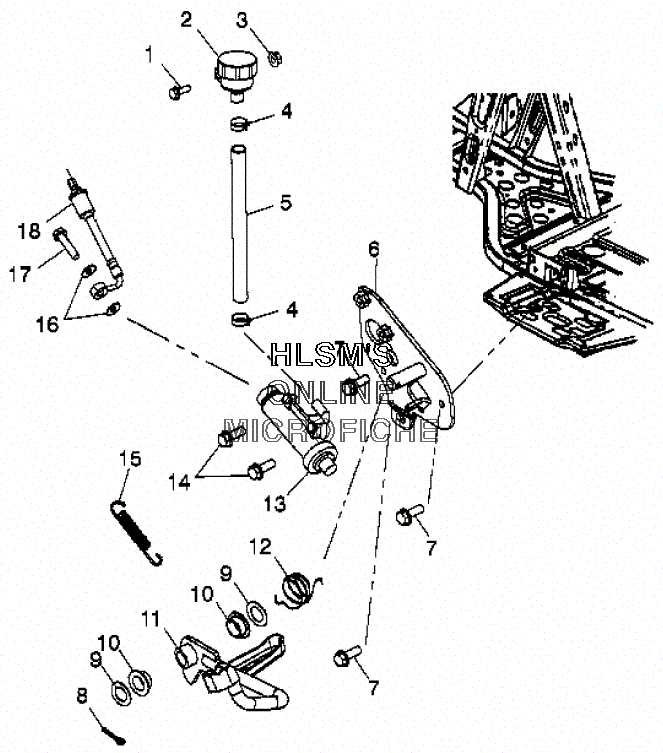

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 700 (A02CH68AC) (YELLOW) - 2002 года выпуска`
-
№АртикулНазвание
-
17512240 BOLTBOLT
-
21930854 RESERVOIR ASM,R.BRAKERESERVOIR ASM,R.BRAKE
-
37542153 NUTNUT
-
47080003 CLAMP,HOSECLAMP,HOSE
-
51910331 HOSE-RESERVOIR,HBHOSE-RESERVOIR,HB
-
61013414-067 WELD-BRAKE NUT,BLKWELD-BRAKE NUT,BLK
-
77517386 SCREW,SCREW,
-
87661401 COTTER PINCOTTER PIN
-
97555919 WASHERWASHER
-
105433189 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
111013415-067 BRAKE ROD,BLKBRAKE ROD,BLK
-
127041750 SPRING,TORSION,BRAKESPRING,TORSION,BRAKE
-
131910301 CYLINDER,MASTER,BRAKE,REARCYLINDER,MASTER,BRAKE,REAR
-
147515158 SCREWSCREW
-
157042075 SPRING-GEAR SELECTOR LOCKOUTSPRING-GEAR SELECTOR LOCKOUT
-
165410988 SEALSEAL
-
171910499 BOLT-BANJO,10MMX1.00BOLT-BANJO,10MMX1.00
-
181910429 LINE-BRAKE,REAR,FOOTLINE-BRAKE,REAR,FOOT
