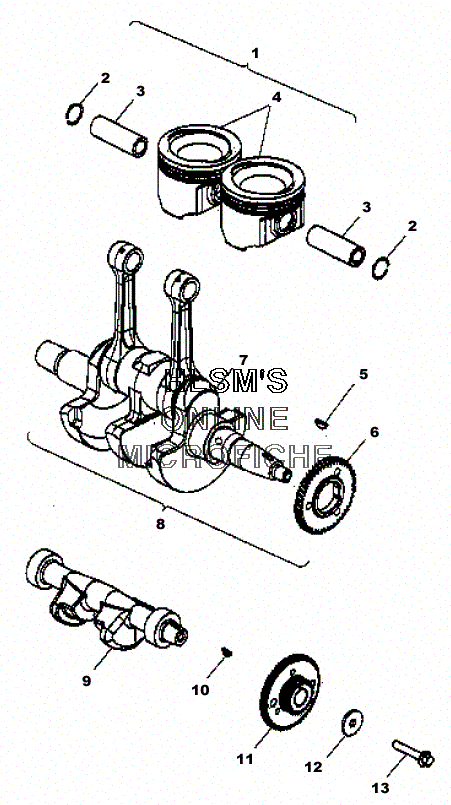

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 700 (A02CH68AC) (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
12202107 PISTON KIT (INCL. 2,3,4)PISTON KIT (INCL. 2,3,4)
-
57721117 KEY,WOODRUFFKEY,WOODRUFF
-
65133220 KEY,WOODRUFFKEY,WOODRUFF
-
71201966 (W/O GEAR)(W/O GEAR)
-
81202222 CRANKSHAFT KIT W/BOLT (INCL. 6,7)CRANKSHAFT KIT W/BOLT (INCL. 6,7)
-
95132396 SHAFT, BALANCESHAFT, BALANCE
-
107721131 KEYWOOD RUFFKEYWOOD RUFF
-
111202261 BALANCE SHAFT GEAR ASSY. HELIX COMBO (IF BUILT BEFORE 9/17/01)BALANCE SHAFT GEAR ASSY. HELIX COMBO (IF BUILT BEFORE 9/17/01)
-
111202269 BALANCE SHAFT GEAR ASSY. HELIX COMBO (IF BUILT AFTER 9/17/01)BALANCE SHAFT GEAR ASSY. HELIX COMBO (IF BUILT AFTER 9/17/01)
-
127555982 WASHER, RETAININGWASHER, RETAINING
-
137517865 SCREWSCREW
