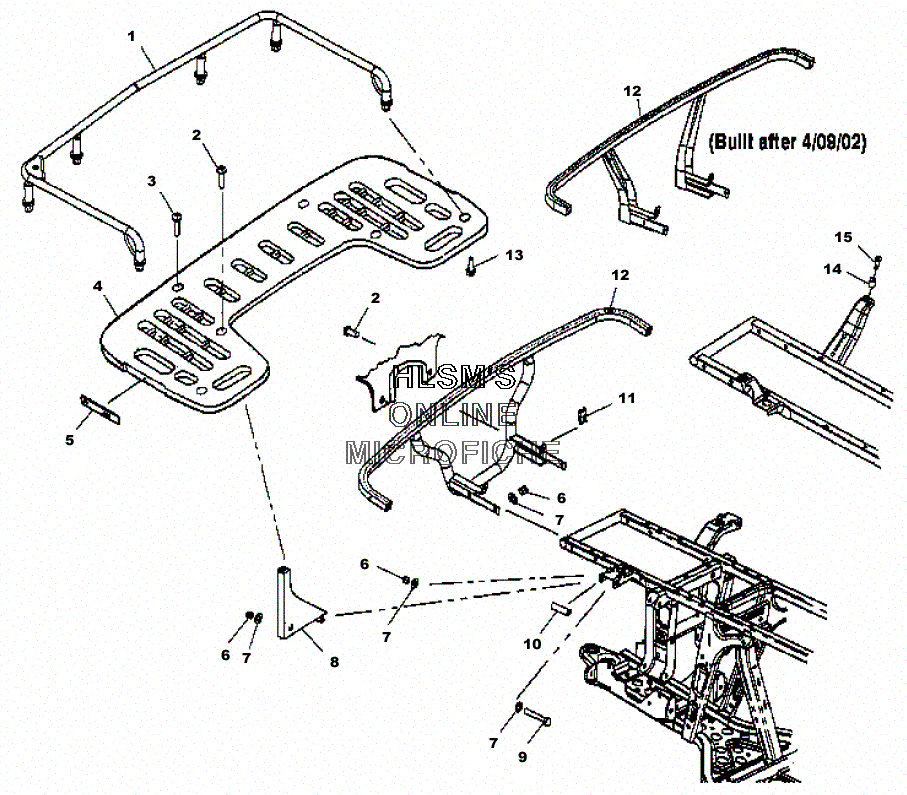

RACK AND BUMPER MOUNTING - REAR (IF BUILT BEFORE 9/03/01) для Polaris SPORTSMAN 700 (A02CH68AB) (SPRUCE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2871501 RACK EXT,REAR,GENIV,3.5'' (INCL. 13)
    RACK EXT,REAR,GENIV,3.5'' (INCL. 13)
  • 2
    7517685 SCREW
    SCREW
  • 3
    7517983 SCR-5/16-18X3.00 TR/TX-M
    SCR-5/16-18X3.00 TR/TX-M
  • 4
    2670174-070 ASM-RACK,REAR,BLK (INCL. REF. 5 AND WARNING DECAL)
    ASM-RACK,REAR,BLK (INCL. REF. 5 AND WARNING DECAL)
  • 5
    7079927 DECAL-REFLECT.6.75,RED
    DECAL-REFLECT.6.75,RED
  • 6
    7542324 NUT
    NUT
  • 7
    7558402 WASHER STEEL
    WASHER STEEL
  • 8
    1040524-067 MNT,LH.FRT,R.RACK,BLK (IF BUILT BEFORE 9/03/01)
    MNT,LH.FRT,R.RACK,BLK (IF BUILT BEFORE 9/03/01)
  • 8
    1040525-067 MNT,RH.FRT,R.RACK,BLK. (IF BUILT BEFORE 9/03/01)
    MNT,RH.FRT,R.RACK,BLK. (IF BUILT BEFORE 9/03/01)
  • 9
    7515385 SCREW
    SCREW
  • 10
    5333332-067 SPACER (IF BUILT BEFORE 9/03/01)
    SPACER (IF BUILT BEFORE 9/03/01)
  • 11
    7670096 NUT (IF BUILT BEFORE 4/09/02)
    NUT (IF BUILT BEFORE 4/09/02)
  • 12
    1040490-067 SUPPORT,R.RACK,(500),BLK (IF BUILT BEFORE 4/09/02)
    SUPPORT,R.RACK,(500),BLK (IF BUILT BEFORE 4/09/02)
  • 12
    1013724-067 SUPPORT,R.RACK,(500),BLK (IF BUILT AFTER 4/09/02)
    SUPPORT,R.RACK,(500),BLK (IF BUILT AFTER 4/09/02)
  • 13
    7517208 SCREW
    SCREW
  • 14
    5334092 SPACER-.375X.75X1.56,B (IF BUILT AFTER 9/03/01)
    SPACER-.375X.75X1.56,B (IF BUILT AFTER 9/03/01)
  • 15
    7517983 SCR-5/16-18X3.00 TR/TX-M (IF BUILT AFTER 9/03/01)
    SCR-5/16-18X3.00 TR/TX-M (IF BUILT AFTER 9/03/01)
