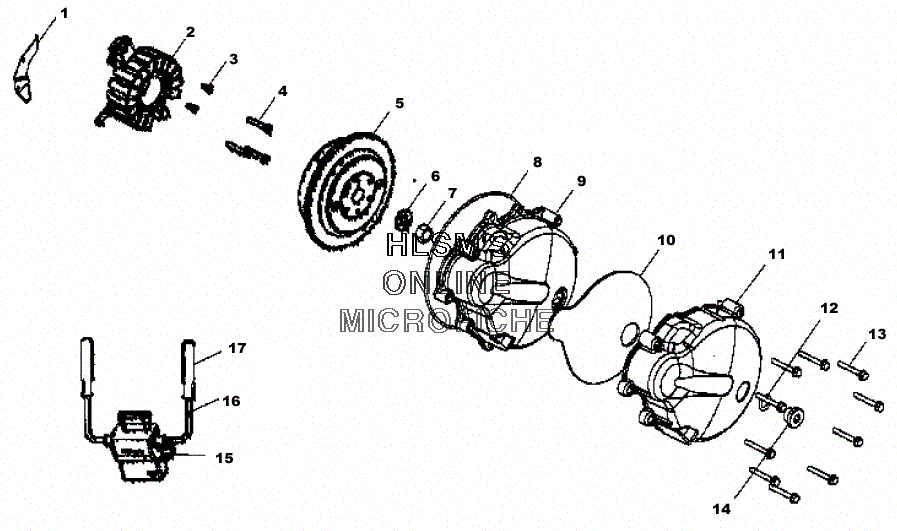

MAGNETO для Polaris SPORTSMAN 700 (A02CH68AB) (SPRUCE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5245364 STATOR, BRACKET WIRE HOLDDOWN
    STATOR, BRACKET WIRE HOLDDOWN
  • 2
    4010709 STATOR ASSY.
    STATOR ASSY.
  • 3
    7517847 SCREW
    SCREW
  • 4
    7517848 SCREW
    SCREW
  • 5
    4060152 FLYWHEEL, IGNITION
    FLYWHEEL, IGNITION
  • 6
    7555907 WASHER
    WASHER
  • 7
    7546909 NUT
    NUT
  • 8
    5812049 SEAL, O-RING
    SEAL, O-RING
  • 9
    1201684 HOUSING, STATOR
    HOUSING, STATOR
  • 10
    5812283 COVER, SOUND DAMPENING
    COVER, SOUND DAMPENING
  • 11
    5434310 COVER, OUTER (MAG)
    COVER, OUTER (MAG)
  • 12
    5411564 O-RING
    O-RING
  • 13
    7517950 SCREW
    SCREW
  • 14
    5433820 PLUG, HOLE TMNG
    PLUG, HOLE TMNG
  • 15
    4010696 CONTROLLER, IGNITION
    CONTROLLER, IGNITION
  • 16
    4010124-66 CONTROLLER, IGNITION
    CONTROLLER, IGNITION
  • 17
    4010477 BOOT SPARK PLUG W/IGNITION WIRE
    BOOT SPARK PLUG W/IGNITION WIRE
