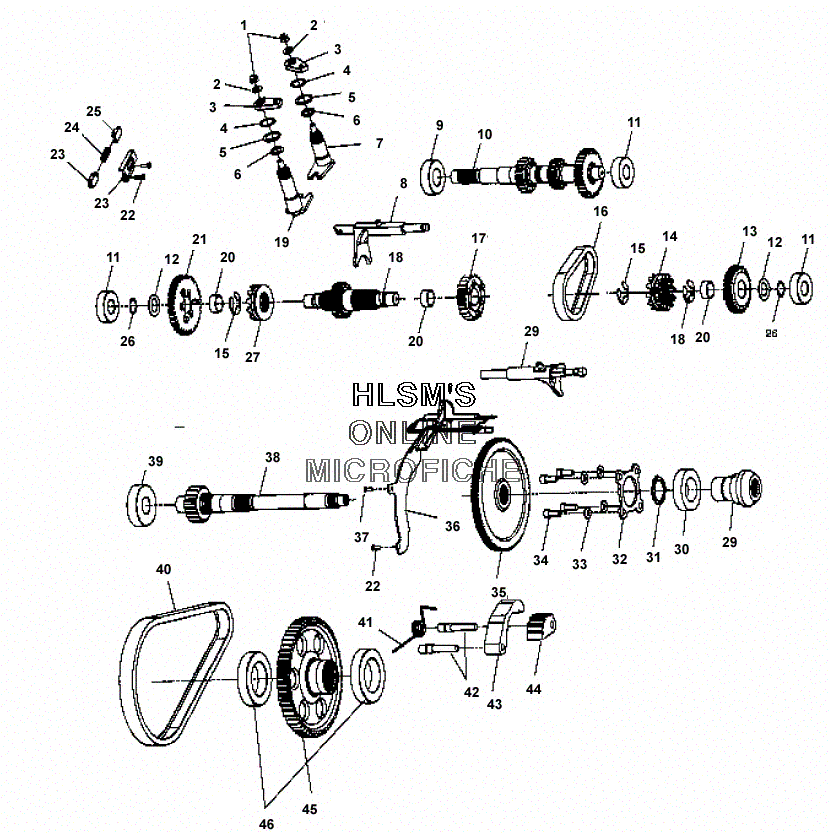

GEARCASE - INTERNAL COMPONENTS для Polaris SPORTSMAN 400 (A02CH42AB) (PORCHE RED) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3233055 NUT
    NUT
  • 2
    3233054 WASHER
    WASHER
  • 3
    3233153 BELLCRANK
    BELLCRANK
  • 4
    3233045 RING,RETAINING
    RING,RETAINING
  • 5
    3233040 WASHER
    WASHER
  • 6
    3233548 O-RING
    O-RING
  • 7
    3233774 SHAFT-SHIFT,12-POINT,SPRING
    SHAFT-SHIFT,12-POINT,SPRING
  • 8
    3233775 SHIFT FORK,LOW,SUB-ASM
    SHIFT FORK,LOW,SUB-ASM
  • 9
    3233019 BEARING
    BEARING
  • 10
    3233571 SHAFT,INPUT 15T HCR,HLR(DSL)
    SHAFT,INPUT 15T HCR,HLR(DSL)
  • 11
    3233018 BEARING
    BEARING
  • 12
    3233176 WASHER
    WASHER
  • 13
    3233744 GEAR,30T,12PT
    GEAR,30T,12PT
  • 14
    3233743 DOG,ENGAGE,HIGH/REV 12PT
    DOG,ENGAGE,HIGH/REV 12PT
  • 15
    3233720 RING,RET-RING,EXTERNAL
    RING,RET-RING,EXTERNAL
  • 16
    3233036 CHAIN,SILENT,34P
    CHAIN,SILENT,34P
  • 17
    3233719 SPROCKET,24T
    SPROCKET,24T
  • 18
    3233742 SHAFT,REVERSE,29T
    SHAFT,REVERSE,29T
  • 19
    3233661 SHAFT-SHIFT
    SHAFT-SHIFT
  • 20
    3233718 BEARING,NDL,SPLIT CAGE
    BEARING,NDL,SPLIT CAGE
  • 21
    3233745 GEAR,36T,12PT
    GEAR,36T,12PT
  • 22
    3233747 SCREW-TAPPING,W/LOCK WASHER
    SCREW-TAPPING,W/LOCK WASHER
  • 23
    3233309 BRACKET,INTERLOCK
    BRACKET,INTERLOCK
  • 24
    3233189 SPRING
    SPRING
  • 25
    3233308 PIN,INTERLOCK
    PIN,INTERLOCK
  • 26
    3233177 RING,RETAINING
    RING,RETAINING
  • 27
    3233732 DOG,ENGAGEMENT,LOW
    DOG,ENGAGEMENT,LOW
  • 28
    3233664 FORK,SHIFT,H/R
    FORK,SHIFT,H/R
  • 29
    3233365 GEAR,16T,SPIRAL BEVEL,SNORKEL
    GEAR,16T,SPIRAL BEVEL,SNORKEL
  • 30
    3233265 BEARING, BALL
    BEARING, BALL
  • 31
    3233364 RING,RETAINING
    RING,RETAINING
  • 32
    3233263 COVER,CTR.DRIVE BRG.
    COVER,CTR.DRIVE BRG.
  • 33
    7552901 LOCK WASHER
    LOCK WASHER
  • 34
    3233262 SCREW
    SCREW
  • 35
    3233360 GEAR,O/P,100T,HCR
    GEAR,O/P,100T,HCR
  • 36
    3233669 DEFLECTOR-OIL
    DEFLECTOR-OIL
  • 37
    3233282 SCREW
    SCREW
  • 38
    3233715 SHAFT-CENTER DRIVE
    SHAFT-CENTER DRIVE
  • 39
    3233020 BEARING
    BEARING
  • 40
    3233430 CHAIN,SILENT
    CHAIN,SILENT
  • 41
    3233431 SPRING,TORSION
    SPRING,TORSION
  • 42
    3233432 PIN,DOWEL
    PIN,DOWEL
  • 43
    3233433 SHOE,CHAIN TENSIONER
    SHOE,CHAIN TENSIONER
  • 44
    3233434 CAM,CHAIN TENSIONER
    CAM,CHAIN TENSIONER
  • 45
    3233670 SPOCKET-60T,36T SP
    SPOCKET-60T,36T SP
  • 46
    3233268 BEARING, BALL
    BEARING, BALL
  • 46
    1341360 GEARCASE,ASM,SHAFT,PRD,500 (INCL. 1-46 AND ALL EXCEPT REF. 6 ON GEARCASE CASES AND SNORKEL)
    GEARCASE,ASM,SHAFT,PRD,500 (INCL. 1-46 AND ALL EXCEPT REF. 6 ON GEARCASE CASES AND SNORKEL)
