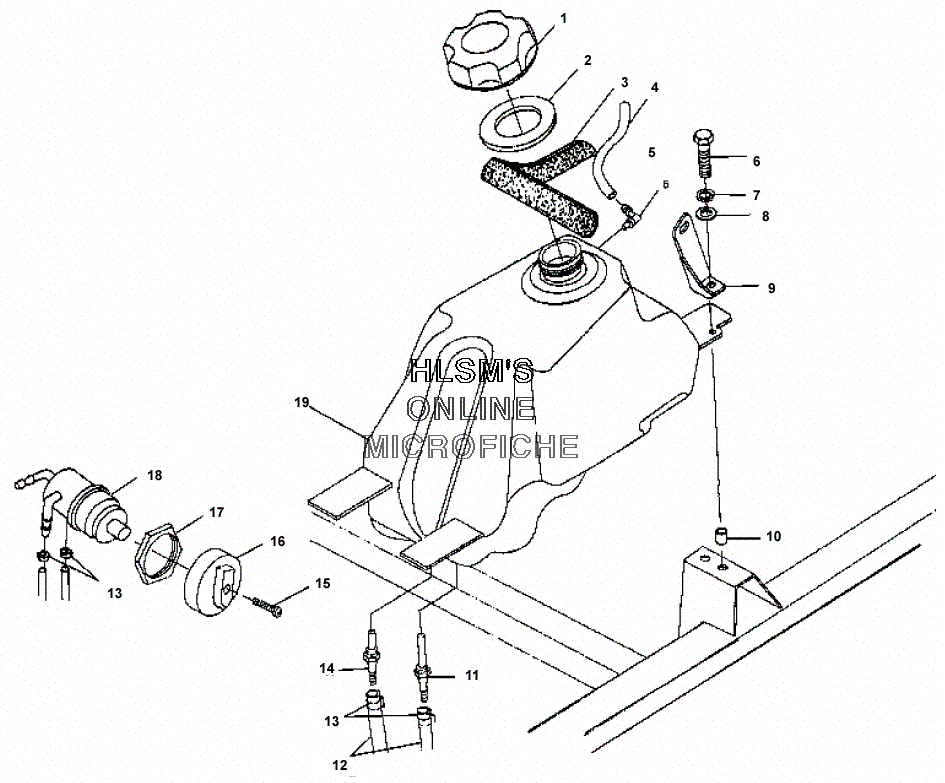

FUEL TANK для Polaris SPORTSMAN 400 (A02CH42AB) (PORCHE RED) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP,GAS TANK (INCL. 2)
    CAP,GAS TANK (INCL. 2)
  • 2
    5812123 GASKET,GAS CAP
    GASKET,GAS CAP
  • 3
    5812210 SEAL-FOAM,24.5 IN
    SEAL-FOAM,24.5 IN
  • 4
    8360009-600 FUEL LINE,1/8 ID,600 CM.
    FUEL LINE,1/8 ID,600 CM.
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7512247 BOLT
    BOLT
  • 7
    7552801 LOCK WASHER
    LOCK WASHER
  • 8
    7558301 WASHER
    WASHER
  • 9
    5222154-067 BRKT,LH.R.FUELCOVER,BLK. (IF BUILT BEFORE 7/23/01)
    BRKT,LH.R.FUELCOVER,BLK. (IF BUILT BEFORE 7/23/01)
  • 9
    5222155-067 BRKT,RH.R.FUELCOVER,BLK. (IF BUILT BEFORE 7/23/01)
    BRKT,RH.R.FUELCOVER,BLK. (IF BUILT BEFORE 7/23/01)
  • 9
    5246069-067 BRKT-FUEL CVR MNT,REAR,LH,BLK (IF BUILT AFTER 7/23/01)
    BRKT-FUEL CVR MNT,REAR,LH,BLK (IF BUILT AFTER 7/23/01)
  • 9
    5246070-067 BRKT-FUEL CVR MNT,REAR,RH,BLK (IF BUILT AFTER 7/23/01)
    BRKT-FUEL CVR MNT,REAR,RH,BLK (IF BUILT AFTER 7/23/01)
  • 10
    7547069 NUTSERT,HEX
    NUTSERT,HEX
  • 11
    7052150 FITTING,FUEL OUT,MAIN,4'',Y
    FITTING,FUEL OUT,MAIN,4'',Y
  • 12
    8450040-600 FUEL LINE,1/4 ID(600 CM.)
    FUEL LINE,1/4 ID(600 CM.)
  • 13
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 14
    7052149 FITTING,FUEL OUT,RES.,Z
    FITTING,FUEL OUT,RES.,Z
  • 15
    7517505 SCREW
    SCREW
  • 16
    5432559 KNOB,FUEL VALVE
    KNOB,FUEL VALVE
  • 17
    5432733 NUT,FUELVALVE,ATV
    NUT,FUELVALVE,ATV
  • 18
    7052161 VALVE,3-WAY
    VALVE,3-WAY
  • 19
    2520144 TANK ASM,FUEL (INCL. 12,15)
    TANK ASM,FUEL (INCL. 12,15)
