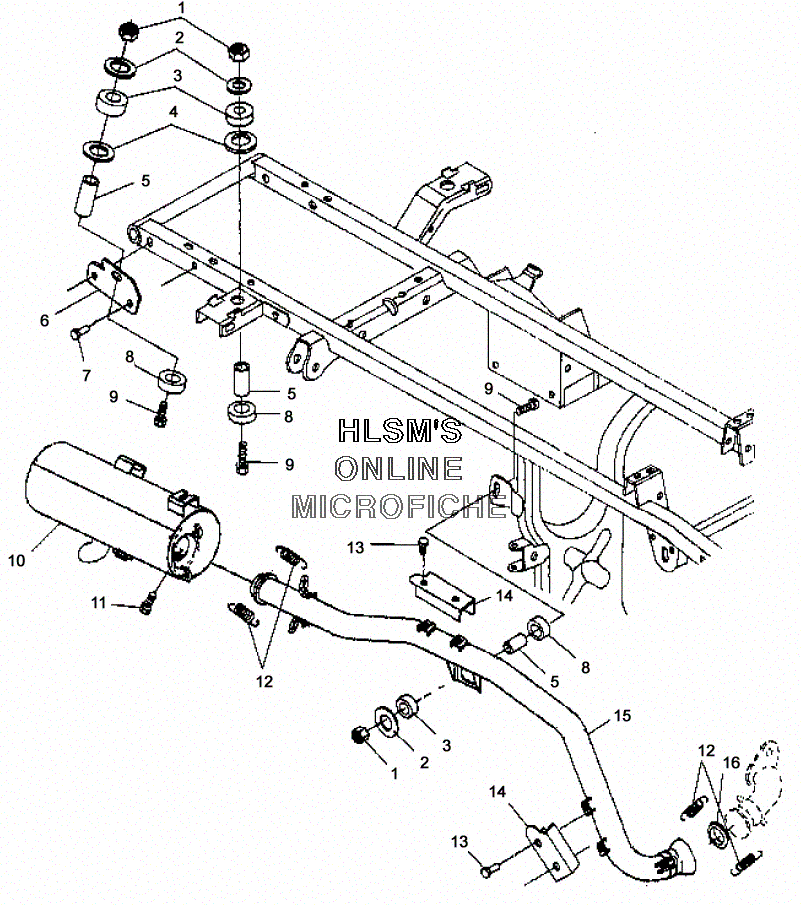

EXHAUST SYSTEM для Polaris SPORTSMAN 400 (A02CH42AB) (PORCHE RED) - 2002 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35410436 WASHER,RUBBERWASHER,RUBBER
-
47555863 BUSHINGBUSHING
-
55010192 BUSHING-RES. MT.BUSHING-RES. MT.
-
65241663 BRACKET, SILENCER, FRAME (SEE RACK AND BUMPER MOUNTING - REAR, REF. 4)BRACKET, SILENCER, FRAME (SEE RACK AND BUMPER MOUNTING - REAR, REF. 4)
-
77512329 BOLTBOLT
-
85410241 DAMPENERDAMPENER
-
97515316 BOLTBOLT
-
101261042-029 EXHAUST,SILENCER,BLKEXHAUST,SILENCER,BLK
-
117512666 BOLTBOLT
-
127041804 SPRING-EXHAUSTSPRING-EXHAUST
-
137515106 BOLTBOLT
-
145241678 SHIELD,HEAT,EXHAUSTSHIELD,HEAT,EXHAUST
-
151261040-029 EXHAUST PIPE,BLKEXHAUST PIPE,BLK
-
165243518 SEAL,EXHAUSTSEAL,EXHAUST
