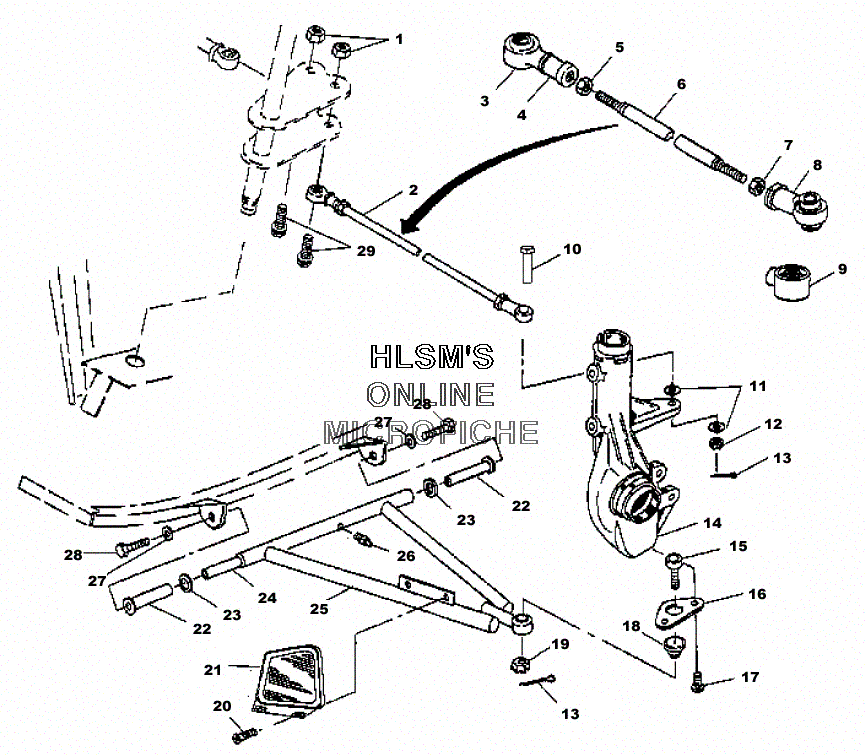

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SCRAMBLER 400 4X4 (A02BG38CA) - 2002 года выпуска`
-
№АртикулНазвание
-
17542439 NUT,NYLOKNUT,NYLOK
-
21820805 TIE,ROD,1/2-20X13.4,ASSY. [INCL. 3-8]TIE,ROD,1/2-20X13.4,ASSY. [INCL. 3-8]
-
35411291 SEAL,BOOT,ROD END,1/2 INSEAL,BOOT,ROD END,1/2 IN
-
47061034 ROD END,(RIGHT)ROD END,(RIGHT)
-
57542711 NUT-JAMNUT-JAM
-
65020926 ROD,TIEROD,TIE
-
77547028 NUT,(LEFT),JAMNUT,(LEFT),JAM
-
87061054 ROD,END,10MM,1/2-20(LEFT),42 DEGROD,END,10MM,1/2-20(LEFT),42 DEG
-
95411920 BOOT,SEAL,ROD END,10MMBOOT,SEAL,ROD END,10MM
-
107517909 BOLT-M10X1.25X65,HX WASH HDBOLT-M10X1.25X65,HX WASH HD
-
117556099 WASHERWASHER
-
127547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
137661203 PIN COTTERPIN COTTER
-
157080927 BALL-JOINT,52 DEG,BALL-JOINT,52 DEG,
-
165211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
177512284 BOLT, SOCKETBOLT, SOCKET
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197542438 NUT, CASTLENUT, CASTLE
-
207512084 SCREWSCREW
-
215431150-070 SHIELD-CV JOINT,(LEFT/BLACK)SHIELD-CV JOINT,(LEFT/BLACK)
-
215431149-070 SHIELD-CV JOINT,(RIGHT/BLACK)SHIELD-CV JOINT,(RIGHT/BLACK)
-
225433066 BUSHING, A-ARM, LONG (BLACK)BUSHING, A-ARM, LONG (BLACK)
-
235020677 BUSHING,A-ARM SPACERBUSHING,A-ARM SPACER
-
245020681 SHAFT, A-ARMSHAFT, A-ARM
-
252201611 KIT, A-FRAME (LEFT/BLACK)KIT, A-FRAME (LEFT/BLACK)
-
252201612 KIT, A-FRAME (RIGHT/BLACK)KIT, A-FRAME (RIGHT/BLACK)
-
267080433 ZERK,FITTING,THREADEDZERK,FITTING,THREADED
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
-
297515415 BOLTBOLT
