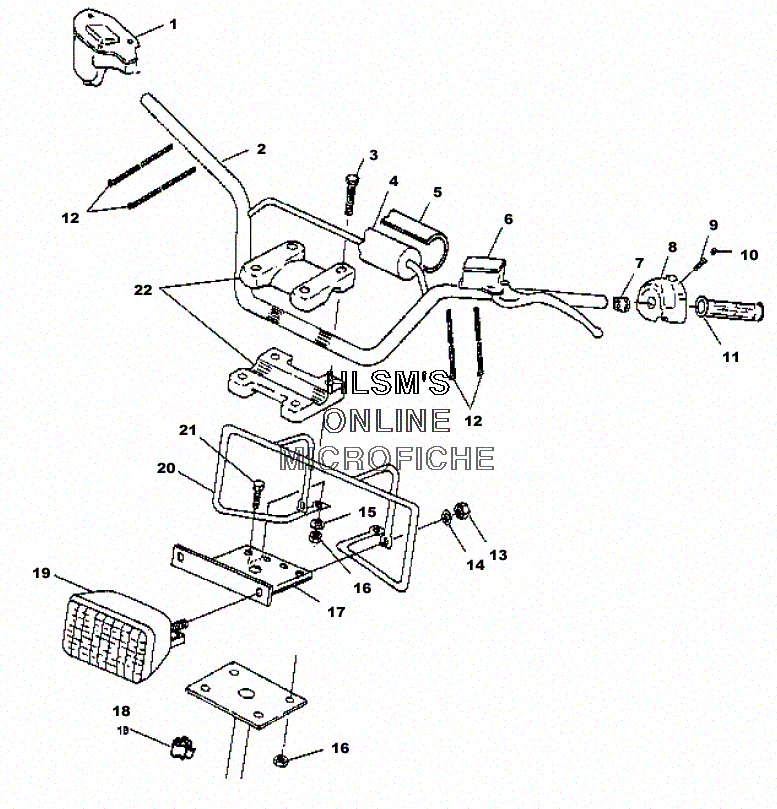

HANDLEBAR - HEADLIGHT для Polaris SCRAMBLER 400 4X4 (A02BG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
21820934-067 HANDLEBAR,BLACKHANDLEBAR,BLACK
-
37515189 SCREWSCREW
-
45521181 PAD, HANDLEBARPAD, HANDLEBAR
-
52682992 ASSY-COVER,PAD,HANDLEBAR (YELLOW)ASSY-COVER,PAD,HANDLEBAR (YELLOW)
-
75433903 SPACER-SWITCH,(LEFT),99SPACER-SWITCH,(LEFT),99
-
84010423 SWITCH-HANDLEBAR,HI/LO/OFF,2PSWITCH-HANDLEBAR,HI/LO/OFF,2P
-
97517625 SCREW,SETSCREW,SET
-
105432952 PLUG,HOLEPLUG,HOLE
-
115433834-070 GRIP-HNDLBAR,7/8 ID (BLACK)GRIP-HNDLBAR,7/8 ID (BLACK)
-
127080138 STRAP PANDUITSTRAP PANDUIT
-
137542324 NUTNUT
-
147558402 WASHER STEELWASHER STEEL
-
157558301 WASHERWASHER
-
167542122 NUT-LOCKNUT-LOCK
-
175241973-067 BRKT,H/L,BLACKBRKT,H/L,BLACK
-
187080631 CLIP,CABLE RETAIN,CLIP,CABLE RETAIN,
-
192431016 H/L ASSY,35/35W,BOTT.MT.H/L ASSY,35/35W,BOTT.MT.
-
194030061 BULB,H/L,30/30 W.BULB,H/L,30/30 W.
-
201040579-216 HEADLIGHT GUARD,SCR YLWHEADLIGHT GUARD,SCR YLW
-
217512240 BOLTBOLT
-
225630616-067 BLOCK,H'BAR RETAINER,BLACKBLOCK,H'BAR RETAINER,BLACK
-
222200774 KIT-HANDLE BAR BLOCK (INCL. 3,16,22)KIT-HANDLE BAR BLOCK (INCL. 3,16,22)
