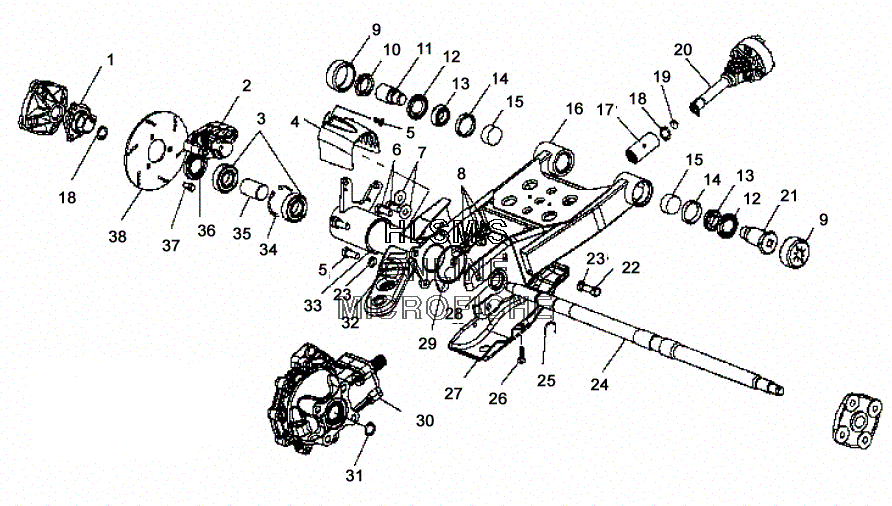

SUSPENSION - REAR SWING ARM W/ AXLE для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска`
-
№АртикулНазвание
-
15132152 HUB, BRAKE DISCHUB, BRAKE DISC
-
33513523 BEARING, BALL DOUBLE SEALBEARING, BALL DOUBLE SEAL
-
45411653 SHIELD, BRAKE LINE (REAR)SHIELD, BRAKE LINE (REAR)
-
57517604 BOLTBOLT
-
67512084 SCREWSCREW
-
77555721 WASHERWASHER
-
87542703 NUT, FLEXNUT, FLEX
-
95411532 CAP, SWINGARM PIVOTCAP, SWINGARM PIVOT
-
105131863 NUT, JAM SWING ARM PIVOTNUT, JAM SWING ARM PIVOT
-
115131864 PIVOT, SWINGARM THREADEDPIVOT, SWINGARM THREADED
-
123610072 SEAL, SWINGARM PIVOTSEAL, SWINGARM PIVOT
-
133554506 BEARING, TAPERED ROLL CONEBEARING, TAPERED ROLL CONE
-
143554507 BEARING, TAPERED ROLL CUPBEARING, TAPERED ROLL CUP
-
155411602 SEAL, SWING ARM PIVOTSEAL, SWING ARM PIVOT
-
161541577 SWINGARM, ASSY. (INCL. 14,15)SWINGARM, ASSY. (INCL. 14,15)
-
161541577 SWINGARM, ASSYSWINGARM, ASSY
-
175132201 COUPLING, PROP SHAFT GREASEDCOUPLING, PROP SHAFT GREASED
-
177080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
185411092 O-RINGO-RING
-
195812047 PAD, SHAFT (REAR)PAD, SHAFT (REAR)
-
201380154 SHAFT, PROP COUPLED (REAR)SHAFT, PROP COUPLED (REAR)
-
215132683 PIVOT, SWINGARM (RIGHT)PIVOT, SWINGARM (RIGHT)
-
227517585 BOLTBOLT
-
237553201 LOCK WASHERLOCK WASHER
-
245131862 AXLE (REAR)AXLE (REAR)
-
257710482 RING, RETAININGRING, RETAINING
-
267517612 SCREWSCREW
-
271012881 SKID PLATE (REAR)SKID PLATE (REAR)
-
275242851-067 PLATE, SKID (REAR) HOUSING (BLACK)PLATE, SKID (REAR) HOUSING (BLACK)
-
275811716 PAD, RUBBERPAD, RUBBER
-
285131930 COLLAR, AXLE LOCK (REAR)COLLAR, AXLE LOCK (REAR)
-
295411707 O-RINGO-RING
-
315411531 O-RINGO-RING
-
327072533 DECAL, HITCHDECAL, HITCH
-
331013193-067 AXLE TUBE, WELD (LEFT/BLACK)AXLE TUBE, WELD (LEFT/BLACK)
-
347710471 RING, RETAINER INT.RING, RETAINER INT.
-
355132075 SPACER, BEARINGSPACER, BEARING
-
363610071 SEAL, AXLE (REAR)SEAL, AXLE (REAR)
-
377515481 BOLTBOLT
-
385243678 DISC, BRAKEDISC, BRAKE
