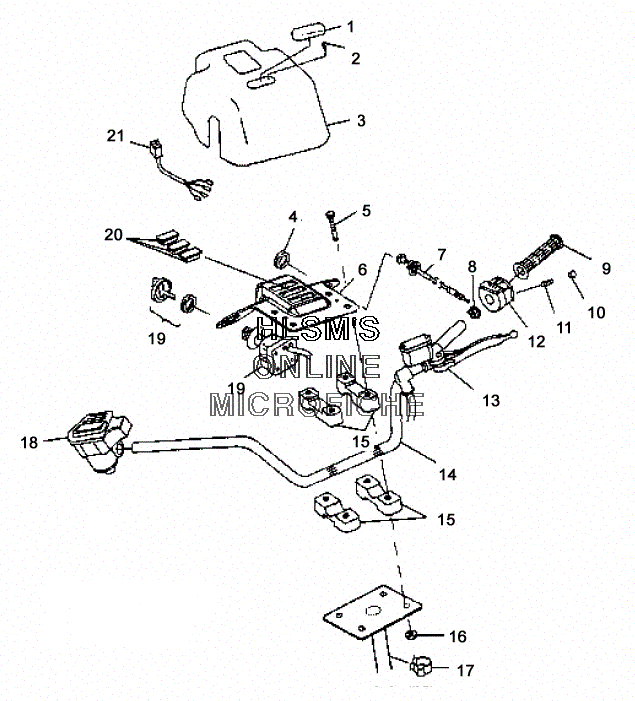

HANDLEBAR W/ HEADLIGHT для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска
-
№АртикулНазвание
-
15432247-070 COVER, LOGO (BLACK)COVER, LOGO (BLACK)
-
27512024 SCREWSCREW
-
35433842-070 PANEL, INSTRUMENT (BLACK)PANEL, INSTRUMENT (BLACK)
-
47080922 NUT, CHOKE (M24X1.5 THD) (M29 HEX)NUT, CHOKE (M24X1.5 THD) (M29 HEX)
-
57517216 SCREWSCREW
-
65244292-067 BRACKET, INSTRUMENT PANEL (BLACK)BRACKET, INSTRUMENT PANEL (BLACK)
-
77081008 CABLE, CHOKE FRICTION (40'')CABLE, CHOKE FRICTION (40'')
-
85433903 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
95433834-070 GRIP, HANDLEBAR (7/8 ID) (BLACK)GRIP, HANDLEBAR (7/8 ID) (BLACK)
-
105432952 PLUG, HOLEPLUG, HOLE
-
117517625 SCREW, SETSCREW, SET
-
124010422 SWITCH, HANDLEBAR HI/LO MODE (LEFT)SWITCH, HANDLEBAR HI/LO MODE (LEFT)
-
145224715-067 HANDLEBAR, TUBE (BLACK)HANDLEBAR, TUBE (BLACK)
-
155630629 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
167542122 NUT, LOCKNUT, LOCK
-
177080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
194010390 SWITCH, IGNITION KEYSTART (INCL. KEY)SWITCH, IGNITION KEYSTART (INCL. KEY)
-
194010278 KEY BLANK (6700AND6800 SERIES) SEE NOTE:KEY BLANK (6700AND6800 SERIES) SEE NOTE:
-
194010321 KEY BLANK (2700AND2800 SERIES) SEE NOTEKEY BLANK (2700AND2800 SERIES) SEE NOTE
-
195433733 NUT, IGNITION SWITCH HOBBSNUT, IGNITION SWITCH HOBBS
-
195433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
204040054 INDIC ''NEUT./REV.''INDIC ''NEUT./REV.''
-
204040053 INDIC ''HOT TEMPERATURE''INDIC ''HOT TEMPERATURE''
-
205430967 PLUG, INDICATOR HOLEPLUG, INDICATOR HOLE
-
212460728 HARNESS, HEADLIGHT PODHARNESS, HEADLIGHT POD
