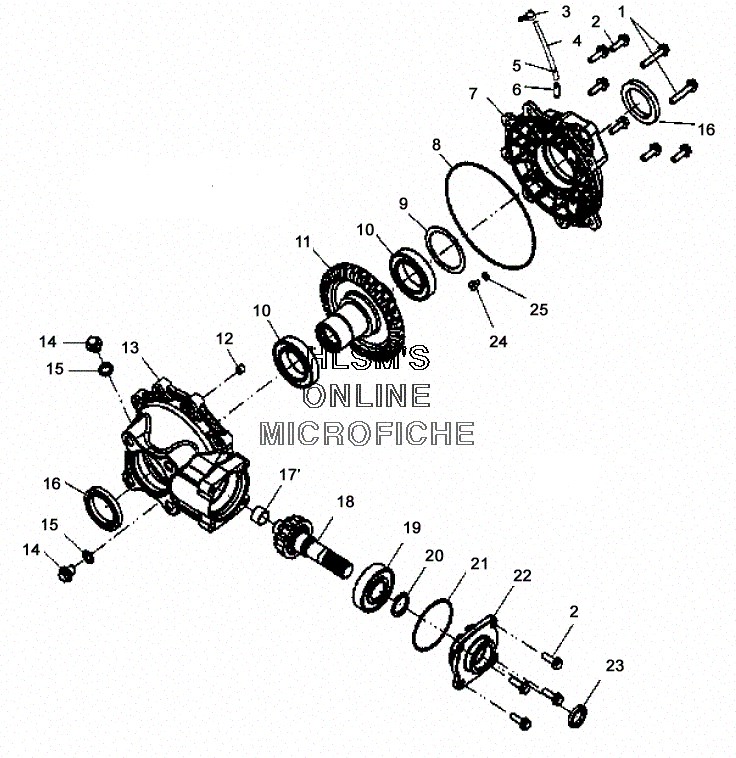

HOUSING - REAR W/ AXLE для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска`
-
№АртикулНазвание
-
1A1341342 GEARCASE, ASSY. (REAR) (INCL. 1,2,7-25)GEARCASE, ASSY. (REAR) (INCL. 1,2,7-25)
-
13233585 SCREWSCREW
-
23233252 SCREWSCREW
-
37670102 CLIP, SILENCERCLIP, SILENCER
-
48450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
57080307 CLAMPCLAMP
-
63233524 TUBE, VENTTUBE, VENT
-
73233753 COVER, OUTPUT HOUSING (REAR)COVER, OUTPUT HOUSING (REAR)
-
83233587 O-RING 166O-RING 166
-
93233581 SHIM 3.1 X 2.5 (OPT)SHIM 3.1 X 2.5 (OPT)
-
103233268 BEARING, BALLBEARING, BALL
-
113233740 GEAR (31 TEETH)GEAR (31 TEETH)
-
123233529 PIPE, KNOCKPIPE, KNOCK
-
133233739 GEARCASE, HOUSING (REAR)GEARCASE, HOUSING (REAR)
-
143233711 PLUG, OIL FILLPLUG, OIL FILL
-
153233324 WASHERWASHER
-
163233256 SEALSEAL
-
173233577 BUSHINGBUSHING
-
183233768 SHAFT, PINION (10 TEETH)SHAFT, PINION (10 TEETH)
-
193233714 BEARING, BALLBEARING, BALL
-
203233699 RING, RETAININGRING, RETAINING
-
213233588 O-RING 151O-RING 151
-
223233573 GEARCASE, COVERGEARCASE, COVER
-
233233319 SEALSEAL
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233583 SHIM .450 X .265 (OPT)SHIM .450 X .265 (OPT)
