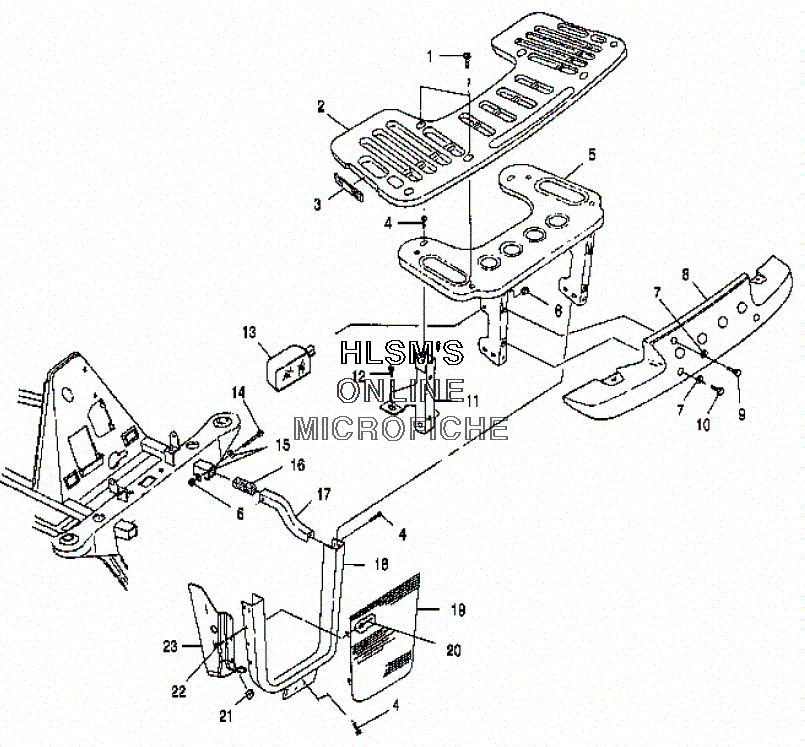

RACK AND BUMPER MOUNTING - FRONT для Polaris XPEDITION 325 (A01CK32AA) - 2001 года выпуска`
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK (FRONT/BLACK) (INCL. REF. 3 AND WARNING DECAL)RACK (FRONT/BLACK) (INCL. REF. 3 AND WARNING DECAL)
-
32670071 REFLECTOR, AMBERREFLECTOR, AMBER
-
47515399 SCREWSCREW
-
52200775 WELD, RACK SUPPORT (FRONT/BLACK)WELD, RACK SUPPORT (FRONT/BLACK)
-
67542324 NUTNUT
-
77555954 WASHERWASHER
-
85432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
97515391 BOLTBOLT
-
107515390 BOLTBOLT
-
111013210-067 SUPPORT, RACK (FRONT/LEFT/BLACK)SUPPORT, RACK (FRONT/LEFT/BLACK)
-
111013211-067 SUPPORT, RACK (FRONT/RIGHT/BLACK)SUPPORT, RACK (FRONT/RIGHT/BLACK)
-
127517386 SCREWSCREW
-
132431011 H/L ASSY., 30/30W (LEFT)H/L ASSY., 30/30W (LEFT)
-
132431012 H/L ASSY., 30/30W (RIGHT)H/L ASSY., 30/30W (RIGHT)
-
134030059 BULB, H/L 27W. HOBBSBULB, H/L 27W. HOBBS
-
147515382 BOLTBOLT
-
157558402 WASHER, STEELWASHER, STEEL
-
165810467 PLUG, FRAMEPLUG, FRAME
-
175244623-067 EXTENSION, FRAME (LEFT/BLACK)EXTENSION, FRAME (LEFT/BLACK)
-
175244624-067 EXTENSION, FRAME (RIGHT/BLACK)EXTENSION, FRAME (RIGHT/BLACK)
-
185241583-067 WELD, BRUSH GUARD (BLACK)WELD, BRUSH GUARD (BLACK)
-
195240591-067 GRILL, BRUSHGUARD (BLACK)GRILL, BRUSHGUARD (BLACK)
-
207621330 RIVET, POPRIVET, POP
-
217670094 NUTNUT
-
227512097 SCREWSCREW
-
235431814 SHIELD, RADIATOR (LEFT)SHIELD, RADIATOR (LEFT)
-
235431815 SHIELD, RADIATOR (RIGHT)SHIELD, RADIATOR (RIGHT)
