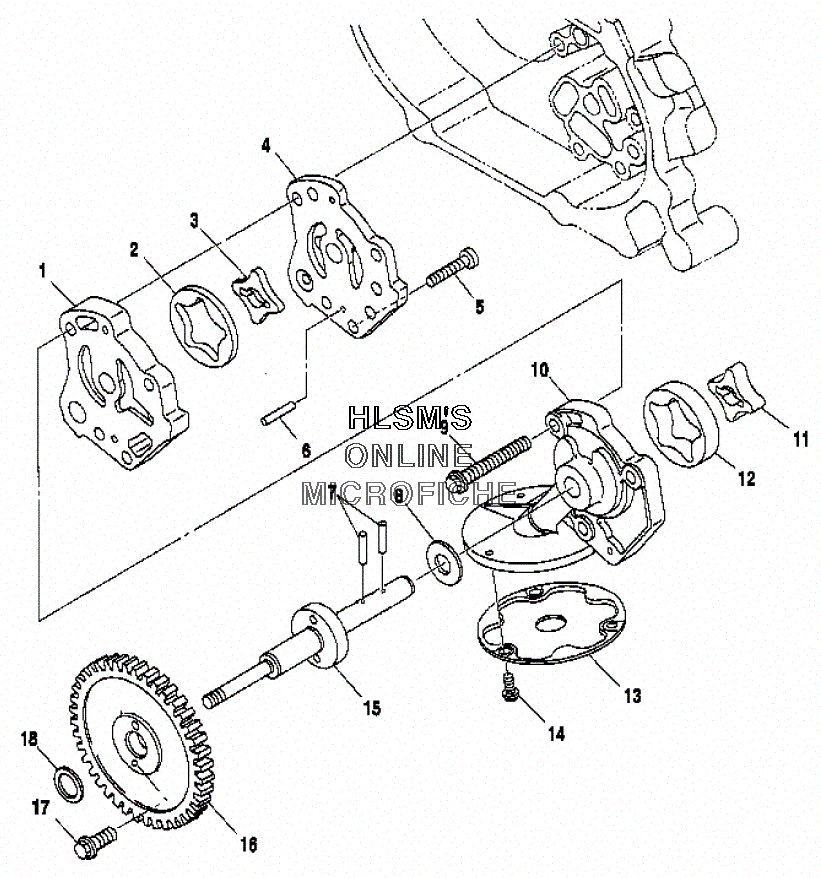

OIL PUMP для Polaris SCRAMBLER 500 4X4 (A01BG50AB) (BLACK/SCR (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3084946 CASE #2, OILPUMP
    CASE #2, OILPUMP
  • 2
    3084949 ROTOR, FEED (OUTER)
    ROTOR, FEED (OUTER)
  • 3
    3084948 ROTOR, FEED (INNER)
    ROTOR, FEED (INNER)
  • 4
    3085817 PUMP ASSY., OIL (INCL. 1-8,10-15)
    PUMP ASSY., OIL (INCL. 1-8,10-15)
  • 4
    3084945 CASE #1, OILPUMP
    CASE #1, OILPUMP
  • 5
    3085535 SCREW
    SCREW
  • 6
    3084955 PIN, DOWEL
    PIN, DOWEL
  • 7
    3084954 PIN, DOWEL
    PIN, DOWEL
  • 8
    3084953 WASHER
    WASHER
  • 9
    3084962 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 10
    3084947 CASE #3, OILPUMP
    CASE #3, OILPUMP
  • 11
    3084950 ROTOR, SCAV (INNER)
    ROTOR, SCAV (INNER)
  • 12
    3084951 ROTOR (OUTER)
    ROTOR (OUTER)
  • 13
    3084956 STRAINER UNIT, OIL
    STRAINER UNIT, OIL
  • 14
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 15
    3085818 SHAFT (PUMP)
    SHAFT (PUMP)
  • 16
    3085859 PUMP GEAR (2)
    PUMP GEAR (2)
  • 17
    3085820 BOLT, FLANGE
    BOLT, FLANGE
  • 18
    3084959 SPACER (0.8) (OPT)
    SPACER (0.8) (OPT)
  • 18
    3084960 SPACER (1.0) (OPT)
    SPACER (1.0) (OPT)
  • 18
    3084961 SPACER (1.2) (OPT)
    SPACER (1.2) (OPT)
