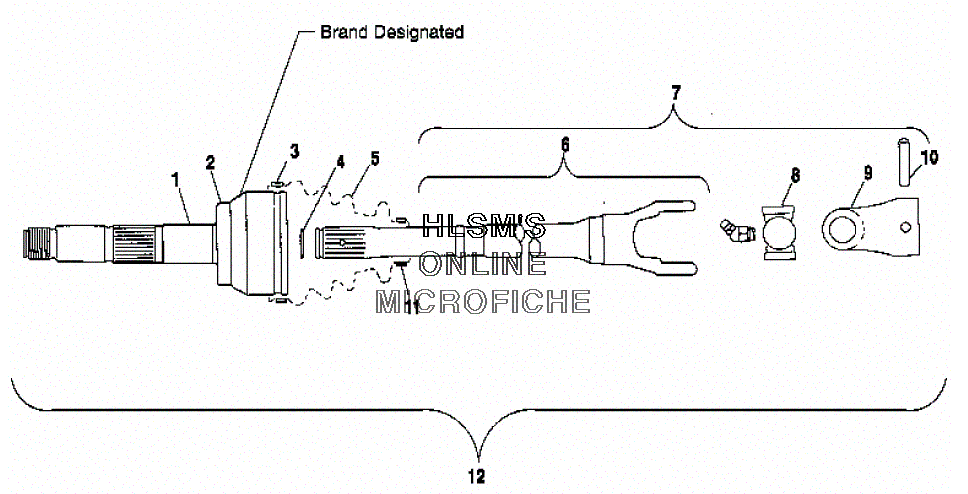

CV JOINT - NEAPCO для Polaris SCRAMBLER 500 4X4 (A01BG50AB) (BLACK/SCR (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 0
    1380118 HOUSING ASSY., CV NEA W/SLV (INCL. 1)
    HOUSING ASSY., CV NEA W/SLV (INCL. 1)
  • 2
    5222299 SLEEVE, SEAL
    SLEEVE, SEAL
  • 3
    3260121 CLAMP, BAND
    CLAMP, BAND
  • 4
    7670092 CIRCLIP, DRIVESHAFT NEAPCO
    CIRCLIP, DRIVESHAFT NEAPCO
  • 5
    2201015 BOOT REPLACEMENT, KIT
    BOOT REPLACEMENT, KIT
  • 6
    1380060 SHAFT, WELD (INCL. 4)
    SHAFT, WELD (INCL. 4)
  • 7
    1380061 CARDAN WELD (INCL. 4,6,8,9)
    CARDAN WELD (INCL. 4,6,8,9)
  • 8
    3260104 CROSS AND BEARING, KIT
    CROSS AND BEARING, KIT
  • 9
    3260101 YOKE
    YOKE
  • 10
    7661913 PIN, SPRING
    PIN, SPRING
  • 11
    3260123 CLAMP, BAND
    CLAMP, BAND
  • 12
    2200960 DRIVESHAFT, W/SLV NEA KIT
    DRIVESHAFT, W/SLV NEA KIT
