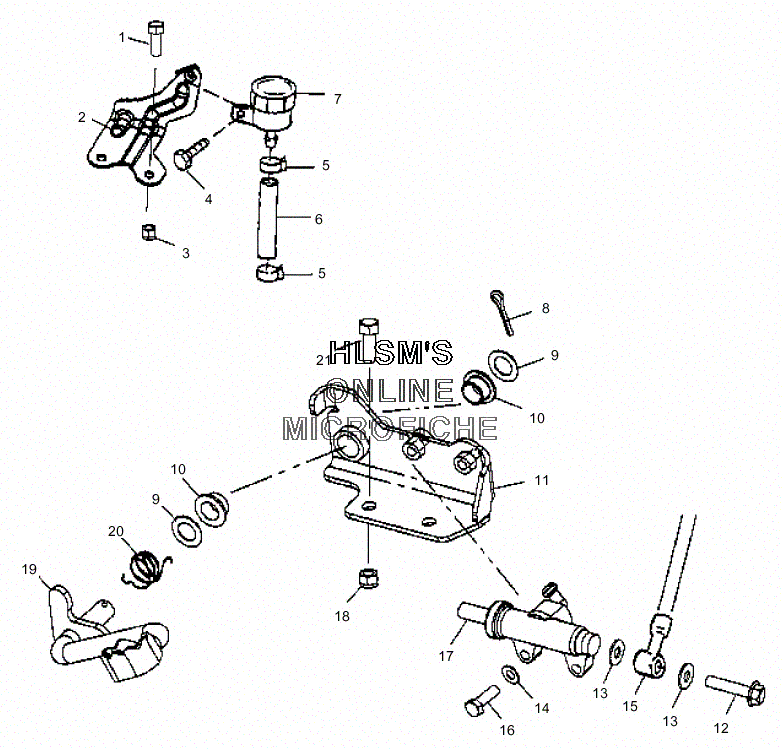

BRAKE - REAR MASTER CYLINDER для Polaris SCRAMBLER 500 4X4 (A01BG50AB) (BLACK/SCR (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512113 SCREW
    SCREW
  • 2
    5244091-067 BRACKET, RESERVOIR MOUNNT (BLACK)
    BRACKET, RESERVOIR MOUNNT (BLACK)
  • 3
    7542122 NUT, LOCK
    NUT, LOCK
  • 4
    7512208 SCREW
    SCREW
  • 5
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    1910404 HOSE, RESERVOIR
    HOSE, RESERVOIR
  • 7
    1930854 RESERVOIR ASSY., BRAKE (REAR)
    RESERVOIR ASSY., BRAKE (REAR)
  • 8
    7661401 COTTER PIN
    COTTER PIN
  • 9
    7555919 WASHER
    WASHER
  • 10
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 11
    1910375-067 MOUNT, BRAKE CDS (BLACK)
    MOUNT, BRAKE CDS (BLACK)
  • 12
    1910499 BOLT, BANJO
    BOLT, BANJO
  • 13
    5410988 SEAL
    SEAL
  • 14
    7558301 WASHER
    WASHER
  • 16
    7515179 SCREW
    SCREW
  • 17
    1910311 BRAKE MASTER CYLINDER, FOOT BANJO
    BRAKE MASTER CYLINDER, FOOT BANJO
  • 18
    7542324 NUT
    NUT
  • 19
    1910377-067 BRAKE ROD, CDS (GEN 3/BLACK)
    BRAKE ROD, CDS (GEN 3/BLACK)
  • 20
    7041750 SPRING, TORSION BRAKE
    SPRING, TORSION BRAKE
  • 21
    7515321 BOLT
    BOLT
