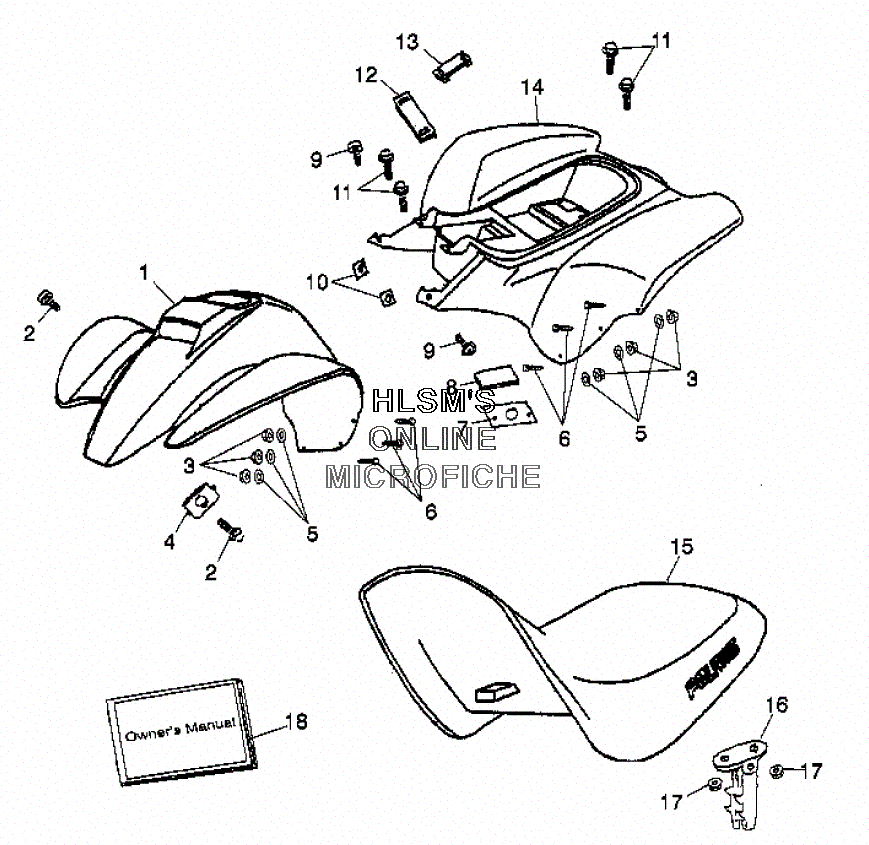

FENDER - FRONT AND REAR W/ SEAT для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска`
-
№АртикулНазвание
-
10450619 FENDER (FRONT)FENDER (FRONT)
-
20450824 BOLT, WITH WASHER HEXAGONBOLT, WITH WASHER HEXAGON
-
30450741 NUT, LOCKNUT, LOCK
-
40450353 PLATE, FIXEDPLATE, FIXED
-
50450710 WASHER, PLAINWASHER, PLAIN
-
60450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
70450345 PAD, PROTECTORPAD, PROTECTOR
-
80450346 RUBBER, BATTERYRUBBER, BATTERY
-
90450297 BOLT, PANBOLT, PAN
-
100450342 NUT, U, PLATENUT, U, PLATE
-
110450340 BOLT, HEXAGONBOLT, HEXAGON
-
120450897 STRAP BATTERYSTRAP BATTERY
-
130450898 STRAP TOOL BOXSTRAP TOOL BOX
-
140450620 FENDER (REAR)FENDER (REAR)
-
150450355 SEAT, ASSY.SEAT, ASSY.
-
160450356 HOOK, SEATHOOK, SEAT
-
170450880 NUT, FLG W/SERR.NUT, FLG W/SERR.
-
189916424 MANUAL, OWNERSMANUAL, OWNERS
