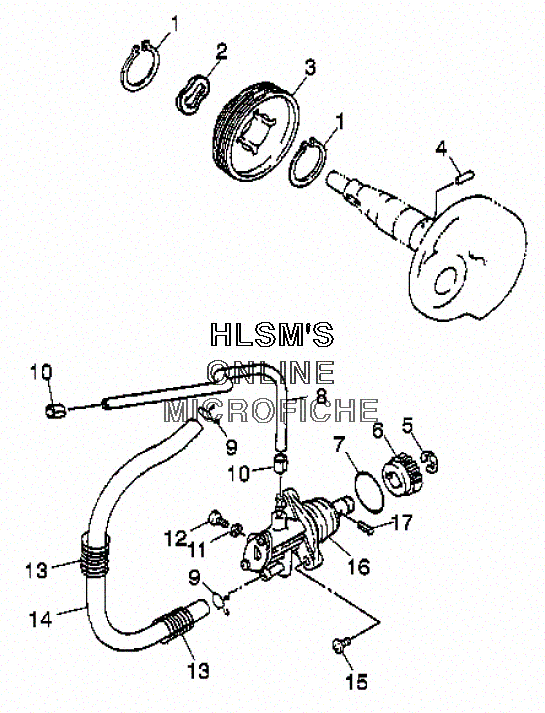

OIL PUMP для Polaris SCRAMBLER 50 (A01EA05CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0450060 CIRCLIP, EXTERNAL
    CIRCLIP, EXTERNAL
  • 2
    0450655 WASHER, WAVE
    WASHER, WAVE
  • 3
    0450058 GEAR, DRIVE OIL PUMP
    GEAR, DRIVE OIL PUMP
  • 4
    0450059 PIN, DOWEL
    PIN, DOWEL
  • 5
    0450052 CIRCLIP, EXTERNAL
    CIRCLIP, EXTERNAL
  • 6
    0450049 WORMWHEEL, OIL PUMP
    WORMWHEEL, OIL PUMP
  • 7
    0450047 O-RING
    O-RING
  • 8
    0450055 TUBE, OIL
    TUBE, OIL
  • 9
    0450054 CLIP
    CLIP
  • 10
    0450056 CLIP
    CLIP
  • 11
    0450046 WASHER
    WASHER
  • 12
    0450884 BOLT, PHILLIPS
    BOLT, PHILLIPS
  • 13
    0450061 SPRING, PROTECEIVE OIL PIPE
    SPRING, PROTECEIVE OIL PIPE
  • 14
    0450053 TUBE, OIL
    TUBE, OIL
  • 15
    0450057 BOLT, PAN PHILLIPS
    BOLT, PAN PHILLIPS
  • 16
    0450817 OIL PUMP ASSY. (INCL. 5,6,7,8,9,10,11,12,13,14,17)
    OIL PUMP ASSY. (INCL. 5,6,7,8,9,10,11,12,13,14,17)
  • 17
    0450051 PIN, SHAFT
    PIN, SHAFT
