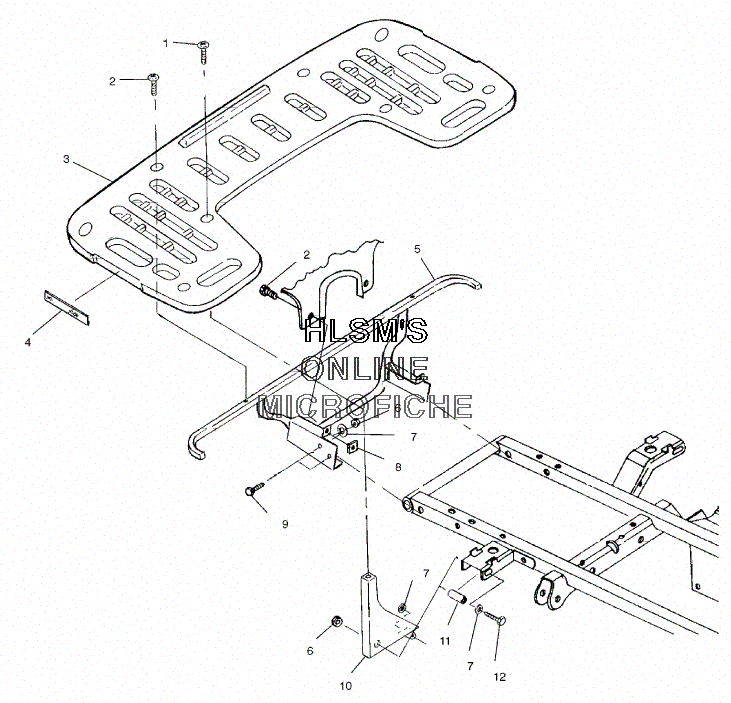

RACK AND BUMPER MOUNTING - REAR для Polaris MAGNUM 500 HDS (A01CD50FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
17517686 SCREWSCREW
-
27517685 SCREWSCREW
-
32670174-070 RACK ASSY., REAR (BLACK) (INCL. REF. 4 AND WARNING DECAL)RACK ASSY., REAR (BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
42670070 REFLECTOR (RED)REFLECTOR (RED)
-
51040490-067 SUPPORT, REAR RACK (500/BLACK)SUPPORT, REAR RACK (500/BLACK)
-
67542324 NUTNUT
-
77558402 WASHER, STEELWASHER, STEEL
-
87670096 NUTNUT
-
97512329 BOLTBOLT
-
101040524-067 MOUNT, FRONT REAR RACK (LEFT/BLACK)MOUNT, FRONT REAR RACK (LEFT/BLACK)
-
101040525-067 MOUNT, FRONT REAR RACK (RIGHT/BLACK)MOUNT, FRONT REAR RACK (RIGHT/BLACK)
-
115333332-067 SPACERSPACER
-
127515385 SCREWSCREW
