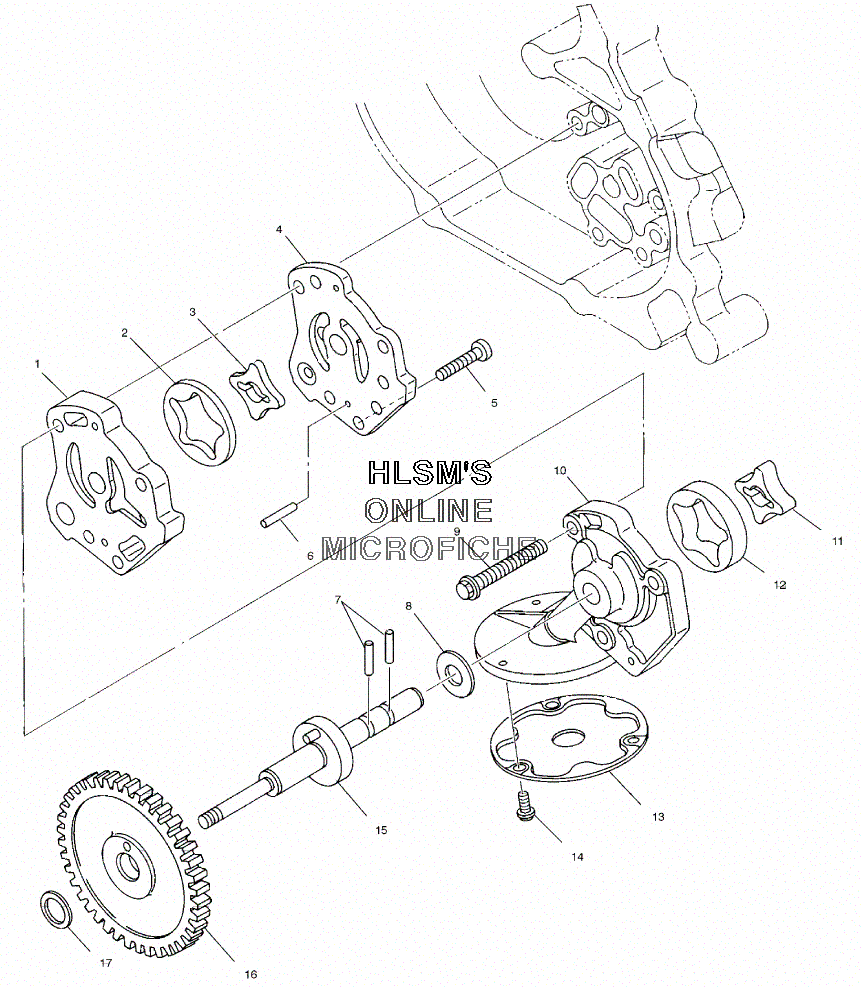

OIL PUMP для Polaris MAGNUM 500 HDS (A01CD50FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2, OILPUMPCASE #2, OILPUMP
-
23084949 ROTOR, OUTER, FEEDROTOR, OUTER, FEED
-
33084948 ROTOR, INNER, FEEDROTOR, INNER, FEED
-
43084944 PUMP, OIL (INCL. 1-8,10-15)PUMP, OIL (INCL. 1-8,10-15)
-
43084945 CASE #1, OILPUMPCASE #1, OILPUMP
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103084947 CASE #3, OILPUMPCASE #3, OILPUMP
-
113084950 ROTOR, INNER, SCAV.ROTOR, INNER, SCAV.
-
123084951 ROTOR, OUTERROTOR, OUTER
-
133084956 STRAINER UNIT, OILSTRAINER UNIT, OIL
-
143084205 SCREW AND WASHERSCREW AND WASHER
-
153084952 SHAFT, PUMPSHAFT, PUMP
-
163084958 GEAR 2, PUMPGEAR 2, PUMP
-
173084959 SPACER (0.8) (OPT)SPACER (0.8) (OPT)
-
173084960 SPACER (1.0) (OPT)SPACER (1.0) (OPT)
-
173084961 SPACER (1.2) (OPT)SPACER (1.2) (OPT)
