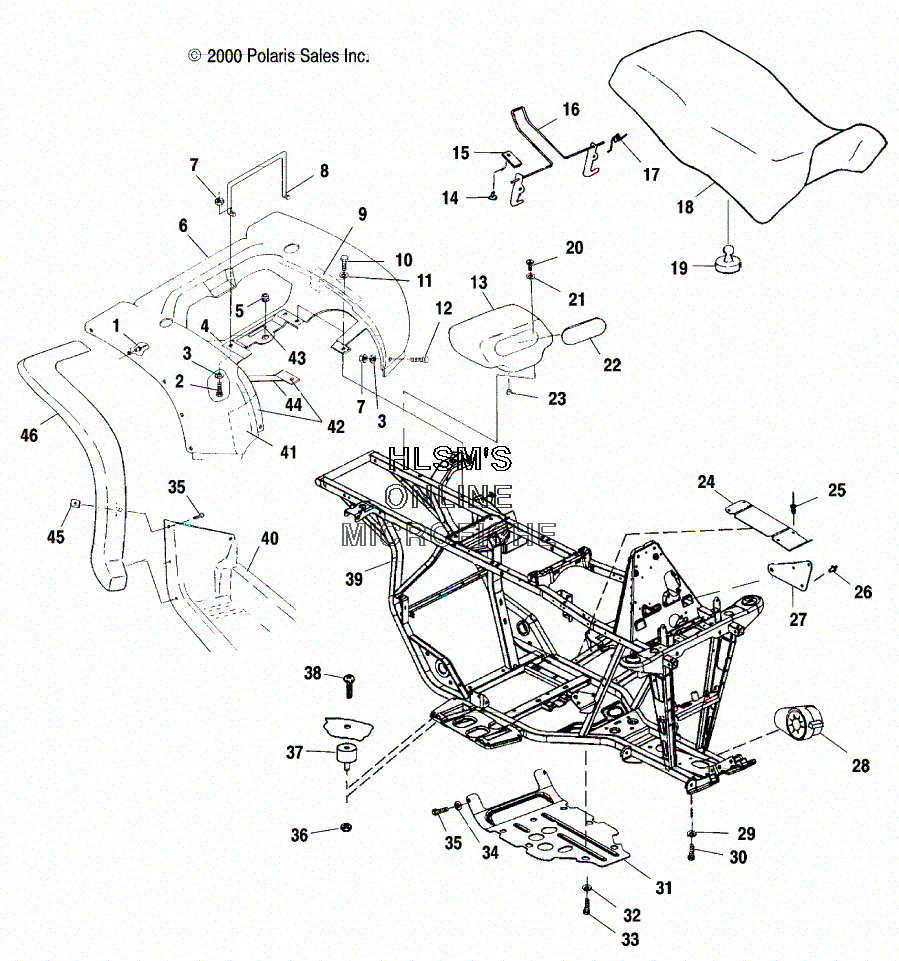

FENDER - REAR W/ SEAT для Polaris MAGNUM 500 HDS (A01CD50FB) (GUN METAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • 2
    7511930 SCREW
    SCREW
  • 3
    7555792 WASHER
    WASHER
  • 4
    5811107 FOIL, REAR FENDER REAR
    FOIL, REAR FENDER REAR
  • 5
    5411042 GROMMET
    GROMMET
  • 6
    5432117-317 FENDER, REAR GEN 4 GUN METAL
    FENDER, REAR GEN 4 GUN METAL
  • 7
    7541925 NUT
    NUT
  • 8
    5224592 RETAINER, SEAT LATCH
    RETAINER, SEAT LATCH
  • 9
    5811308 FOIL, TAPE (3 X 12)
    FOIL, TAPE (3 X 12)
  • 10
    7512242 SCREW
    SCREW
  • 11
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 12
    7512085 SCREW
    SCREW
  • 13
    5431786 TOOLBOX
    TOOLBOX
  • 14
    7621403 BLIND RIVET
    BLIND RIVET
  • 15
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 16
    1040387 LATCH, SEAT
    LATCH, SEAT
  • 17
    7041370 SPRING, LATCH
    SPRING, LATCH
  • 18
    2682441-070 SEAT (BLACK)
    SEAT (BLACK)
  • 18
    2681747-070 COVER, SEAT (BLACK)
    COVER, SEAT (BLACK)
  • 18
    5811104 FOIL, SEATBASE LARGE
    FOIL, SEATBASE LARGE
  • 18
    5811105 FOIL, SEATBASE SMALL
    FOIL, SEATBASE SMALL
  • 19
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 20
    7517599 BOLT/WASHER .88
    BOLT/WASHER .88
  • 21
    7555748 WASHER
    WASHER
  • 22
    5431787 COVER, TOOLBOX
    COVER, TOOLBOX
  • 23
    5410896 CAP, DRAIN
    CAP, DRAIN
  • 24
    5243188-067 GUARD, CLUTCH (BLACK)
    GUARD, CLUTCH (BLACK)
  • 25
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 26
    7621509 RIVET, PLASTI-LOC.
    RIVET, PLASTI-LOC.
  • 27
    5243829-067 STRAP, FUEL PUMP MOUNTING (BLACK)
    STRAP, FUEL PUMP MOUNTING (BLACK)
  • 29
    7552603 WASHER
    WASHER
  • 30
    7512492 SCREW
    SCREW
  • 31
    5433435 GUARD, ROCK
    GUARD, ROCK
  • 32
    7556065 WASHER, SKID PLATE
    WASHER, SKID PLATE
  • 33
    7517386 SCREW
    SCREW
  • 34
    7558301 WASHER
    WASHER
  • 35
    7512232 BOLT
    BOLT
  • 36
    7542122 NUT, LOCK
    NUT, LOCK
  • 37
    5411548 MOUNT, RUBBER
    MOUNT, RUBBER
  • 38
    7517264 SCREW
    SCREW
  • 39
    1013263-067 FRAME, MAIN 4X4 MAG (BLACK)
    FRAME, MAIN 4X4 MAG (BLACK)
  • 40
    5432221-070 FOOTWELL, LEFT HAND (BLACK/NYLON)
    FOOTWELL, LEFT HAND (BLACK/NYLON)
  • 40
    5433195-070 FOOTWELL, RIGHT HAND (BLACK/NYLON)
    FOOTWELL, RIGHT HAND (BLACK/NYLON)
  • 41
    5811111 FOIL, FOAM
    FOIL, FOAM
  • 42
    5811106 FOIL, FRONT REAR FENDER
    FOIL, FRONT REAR FENDER
  • 43
    7079902 DECAL, 4 STRK CARB/FILTER INFO
    DECAL, 4 STRK CARB/FILTER INFO
  • 44
    5811087 FOIL, FOAM (6X1)
    FOIL, FOAM (6X1)
  • 45
    7670057 NUT, SPEEDOMETER
    NUT, SPEEDOMETER
  • 46
    2873213 WASHER, NYLON
    WASHER, NYLON
