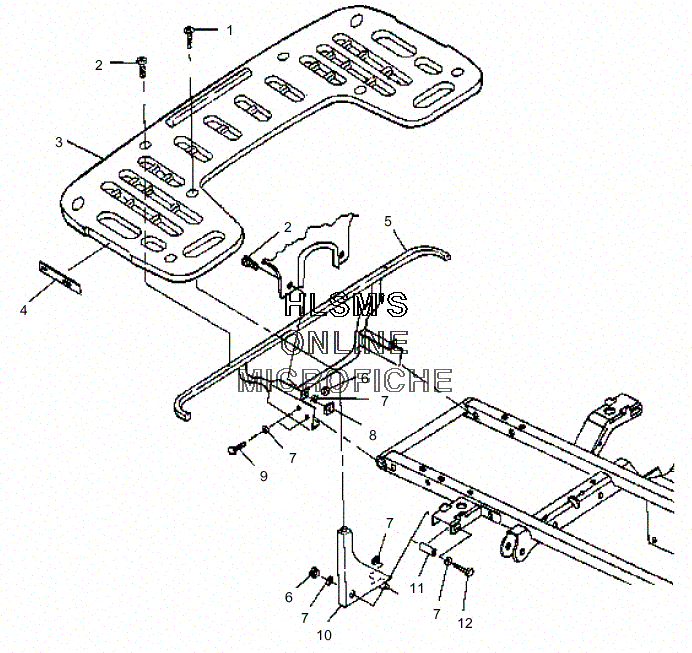

RACK AND BUMPER MOUNTING - REAR для Polaris MAGNUM 325 2X4 (A01CB32AA) - 2001 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
27517686 SCREWSCREW
-
32670174 ASSY., RACK (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)ASSY., RACK (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
42670070 REFLECTOR (RED)REFLECTOR (RED)
-
51040490-067 SUPPORT, RACK (REAR/BLACK)SUPPORT, RACK (REAR/BLACK)
-
67542324 NUTNUT
-
77558402 WASHER, STEELWASHER, STEEL
-
87670096 NUTNUT
-
97512329 BOLTBOLT
-
101040524-067 MOUNT, RACK (LEFT/FRONT/REAR/BLACK)MOUNT, RACK (LEFT/FRONT/REAR/BLACK)
-
101040525-067 MOUNT, RACK (RIGHT/FRONT/REAR/BLACK)MOUNT, RACK (RIGHT/FRONT/REAR/BLACK)
-
115333332-067 SPACERSPACER
-
127515385 SCREWSCREW
