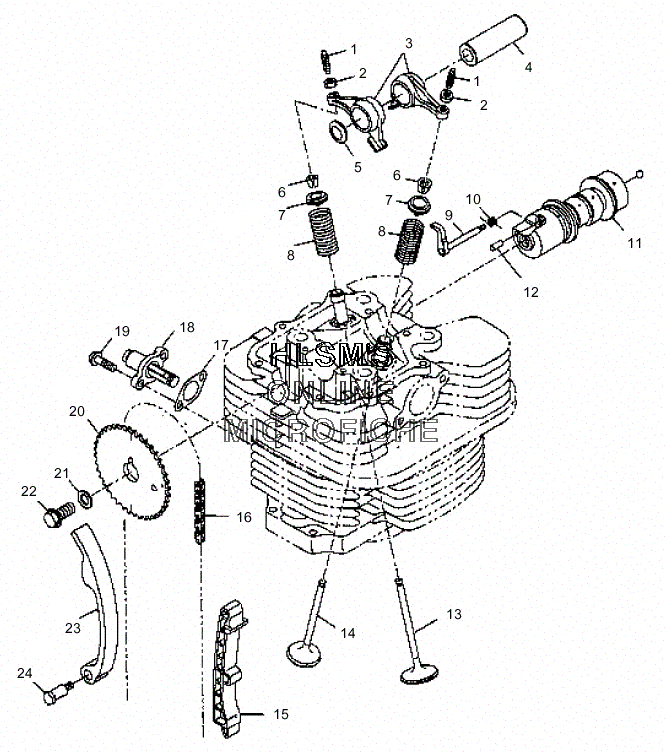

CAMSHAFT W/ VALVE ASSY. для Polaris MAGNUM 325 2X4 (A01CB32AA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3084911 SCREW, ADJUST
    SCREW, ADJUST
  • 2
    3084912 NUT
    NUT
  • 3
    3084910 ROCKERARM ASSY., INTAKE (INCL. 1,2)
    ROCKERARM ASSY., INTAKE (INCL. 1,2)
  • 4
    3087053 SHAFT, ROCKER
    SHAFT, ROCKER
  • 5
    3085836 WASHER, WAVE
    WASHER, WAVE
  • 6
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 7
    3086893 RETAINER, VAVLE SPRING
    RETAINER, VAVLE SPRING
  • 8
    3086892 SPRING, VALVE
    SPRING, VALVE
  • 9
    3086439 LEVER, RELEASE
    LEVER, RELEASE
  • 10
    3086804 SPRING, RETURN
    SPRING, RETURN
  • 11
    3087120 CAMSHAFT (INCL. 9,10,12)
    CAMSHAFT (INCL. 9,10,12)
  • 12
    3084899 PIN, DOWEL
    PIN, DOWEL
  • 13
    3085778 VALVE, INTAKE
    VALVE, INTAKE
  • 14
    3086441 VALVE, EXHAUST
    VALVE, EXHAUST
  • 15
    3086445 GUIDE, CHAIN
    GUIDE, CHAIN
  • 16
    3086444 CHAIN, TIMING
    CHAIN, TIMING
  • 17
    3086448 GASKET, TENSIONER
    GASKET, TENSIONER
  • 18
    3086493 TENSIONER, ASSY.
    TENSIONER, ASSY.
  • 19
    3083361 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 20
    3086443 SPROCKET 2
    SPROCKET 2
  • 21
    3083663 WASHER
    WASHER
  • 22
    3086449 BOLT, FLANGE
    BOLT, FLANGE
  • 23
    3086446 LEVER, COMPLETE
    LEVER, COMPLETE
  • 24
    3084924 BOLT, PIVOT LEVER
    BOLT, PIVOT LEVER
