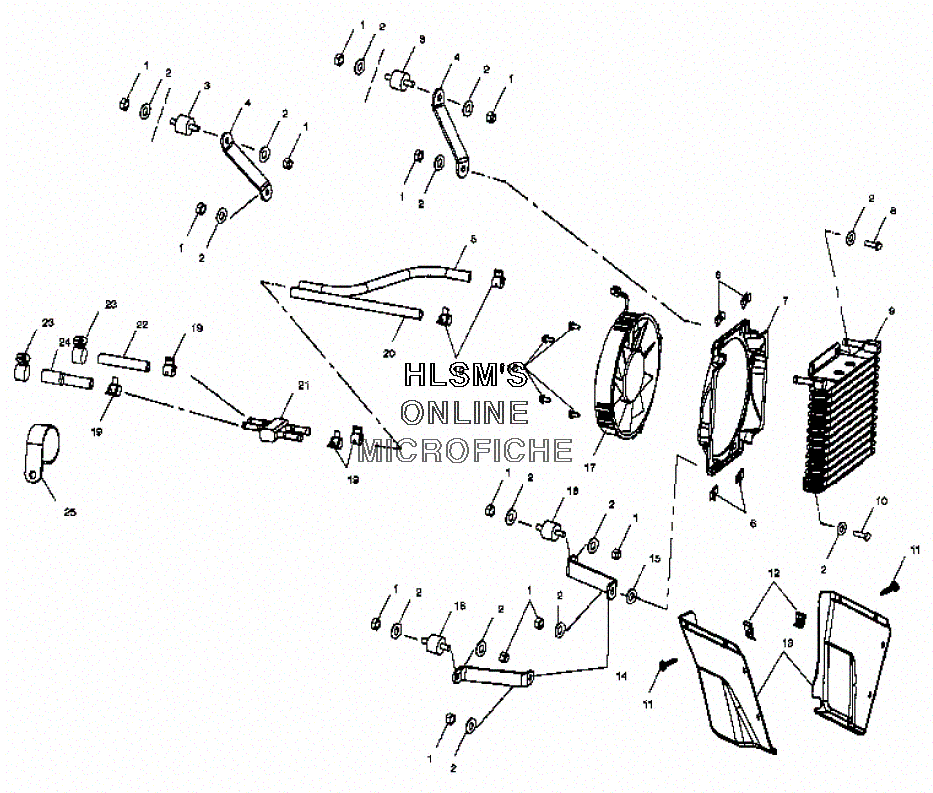

OIL COOLING (IF BUILT BEFORE 1/01/00) для Polaris TRAIL BOSS (A00AA32AA) (WHITE) - 2000 года выпуска`
-
№АртикулНазвание
-
17542122 NUT, LOCKNUT, LOCK
-
27558301 WASHERWASHER
-
33110032 MOUNT, RUBBERMOUNT, RUBBER
-
45242924-067 BRACKET, COOLING FAN (BLACK)BRACKET, COOLING FAN (BLACK)
-
55411696 COOLER HOSE KIT, REMOTE VALVECOOLER HOSE KIT, REMOTE VALVE
-
67670111 CLIP, U/ZYCLIP, U/ZY
-
75433353 SHROUD, FANSHROUD, FAN
-
87512240 BOLTBOLT
-
91240039 COOLER, OILCOOLER, OIL
-
107515184 BOLTBOLT
-
117517561 SCREWSCREW
-
127670112 NUTNUT
-
135433370 SHROUD, OIL COOLER (LEFT) (BUILT BEFORE 1/01/00)SHROUD, OIL COOLER (LEFT) (BUILT BEFORE 1/01/00)
-
135433789 SHROUD, OIL COOLER (LEFT) (BUILT AFTER 1/01/00)SHROUD, OIL COOLER (LEFT) (BUILT AFTER 1/01/00)
-
135433371 SHROUD, OIL COOLER (RIGHT) (BUILT BEFORE 1/01/00)SHROUD, OIL COOLER (RIGHT) (BUILT BEFORE 1/01/00)
-
135433790 SHROUD, OIL COOLER (RIGHT) (BUILT AFTER 1/01/00)SHROUD, OIL COOLER (RIGHT) (BUILT AFTER 1/01/00)
-
145242983-067 MOUNT, OIL COOLER (LOWER/BLACK)MOUNT, OIL COOLER (LOWER/BLACK)
-
157556095 WASHERWASHER
-
163110050 MOUNT, CARBURETORMOUNT, CARBURETOR
-
172410157 FAN, MOTORFAN, MOTOR
-
187517659 SCREWSCREW
-
197080771 CLAMP, WIRECLAMP, WIRE
-
205411695 COOLER HOSE KIT, REMOTE VALVECOOLER HOSE KIT, REMOTE VALVE
-
211240040 VALVE, THERMOVALVE, THERMO
-
225411697 COOLER HOSE KIT, REMOTE VALVECOOLER HOSE KIT, REMOTE VALVE
-
237080474 CLAMP, HOSECLAMP, HOSE
-
245411698 COOLER HOSE KIT, REMOTE VALVECOOLER HOSE KIT, REMOTE VALVE
-
257080869 CLAMP, CUSHIONED (1.25'' I.D.)CLAMP, CUSHIONED (1.25'' I.D.)
