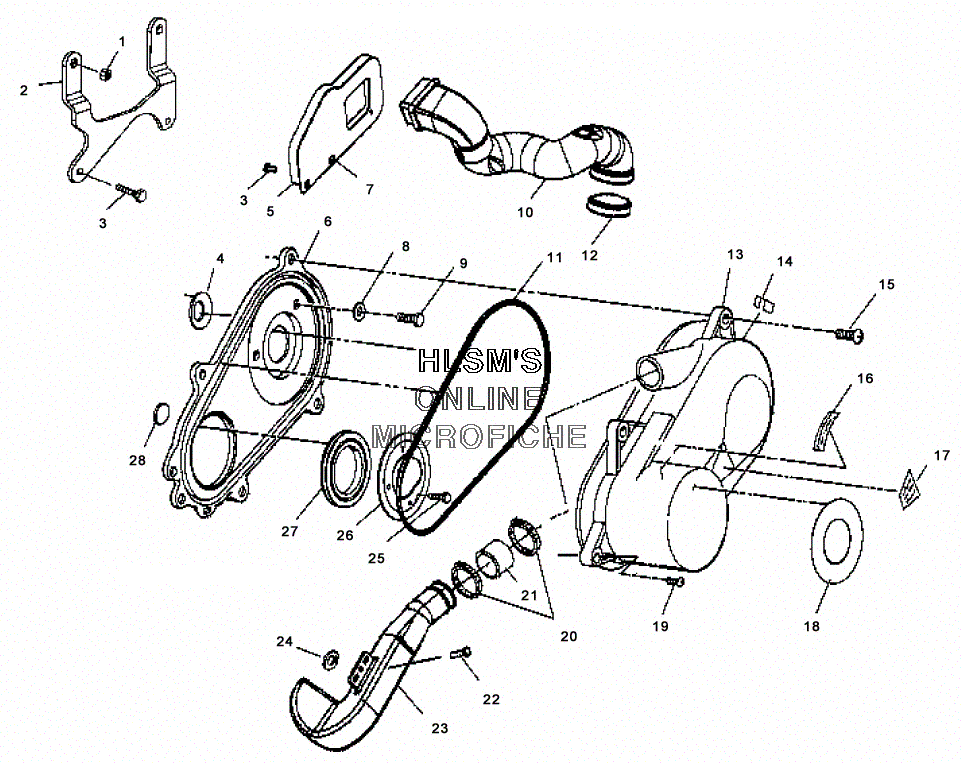

CLUTCH COVER для Polaris TRAIL BOSS (A00AA32AA) (WHITE) - 2000 года выпуска`
-
№АртикулНазвание
-
17547067 NUTSERT, HEXAGONNUTSERT, HEXAGON
-
25242208-067 BRACKET, CLUTCH (LOWER/BLACK)BRACKET, CLUTCH (LOWER/BLACK)
-
37512232 BOLTBOLT
-
45410489 SEAL, COVER CASESEAL, COVER CASE
-
55811827 SHIELD ASSY., CLUTCH AIR INLETSHIELD ASSY., CLUTCH AIR INLET
-
62201160 COVER, CLUTCH INNER SERVICE KIT (INCL. 15,19,27)COVER, CLUTCH INNER SERVICE KIT (INCL. 15,19,27)
-
75811828 SHIELD, CLUTCH AIR INLETSHIELD, CLUTCH AIR INLET
-
87555748 WASHERWASHER
-
97512278 BOLTBOLT
-
105433402 DUCT, INLETDUCT, INLET
-
115521301 SEAL, CLUTCH COVERSEAL, CLUTCH COVER
-
127080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
135431961 COVER, CLUTCH (FRONT)COVER, CLUTCH (FRONT)
-
147670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
157512093 SCREWSCREW
-
167074946 DECALDECAL
-
177077377 DECALDECAL
-
187074782 DECAL, AUTO. TRANSMISSIONDECAL, AUTO. TRANSMISSION
-
197512094 SCREWSCREW
-
207080492 STRAP, WEATHER RESISTANT (BLACK)STRAP, WEATHER RESISTANT (BLACK)
-
215410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
227515194 SCREWSCREW
-
235431671 DUCT, AIR OUTLET CLUTCHDUCT, AIR OUTLET CLUTCH
-
247556091 SPACERSPACER
-
253084205 SCREW AND WASHERSCREW AND WASHER
-
265240409-067 BRACKET, CLUTCH SEALBRACKET, CLUTCH SEAL
-
275410575 SEAL, COVER CASESEAL, COVER CASE
-
285411795 STOPPER, CLUTCH COVER (INNER)STOPPER, CLUTCH COVER (INNER)
