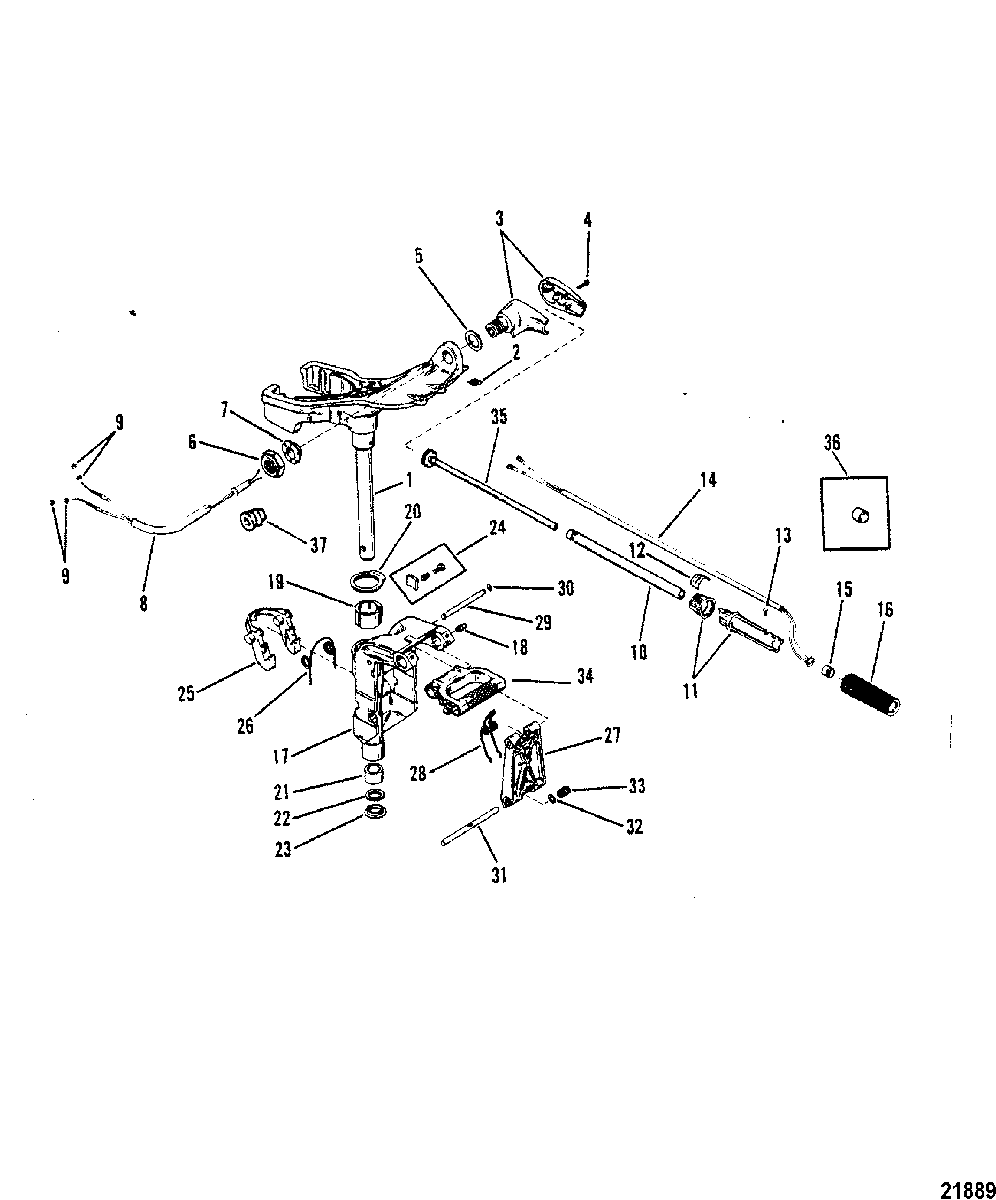

Swivel Bracket and Steering Handle для Mercury - XR10 9596000 THRU 9792199
-
№АртикулНазвание
-
142213A14 SWIVEL TUBE
(Reference #6 is 1 Inch -14)SWIVEL TUBE
(Reference #6 is 1 Inch -14) -
142213A14 SWIVEL TUBE
(Reference #6 is 1 Inch -14)SWIVEL TUBE
(Reference #6 is 1 Inch -14) -
142213A14 SWIVEL TUBE REPLACEMENT
(Reference #6 is 1.125 Inch -12)SWIVEL TUBE REPLACEMENT
(Reference #6 is 1.125 Inch -12) -
142213A14 SWIVEL TUBE REPLACEMENT
(Reference #6 is 1.125 Inch -12)SWIVEL TUBE REPLACEMENT
(Reference #6 is 1.125 Inch -12) -
222-74036 FITTING, GreaseFITTING, Grease
-
3NLA No Longer Available, Bracket (Order 42213A14 or 42213A15)
(Reference #6 is 1 Inch -14)No Longer Available, Bracket (Order 42213A14 or 42213A15)
(Reference #6 is 1 Inch -14) -
410-40019109 SCREW, (M5 x 25)
(Reference #6 is 1 Inch -14)SCREW, (M5 x 25)
(Reference #6 is 1 Inch -14) -
410-4005688 SCREW, (M4 x 20)
(Reference #6 is 1 Inch -14)SCREW, (M4 x 20)
(Reference #6 is 1 Inch -14) -
512-177821 WASHER
(Reference #6 is 1 Inch -14)WASHER
(Reference #6 is 1 Inch -14) -
611-82671327 NUT
(Black)(Reference #6 is 1 Inch -14)NUT
(Black)(Reference #6 is 1 Inch -14) -
611-82671327 NUT, (1.00-14)
(Gray)(Reference #6 is 1 Inch -14)NUT, (1.00-14)
(Gray)(Reference #6 is 1 Inch -14) -
723-85973 BUSHING
(Reference #6 is 1.125 Inch -12)BUSHING
(Reference #6 is 1.125 Inch -12) -
344397A15 BRACKET ASSEMBLY
(Black)(Reference #6 is 1.125 Inch -12)BRACKET ASSEMBLY
(Black)(Reference #6 is 1.125 Inch -12) -
344397A16 BRACKET ASSEMBLY
(Gray)(Reference #6 is 1.125 Inch -12)BRACKET ASSEMBLY
(Gray)(Reference #6 is 1.125 Inch -12) -
410-40011110 SCREW, (M5 x 30) Stainless Steel
(Reference #6 is 1.125 Inch -12)SCREW, (M5 x 30) Stainless Steel
(Reference #6 is 1.125 Inch -12) -
512-177821 WASHER
(Reference #6 is 1.125 Inch -12)WASHER
(Reference #6 is 1.125 Inch -12) -
611-816880 NUT
(Reference #6 is 1.125 Inch -12)NUT
(Reference #6 is 1.125 Inch -12) -
723-817026 BUSHING
(Reference #6 is 1.125 Inch -12)BUSHING
(Reference #6 is 1.125 Inch -12) -
842210 CABLE, THROTTLE (TILLER HANDLE SHIFT)CABLE, THROTTLE (TILLER HANDLE SHIFT)
-
8422111 CABLE, THROTTLE (SIDE SHIFT)CABLE, THROTTLE (SIDE SHIFT)
-
911-400212 NUT, (M6) Stainless Steel, THROTTLE CABLENUT, (M6) Stainless Steel, THROTTLE CABLE
-
1099333A2 TUBE ASSEMBLY, STEERINGTUBE ASSEMBLY, STEERING
-
1187-823609A10 HANDLE ASSEMBLY, Throttle (TILLER HANDLE SHIFT)HANDLE ASSEMBLY, Throttle (TILLER HANDLE SHIFT)
-
1187-823609A10 HANDLE ASSEMBLY, Throttle (SIDE SHIFT)HANDLE ASSEMBLY, Throttle (SIDE SHIFT)
-
1237-13239 DECAL, THROTTLE (APPLY ON HANDLE)DECAL, THROTTLE (APPLY ON HANDLE)
-
1237-140121 DECAL, THROTTLE (APPLY ON TUBE)(BLACK)DECAL, THROTTLE (APPLY ON TUBE)(BLACK)
-
1237-140122 DECAL (APPLY ON TUBE)(GRAY)(3.33 x 1.25))DECAL (APPLY ON TUBE)(GRAY)(3.33 x 1.25))
-
1237-140123 DECAL (APPLY OF TUBE)(GRAY)(3.15 X 2.50)DECAL (APPLY OF TUBE)(GRAY)(3.15 X 2.50)
-
1237-140124 DECAL (INTERNATIONAL SYMBOLS)DECAL (INTERNATIONAL SYMBOLS)
-
1310-37342 SCREW, (#12-14 x .375), THROTTLE HANDLESCREW, (#12-14 x .375), THROTTLE HANDLE
-
1487-823609A10 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
1511099A1 BOOT ASSEMBLY, STOP SWITCHBOOT ASSEMBLY, STOP SWITCH
-
1699589003 GRIP, RUBBERGRIP, RUBBER
-
173402-8831A13 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
173402-8831A13 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1822-74036 FITTING, GreaseFITTING, Grease
-
1923-42140 BUSHING, UPPERBUSHING, UPPER
-
2023-42080T01 BEARING, Thrust - UpperBEARING, Thrust - Upper
-
2123-42139 BUSHING, LOWERBUSHING, LOWER
-
2226-42077 SEALSEAL
-
2312-42373 THRUST WASHER, LOWERTHRUST WASHER, LOWER
-
2442124A1 PLATE ASSEMBLY, CO-PILOTPLATE ASSEMBLY, CO-PILOT
-
258M0075731 HOOK, REVERSE LOCKHOOK, REVERSE LOCK
-
2624-42127 SPRING, REVERSE HOOKSPRING, REVERSE HOOK
-
2742082T04 BRACKETBRACKET
-
2824-421301 SPRINGSPRING
-
2917-420811 PINPIN
-
3053-13194 RING, RetainingRING, Retaining
-
3117-830741A1 PIN, PivotPIN, Pivot
-
3291963 WASHER, (.390 x .600 x .032), PIVOT PINWASHER, (.390 x .600 x .032), PIVOT PIN
-
3324-42128 SPRINGSPRING
-
34420852 CARRYING HANDLECARRYING HANDLE
-
35975501 TUBE ASSEMBLYTUBE ASSEMBLY
-
36817634 PLUG (SEA PRO/MARATHON 10)PLUG (SEA PRO/MARATHON 10)
-
3725-12602002 GROMMETGROMMET
