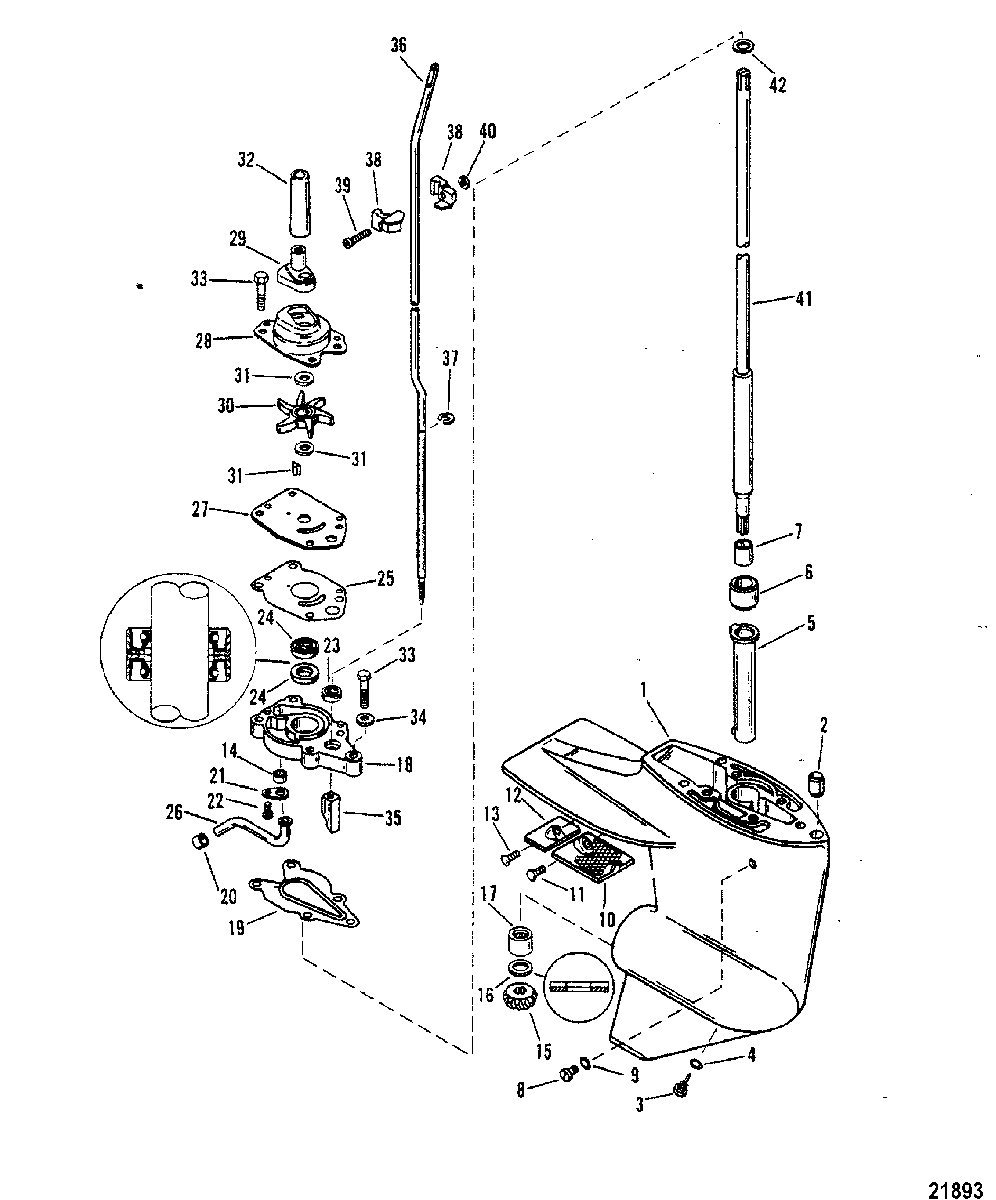

Gear Hsg(Driveshaft)(Design II-Refer to Reference #41) для Mercury - XR10 9596000 THRU 9792199
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- BLACKGEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- BLACK
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACKGEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK
-
-1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- GRAYGEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- GRAY
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAYGEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY
-
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(Black)GEAR HOUSING ASSEMBLY, Basic-Black
(Black) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
(Gray)GEAR HOUSING ASSEMBLY, Basic-Gray
(Gray) -
223-12009 BUSHING, (.31 x .45 x .50), GEAR HOUSINGBUSHING, (.31 x .45 x .50), GEAR HOUSING
-
322-8M0058389 SCREWSCREW
-
425-805726 O-RING, RubberO-RING, Rubber
-
5822244A1 SLEEVE ASSEMBLYSLEEVE ASSEMBLY
-
623-823944 SLEEVESLEEVE
-
723-823943 BUSHINGBUSHING
-
810-79953Q04 SCREW KITSCREW KIT
-
925-805726 O-RING, RubberO-RING, Rubber
-
1035-421991 SCREENSCREEN
-
1110-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1297-42121Q02 ANODE ASSEMBLYANODE ASSEMBLY
-
1310-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1426-42133 SEALSEAL
-
1543-8219251 GEAR, Pinion - 13-26GEAR, Pinion - 13-26
-
1612-41369 WASHER, THRUSTWASHER, THRUST
-
1731-22756 BEARING, RollerBEARING, Roller
-
1846-42040T5 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-192043 GASKETGASKET
-
2026-33613 SEALSEAL
-
2142375 RETAINERRETAINER
-
2210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2325-822236 QUAD RINGQUAD RING
-
2426-413651 SEAL, OilSEAL, Oil
-
2527-19202001 GASKET, Water Pump PlateGASKET, Water Pump Plate
-
2632-42185A1 TUBE ASSEMBLY, WaterTUBE ASSEMBLY, Water
-
2742200 FACE PLATEFACE PLATE
-
2846-42089A2 COVER ASSEMBLYCOVER ASSEMBLY
-
2926-421021 SEALSEAL
-
3047-42038Q02 IMPELLERIMPELLER
-
3128-42376A2 KEY ASSEMBLYKEY ASSEMBLY
-
3244467 GUIDEGUIDE
-
3310-4000331 SCREW, (M6 x 30), WATER PUMPSCREW, (M6 x 30), WATER PUMP
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3542039 CAM, SHIFTCAM, SHIFT
-
368M0026064 SHIFT SHAFT (SHORT)SHIFT SHAFT (SHORT)
-
368M0026065 SHIFT SHAFT (LONG)SHIFT SHAFT (LONG)
-
3753-42389 E RINGE RING
-
388M0036770 GUIDEGUIDE
-
3910-40011109 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
4011-401385 NUT, (M5), GUIDE SCREWNUT, (M5), GUIDE SCREW
-
4145-823389 DRIVESHAFT (SHORT)DRIVESHAFT (SHORT)
-
4145-823390 DRIVESHAFT (LONG)DRIVESHAFT (LONG)
-
4212-822248 THRUST WASHERTHRUST WASHER
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
-
-46-42089A5 PUMP KIT, WaterPUMP KIT, Water
