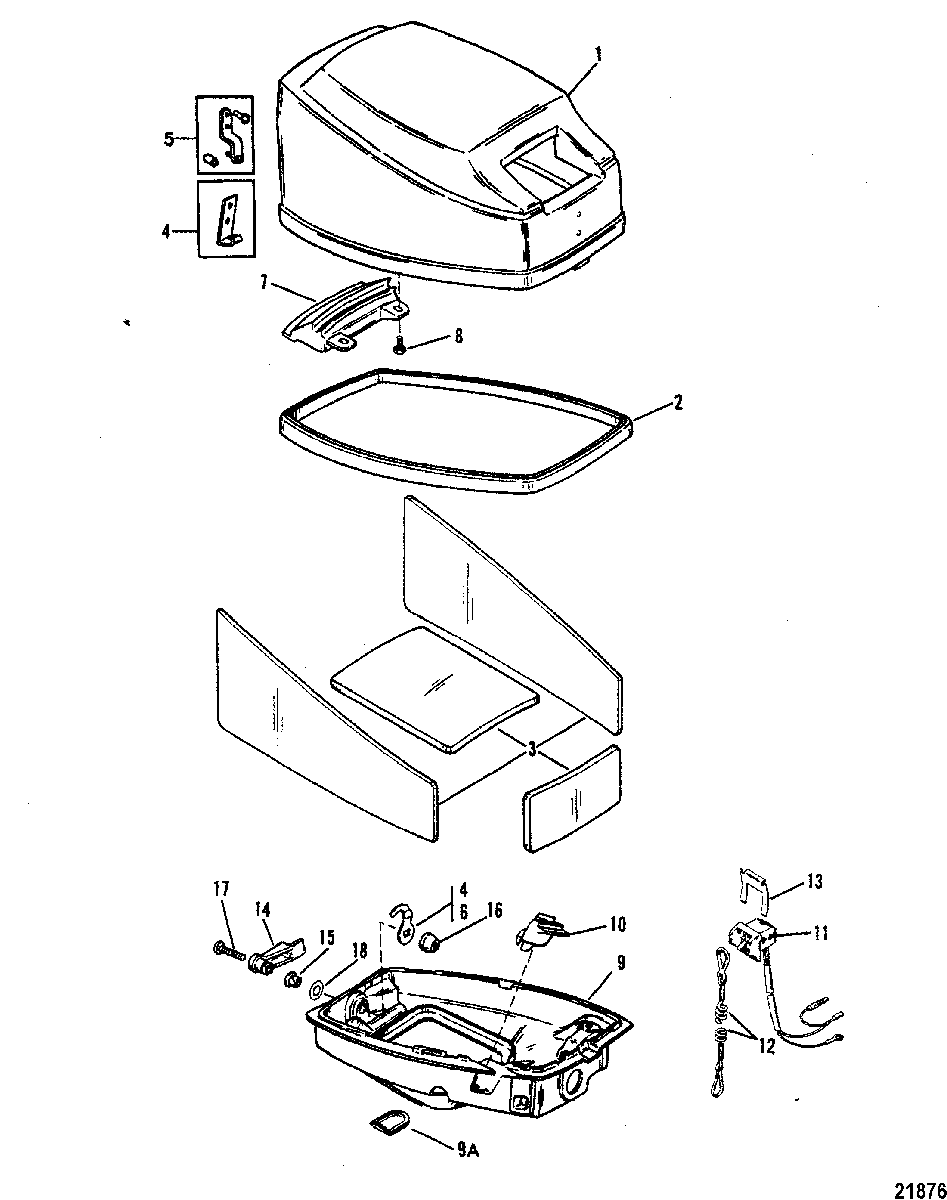

Cowls для Mercury - XR10 9596000 THRU 9792199

  • №
    Артикул
    Название
  • 1
    2191-9420T10 TOP COWL ASSEMBLY
    (Black)
    TOP COWL ASSEMBLY
    (Black)
  • 1
    2191-8M0094069 TOP COWL ASSEMBLY
    (Gray)
    TOP COWL ASSEMBLY
    (Gray)
  • 2
    8M0043151 SEAL
    SEAL
  • 3
    13691A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    16471A1 LATCH, Cowl (W/O ROLLER-SEE REF #4)
    LATCH, Cowl (W/O ROLLER-SEE REF #4)
  • 5
    817104A3 LATCH ASSEMBLY, Cowl (W/ROLLER-SEE REF.#5)
    LATCH ASSEMBLY, Cowl (W/ROLLER-SEE REF.#5)
  • 6
    180402 LATCH HOOK
    LATCH HOOK
  • 7
    11354 SHIELD, REAR
    (Black)
    SHIELD, REAR
    (Black)
  • 7
    12873T SHIELD, REAR
    (Gray)
    SHIELD, REAR
    (Gray)
  • 8
    10-400018 SCREW, (M5 x 12), REAR SHIELD
    SCREW, (M5 x 12), REAR SHIELD
  • 9
    2192-9204A1 BOTTOM COWL (XR10/SEA PRO 10)
    BOTTOM COWL (XR10/SEA PRO 10)
  • 9
    2192-9204A2 BOTTOM COWL (MAGNUM 10)
    BOTTOM COWL (MAGNUM 10)
  • 9
    2192-9204A2 BOTTOM COWL (MARATHON 10)
    BOTTOM COWL (MARATHON 10)
  • 9A
    15061001 PLUG
    PLUG
  • 10
    12154 PLUG, BOTTOM COWL
    PLUG, BOTTOM COWL
  • 11
    87-11083A6 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 12
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 13
    8M0032846 RETAINER, Brass, STOP SWITCH
    RETAINER, Brass, STOP SWITCH
  • 14
    44461A1 LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 15
    23-76470 BUSHING, COWL LATCH LEVER
    BUSHING, COWL LATCH LEVER
  • 16
    11394 SPACER, LATCH
    SPACER, LATCH
  • 17
    10-40019130 SCREW, (M6 x 30), LATCH AND LEVER
    SCREW, (M6 x 30), LATCH AND LEVER
  • 17
    10-40019131 SCREW, (M6 x 35), LATCH AND LEVER
    SCREW, (M6 x 35), LATCH AND LEVER
  • 18
    13-69708 WAVE WASHER, LATCH AND LEVER SCREW
    WAVE WASHER, LATCH AND LEVER SCREW
