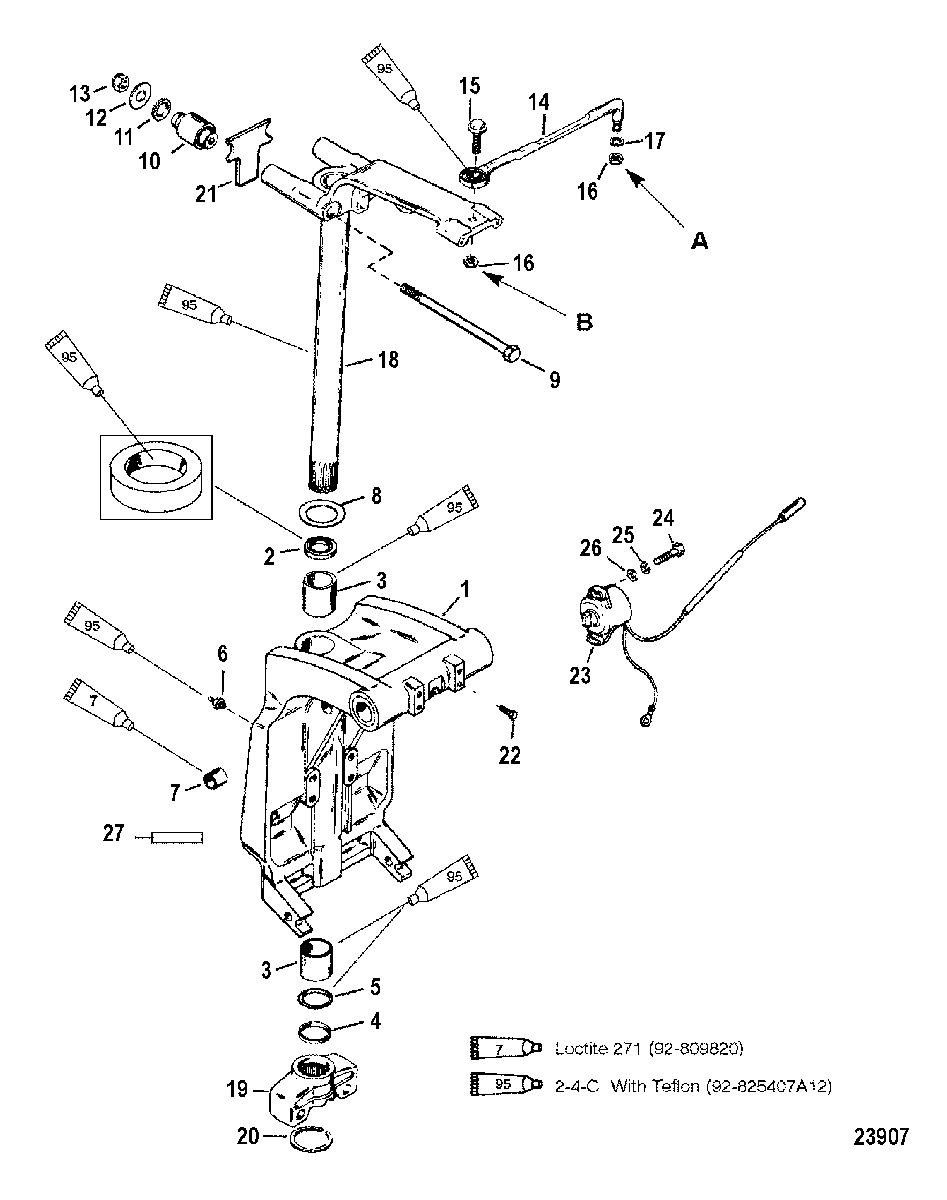

SWIVEL BRACKET AND STEERING ARM для Mercury - V-150 (EFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    SWIVEL BRACKET ASSEMBLY, Black
  • 2
    26-87735 SEAL, Oil (LOWER)
    SEAL, Oil (LOWER)
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    23-816039 SPACER
    SPACER
  • 5
    25-33504 O-RING
    O-RING
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    12-816432 THRUST WASHER
    THRUST WASHER
  • 9
    10-8M0000491 SCREW, (.437-20 x 7.50)
    SCREW, (.437-20 x 7.50)
  • 10
    77326 MOUNT
    MOUNT
  • 11
    12-66921 WASHER
    WASHER
  • 12
    12-78688 WASHER
    WASHER
  • 13
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 14
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 15
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 16
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 17
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 18
    17-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm
    SWIVEL PIN ASSEMBLY, Steering Arm
  • 19
    878182T01 YOKE ASSEMBLY, Bottom
    YOKE ASSEMBLY, Bottom
  • 20
    53-67684 RING, Retaining
    RING, Retaining
  • 21
    8M0000516 BUMPER
    BUMPER
  • 22
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 23
    8M0098273 SENDER ASSEMBLY, Trim
    SENDER ASSEMBLY, Trim
  • 24
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 26
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 27
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
