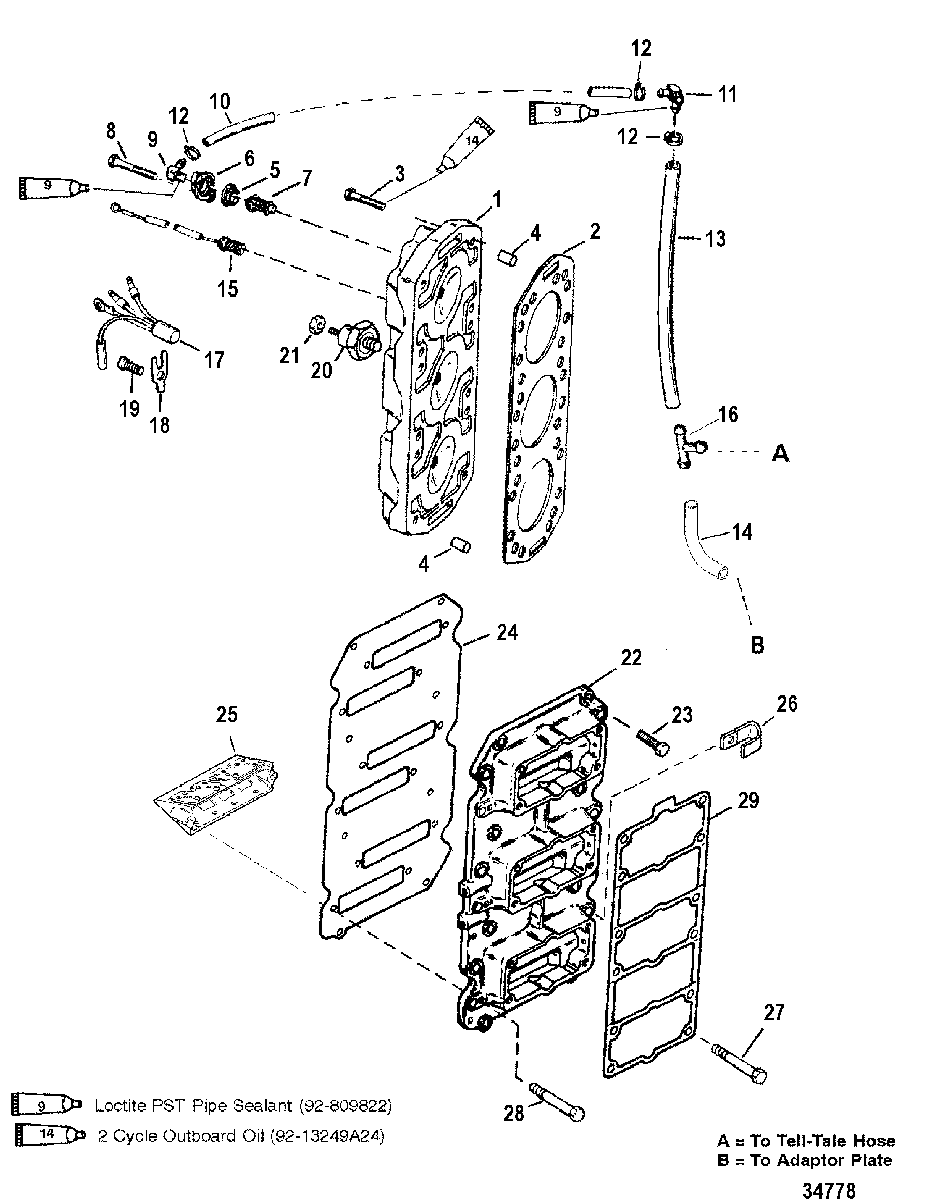

REED BLOCK AND CYLINDER HEAD для Mercury - V-150 (EFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    900-8M0143213 CYLINDER HEAD
    CYLINDER HEAD
  • 2
    27-822844T05 GASKET
    GASKET
  • 3
    10-98534 SCREW, (.375-16 x 2.30)
    (Quantity of 24 used on 150/175)
    SCREW, (.375-16 x 2.30)
    (Quantity of 24 used on 150/175)
  • 3
    10-827426 SCREW
    (200)
    SCREW
    (200)
  • 4
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 5
    27-62386001 GASKET
    GASKET
  • 6
    90390A1 COVER KIT
    COVER KIT
  • 7
    75692 THERMOSTAT
    THERMOSTAT
  • 8
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 9
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 10
    32-77653101 TUBING, (25.00 Inches), Cut to 12-3/4 Inches
    TUBING, (25.00 Inches), Cut to 12-3/4 Inches
  • 11
    22-68728 FITTING
    FITTING
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    32-77653101 TUBING, (25.00 Inches), Cut to 11-1/2 Inches
    TUBING, (25.00 Inches), Cut to 11-1/2 Inches
  • 14
    32-77653101 TUBING, (25.00 Inches), Cut to 7-1/2 Inches
    TUBING, (25.00 Inches), Cut to 7-1/2 Inches
  • 15
    97465 SENDER, Temperature, Starboard
    SENDER, Temperature, Starboard
  • 16
    22-815914 T-FITTING
    T-FITTING
  • 17
    13536A6 SENSOR ASSEMBLY, Temperature, Port
    SENSOR ASSEMBLY, Temperature, Port
  • 18
    137151 RETAINER
    RETAINER
  • 19
    10-98257 SCREW, (.312-18 x .500)
    SCREW, (.312-18 x .500)
  • 20
    826858 SENSOR, Knock (200)
    SENSOR, Knock (200)
  • 21
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 22
    17735A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 23
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 24
    27-146972 GASKET
    GASKET
  • 25
    855952T3 REED BLOCK
    REED BLOCK
  • 26
    54-55098 J CLIP
    J CLIP
  • 27
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 28
    10-90197 SCREW, (.250-20 x 1.125)
    SCREW, (.250-20 x 1.125)
  • 29
    27-167371 GASKET
    GASKET
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    823434R97 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
