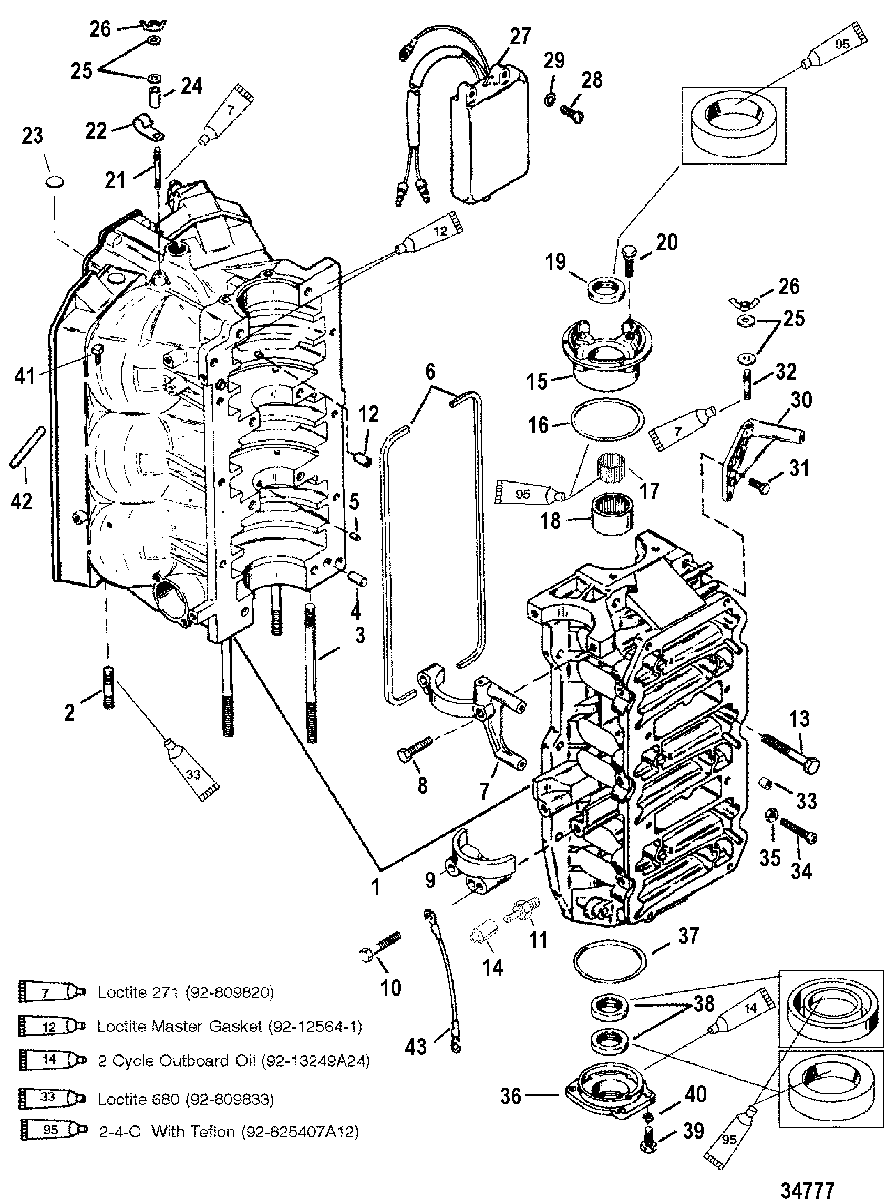

CYLINDER BLOCK AND END CAPS для Mercury - V-150 (EFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    884-9763T23 CYLINDER BLOCK
    (150)
    CYLINDER BLOCK
    (150)
  • 1
    884-9763T17 CYLINDER BLOCK
    (175)
    CYLINDER BLOCK
    (175)
  • 1
    884-9763T61 CYLINDER BLOCK
    (200)
    CYLINDER BLOCK
    (200)
  • 2
    16-8M0034455 STUD, Powerhead (1-3/4 IN.)
    STUD, Powerhead (1-3/4 IN.)
  • 3
    16-670654 STUD, (.375 x 5.620)
    STUD, (.375 x 5.620)
  • 3
    16-8M0034454 STUD, (.375 x 6.870)
    STUD, (.375 x 6.870)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET
    GASKET
  • 7
    8M0088723 COVER (UPPER)
    COVER (UPPER)
  • 8
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 9
    76867 COVER (LOWER)
    COVER (LOWER)
  • 10
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange
    SCREW, (.312-18 x 2.00) Hex Flange
  • 11
    21-8781051 CHECK VALVE
    CHECK VALVE
  • 12
    23-99448 BUSHING
    BUSHING
  • 13
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 13
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 14
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 15
    1159-858521T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 16
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 17
    31-16756A4 BEARING KIT
    BEARING KIT
  • 18
    NSS NOT SOLD SEPARATE, Race
    NOT SOLD SEPARATE, Race
  • 19
    26-41953 SEAL
    SEAL
  • 20
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 21
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 22
    54-63153 J CLIP
    J CLIP
  • 23
    NSS NOT SOLD SEPARATE, Plug-Serial Number
    NOT SOLD SEPARATE, Plug-Serial Number
  • 24
    23-67269 SPACER
    SPACER
  • 25
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 26
    11-816874 WING NUT, (#10-32)
    WING NUT, (#10-32)
  • 27
    87076A10 IDLE SPEED CONTROL
    IDLE SPEED CONTROL
  • 28
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 29
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 30
    422482 BRACKET
    BRACKET
  • 31
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 33
    26852 CAP, Nylon
    CAP, Nylon
  • 34
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 35
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 36
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 37
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 38
    26-41953 SEAL
    SEAL
  • 39
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 40
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 41
    22-822715 FITTING, Elbow
    FITTING, Elbow
  • 42
    22-15026 CAP
    CAP
  • 43
    84-88807A20 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    823434R97 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
