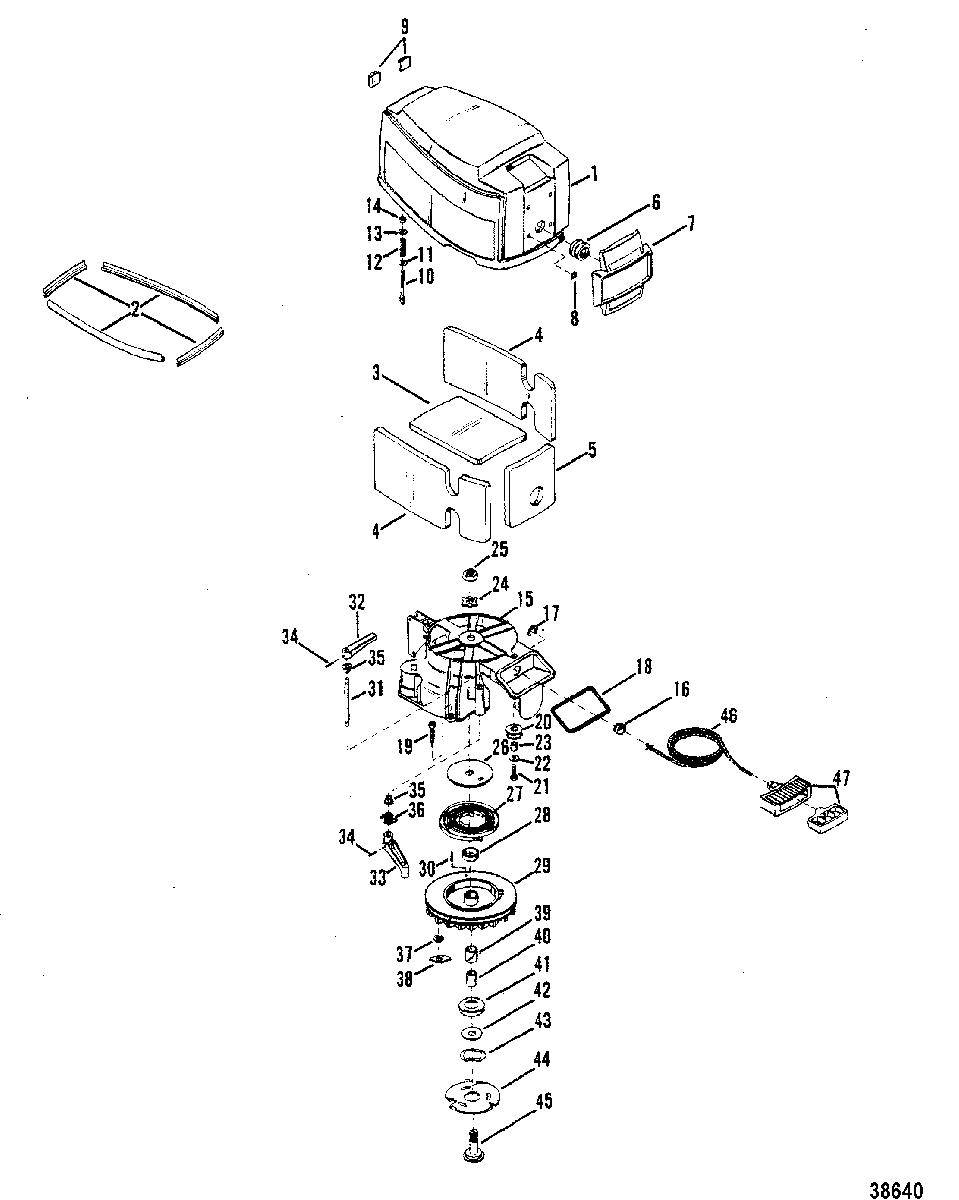

TOP COWL AND STARTER ASSEMBLY для Mercury - 9.8 7127388 & Up
-
№АртикулНазвание
-
12160-7264A10 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
2654893 SEAL, TOP COWL (16-1/2")SEAL, TOP COWL (16-1/2")
-
366942 BLANKET, SOUND - TOP EARLY STYLE ENGINEBLANKET, SOUND - TOP EARLY STYLE ENGINE
-
485544 BLANKET, SOUND - SIDE EARLY STYLE ENGINEBLANKET, SOUND - SIDE EARLY STYLE ENGINE
-
569522 BLANKET, SOUND - FRONT EARLY STYLE ENGINEBLANKET, SOUND - FRONT EARLY STYLE ENGINE
-
625-39086 GROMMET, COWL LATCH - TOP COWLGROMMET, COWL LATCH - TOP COWL
-
771502 COVER, FRONTCOVER, FRONT
-
811-65517 NUT, SPEED - FRONT COVER TO TOP COWLNUT, SPEED - FRONT COVER TO TOP COWL
-
969346 BUMPER, COWL - REARBUMPER, COWL - REAR
-
1017-72856 PIN, TOP COWL CATCHPIN, TOP COWL CATCH
-
1112-98500 WASHER, TOP COWL CATCH (LOWER)WASHER, TOP COWL CATCH (LOWER)
-
1224-79351 SPRING, COMPRESSION -- COWL CATCHSPRING, COMPRESSION -- COWL CATCH
-
1312-65567 WASHER, (.265 x .750 x .048) Stainless Steel, TOP COWL CATCH (UPPER)WASHER, (.265 x .750 x .048) Stainless Steel, TOP COWL CATCH (UPPER)
-
1411-20184 NUT, (1/4-28X7/32), COWL CATCH TO TOP COWLNUT, (1/4-28X7/32), COWL CATCH TO TOP COWL
-
1591871A1 HOUSING ASSEMBLY, StarterHOUSING ASSEMBLY, Starter
-
1677859A1 ROPE GUIDE (ALUMINUM)ROPE GUIDE (ALUMINUM)
-
1658657 ROPE GUIDE (PLASTIC)ROPE GUIDE (PLASTIC)
-
1777860 RING, RETAINING - ROPE GUIDE (ALUMINUM)RING, RETAINING - ROPE GUIDE (ALUMINUM)
-
1753-72168 RING, RETAINING - ROPE GUIDE (PLASTIC)RING, RETAINING - ROPE GUIDE (PLASTIC)
-
18654991 SEAL, STARTER HOUSING TO TOP COWLSEAL, STARTER HOUSING TO TOP COWL
-
1910-72862 SCREW, (.250-28 x 1.00), STARTER HOUSING TO CRANKCASESCREW, (.250-28 x 1.00), STARTER HOUSING TO CRANKCASE
-
2093695 PULLEY, STARTER CABLEPULLEY, STARTER CABLE
-
2110-28789 SCREW, (.190-24 x .750), CABLE PULLERYSCREW, (.190-24 x .750), CABLE PULLERY
-
2212-22887 WASHER, CABLE PULLEY SCREWWASHER, CABLE PULLEY SCREW
-
2323-309772 SPACER, CABLE PULLEYSPACER, CABLE PULLEY
-
2414-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
2511-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
2620155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
2724-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2823-28912 BUSHING, STARTER SPRING GUIDEBUSHING, STARTER SPRING GUIDE
-
2950-93696A2 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
3017-22896 PIN, RETAINER - STARTER CABLEPIN, RETAINER - STARTER CABLE
-
3174359 SHAFT, INTERLOCKSHAFT, INTERLOCK
-
3274353 LEVER, LOCKLEVER, LOCK
-
3374351 LEVER, FOLLOWERLEVER, FOLLOWER
-
3417-38489 PIN, Roll, INTERLOCK SHAFTPIN, Roll, INTERLOCK SHAFT
-
3523-26856 BUSHING, NYLON - INTERLOCK SHAFTBUSHING, NYLON - INTERLOCK SHAFT
-
3624-74347 SPRING, TORSION - INTERLOCK SHAFTSPRING, TORSION - INTERLOCK SHAFT
-
3713-36206 WAVE WASHER, STARTER PAWLWAVE WASHER, STARTER PAWL
-
3830596 PAWL, STARTERPAWL, STARTER
-
3923-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
4023-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
4126179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVERETAINER, SHEAVE SHAFT TO STARTER SHEAVE
-
4212-35559 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
4313-20160 WAVE WASHER, RETAINER TENSIONWAVE WASHER, RETAINER TENSION
-
4430595 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
4535558 SHAFT, SheaveSHAFT, Sheave
-
4650-12066Q10 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
4779470A1 RETAINER KIT, RopeRETAINER KIT, Rope
