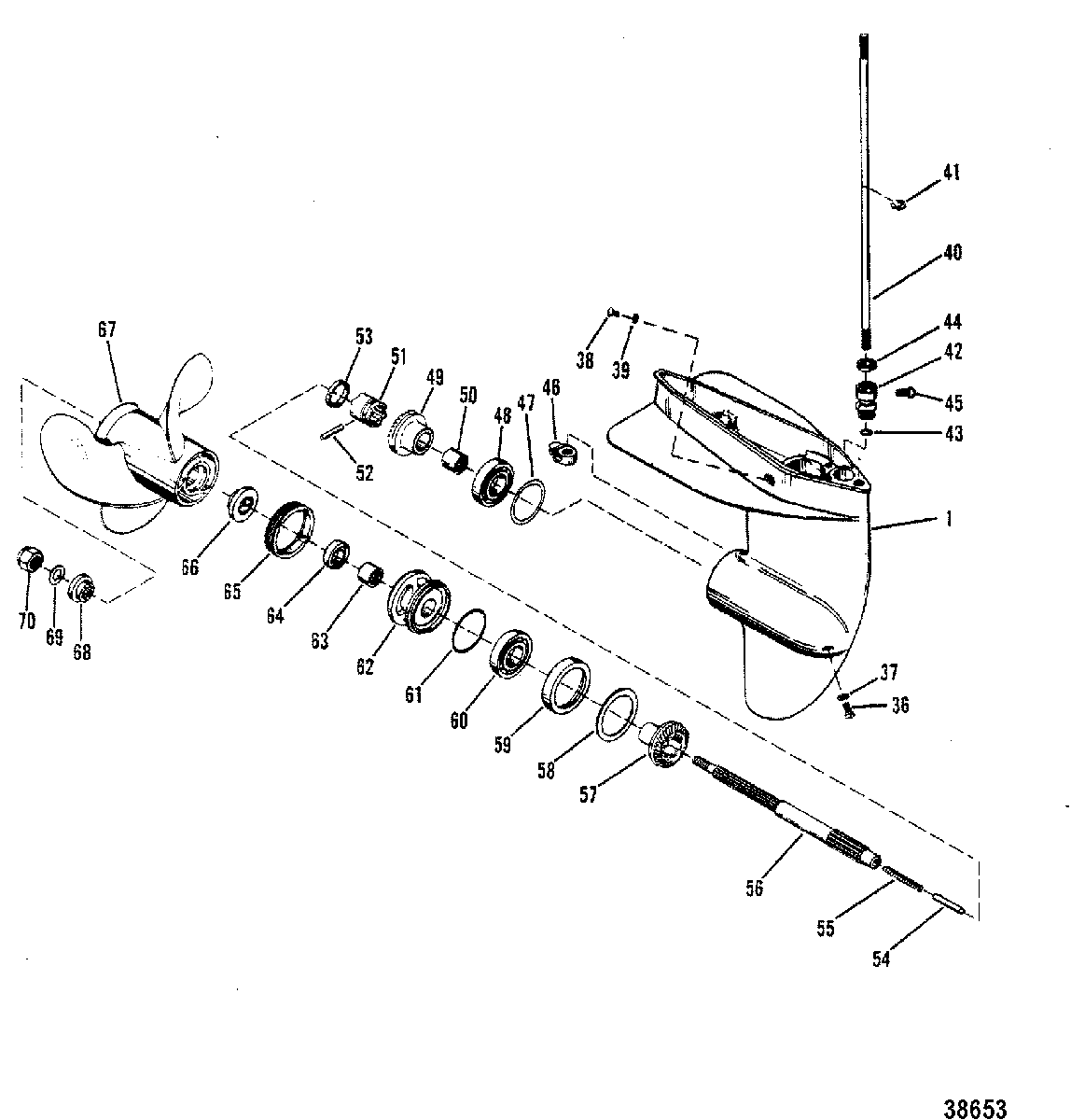

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 9.8 7127388 & Up

  • №
    Артикул
    Название
  • -
    1630-7360A12 GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    1630-7360A13 GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    1630-7360A29 GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    GEAR HOUSING ASSEMBLY
    (SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • -
    1630-7360A30 GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    GEAR HOUSING ASSEMBLY
    (LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 1
    1630-7360A11 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 36
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER HOLE
    SCREW, (.375-16 x .250), GREASE FILLER HOLE
  • 37
    12-191833 WASHER, GREASE FILLER HOLE SCREW
    WASHER, GREASE FILLER HOLE SCREW
  • 38
    10-28653 SCREW, (#10-32 x 0.25), VENT HOLE
    SCREW, (#10-32 x 0.25), VENT HOLE
  • 39
    19643 WASHER, VENT HOLE SCREW
    WASHER, VENT HOLE SCREW
  • 40
    71659A1 SHIFT SHAFT ASSEMLBY
    (SHORT SHAFT)
    SHIFT SHAFT ASSEMLBY
    (SHORT SHAFT)
  • 40
    71658A1 SHIFT SHAFT ASSEMBLY
    (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY
    (LONG SHAFT)
  • 41
    53-22899 RING, Retaining, SHIFT SHAFT
    RING, Retaining, SHIFT SHAFT
  • 42
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    25-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHING
    O-RING, (.424 x .103), SHIFT SHAFT BUSHING
  • 44
    26-30696 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 45
    10-39149 SCREW, (#10-24 x .500), SHIFT SHAFT BUSHING
    SCREW, (#10-24 x .500), SHIFT SHAFT BUSHING
  • 46
    44434 CAM, SHIFT
    CAM, SHIFT
  • 47
    15-30522A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
    SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
  • 48
    30-21889 BEARING, Ball, FOWARD GEAR
    BEARING, Ball, FOWARD GEAR
  • 49
    43-48577A3 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 50
    31-22458 BEARING, Roller, FORWARD GEAR
    BEARING, Roller, FORWARD GEAR
  • 51
    52-63314 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 52
    17-30535 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 53
    53-32449 RING, Retaining, CROSS PIN
    RING, Retaining, CROSS PIN
  • 54
    31334 FOLLOWER, SHIFT CAM
    FOLLOWER, SHIFT CAM
  • 55
    24-76298 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 56
    44-75667A2 PROELLER SHAFT ASSEMBLY
    PROELLER SHAFT ASSEMBLY
  • 57
    43-63316 GEAR, Reverse
    GEAR, Reverse
  • 58
    15-30532A1 SHIM ASSEMBLY, THRUST WASHER (.002-3-5-10)
    SHIM ASSEMBLY, THRUST WASHER (.002-3-5-10)
  • 59
    71479 SLEEVE, THRUST - REVERSE GEAR
    SLEEVE, THRUST - REVERSE GEAR
  • 60
    30-21889 BEARING, Ball, REVERSE GEAR
    BEARING, Ball, REVERSE GEAR
  • 61
    25-30529 O-RING, (1.925 x .103), BEARING CARRIER
    O-RING, (1.925 x .103), BEARING CARRIER
  • 62
    72673T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 63
    31-22458 BEARING, Roller, BEARING CARRIER
    BEARING, Roller, BEARING CARRIER
  • 64
    26-66022 SEAL, Oil, BEARING CARRIER
    SEAL, Oil, BEARING CARRIER
  • 65
    86236 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 66
    86665A1 COLLAR, PROPELLER GUIDE
    COLLAR, PROPELLER GUIDE
  • 67
    48-47670A10 PROPELLER (SHIPPED WITH ENGINE)
    MERC 7.5
    PROPELLER (SHIPPED WITH ENGINE)
    MERC 7.5
  • 67
    48-87572A10 PROPELLER (SHIPPED WITH ENGINE)
    MERC 9.8
    PROPELLER (SHIPPED WITH ENGINE)
    MERC 9.8
  • 67
    48-47922A10 PROPELLER
    (9" DIA., PITCH, 2 BLADES, ALUMINUM)
    PROPELLER
    (9" DIA., PITCH, 2 BLADES, ALUMINUM)
  • 67
    48-47922A10 PROBPELLER
    (9" DIA., 10" PITCH, 2 BLADES, ALMINUM)
    PROBPELLER
    (9" DIA., 10" PITCH, 2 BLADES, ALMINUM)
  • 68
    11-64075A1 SPACER, PROPELLER SHAFT
    SPACER, PROPELLER SHAFT
  • 69
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel, PROPELLER SHAFT
    SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below
    WASHER, (.453 x .750 x .062) Stainless Steel, PROPELLER SHAFT
    SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below
  • 70
    11-64075A1 PROP NUT KIT, PROPELLER
    SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below
    PROP NUT KIT, PROPELLER
    SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below
  • 70
    11-64075A1 NUT, PROPELLER
    SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & Up
    NUT, PROPELLER
    SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & Up
  • -
    27-89014A80 GASKET SET
    GASKET SET
