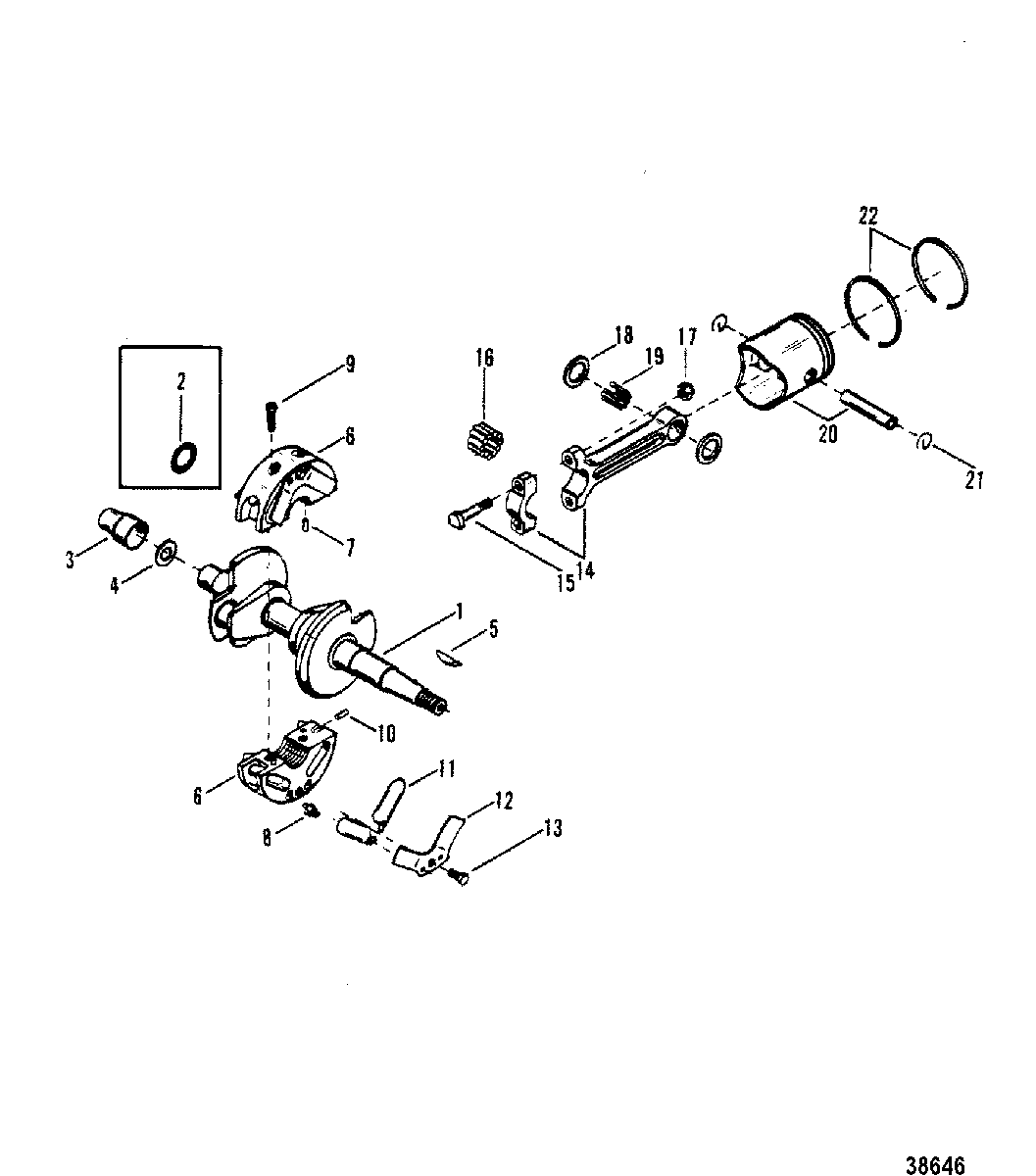

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 9.8 7127388 & Up

  • №
    Артикул
    Название
  • 1
    421-5275 CRANKSHAFT
    SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    CRANKSHAFT
    SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • 2
    26-72793 SEAL, CRANKSHAFT
    SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    SEAL, CRANKSHAFT
    SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • 1
    421-7271A2 CRANKSHAFT ASSEMBLY
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    CRANKSHAFT ASSEMBLY
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 3
    79952A1 CARRIER ASSEMBLY
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    CARRIER ASSEMBLY
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 4
    12-79960 WASHER, FELT
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    WASHER, FELT
    SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • 5
    28-20094 KEY, Woodruff, CRANKSHAFT
    KEY, Woodruff, CRANKSHAFT
  • 6
    550-8122A5 BEARING ASSEMBLY, Main (VALVE TYPE)
    BEARING ASSEMBLY, Main (VALVE TYPE)
  • 7
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 8
    17-65855 PIN, Dowel, REED LOCATING
    PIN, Dowel, REED LOCATING
  • 9
    10-56781 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 10
    17-20032 PIN, Dowel, MAIN BEARING TO BLOCK
    PIN, Dowel, MAIN BEARING TO BLOCK
  • 11
    34-31942A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 12
    34-20053 STOP, Reed, MAIN BEARING REED VALVES
    STOP, Reed, MAIN BEARING REED VALVES
  • 13
    10-27304 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 14
    608-7395A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-87374 SCREW, (.250-28 x 1.030), CONNECTING ROD
    SCREW, (.250-28 x 1.030), CONNECTING ROD
  • 16
    31-8M0045032 BEARING, Needle, CRANKPIN
    BEARING, Needle, CRANKPIN
  • 17
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 18
    12-65967 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 19
    29-31505 BEARING, Needle, PISTON PIN
    BEARING, Needle, PISTON PIN
  • 20
    719-7391T3 PISTON ASSEMBLY (2 RING)
    PISTON ASSEMBLY (2 RING)
  • 21
    40-21666 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 22
    39-21665A12 RING SET, Piston
    RING SET, Piston
  • -
    75376A79 POWERHEAD ASSEMBLY
    (7.5) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    POWERHEAD ASSEMBLY
    (7.5) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    87123A80 POWERHEAD ASSEMBLY
    (7.5) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    POWERHEAD ASSEMBLY
    (7.5) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
  • -
    75380A79 POWERHEAD ASSEMBLY
    (9.8) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
    POWERHEAD ASSEMBLY
    (9.8) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below
  • -
    87181A80 POWERHEAD ASSEMBLY
    (9.8) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
    POWERHEAD ASSEMBLY
    (9.8) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
