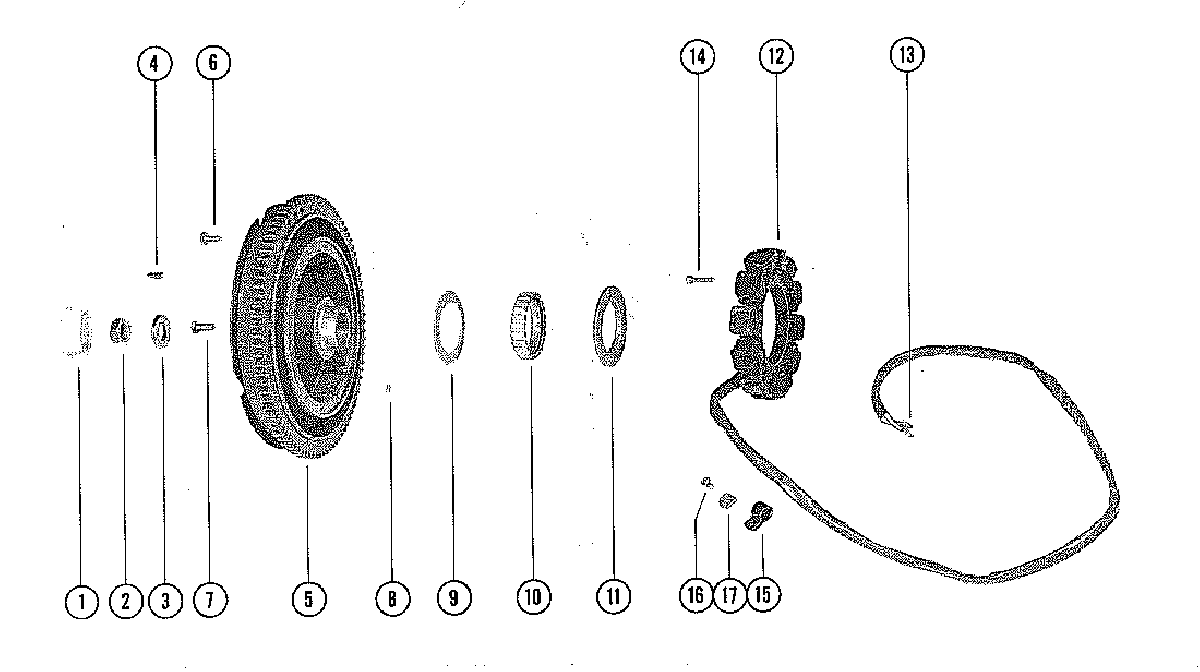

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 950 (6 CYL.) 1869776 THRU 2318585

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREAD
    PLUG, FLYWHEEL PULLER THREAD
  • 2
    11-22339 NUT,FLYWHEEL
    NUT,FLYWHEEL
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    28-45554 KEY, FLYWHEEL DRIVE
    SERIAL 00000000-02019667
    KEY, FLYWHEEL DRIVE
    SERIAL 00000000-02019667
  • 4
    28-45554 KEY, FLYWHEEL DRIVE
    SERIAL 02019668-09999999
    KEY, FLYWHEEL DRIVE
    SERIAL 02019668-09999999
  • 5
    225-2494A15 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 7
    10-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 8
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 9
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 10
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 11
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 12
    398-2188 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 13
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 14
    10-57021 SCREW, STATOR TO UPPER END CAP
    SCREW, STATOR TO UPPER END CAP
  • 15
    54-22740 CLIP, STATOR LEAD FASTENING (3/8")
    CLIP, STATOR LEAD FASTENING (3/8")
  • 15
    54-22875 CLIP, STATOR LEAD FASTENING (7/16")
    CLIP, STATOR LEAD FASTENING (7/16")
  • 15
    54-26550 CLIP, STATOR AND WIRING HARNESS LEADS FASTENING (5/16")
    CLIP, STATOR AND WIRING HARNESS LEADS FASTENING (5/16")
  • 15
    54-26550 CLIP, STATOR AND WIRING HARNESS LEADS FASTENING (5/16")
    CLIP, STATOR AND WIRING HARNESS LEADS FASTENING (5/16")
  • 16
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
    SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
  • 16
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
    SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
  • 16
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
    SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
  • 16
    10-69079 SCREW, STATOR LEAD CLIP FASTENING (#10)
    SCREW, STATOR LEAD CLIP FASTENING (#10)
  • 16
    10-69079 SCREW, STATOR LEAD CLIP FASTENING (#10)
    SCREW, STATOR LEAD CLIP FASTENING (#10)
  • 17
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 17
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
