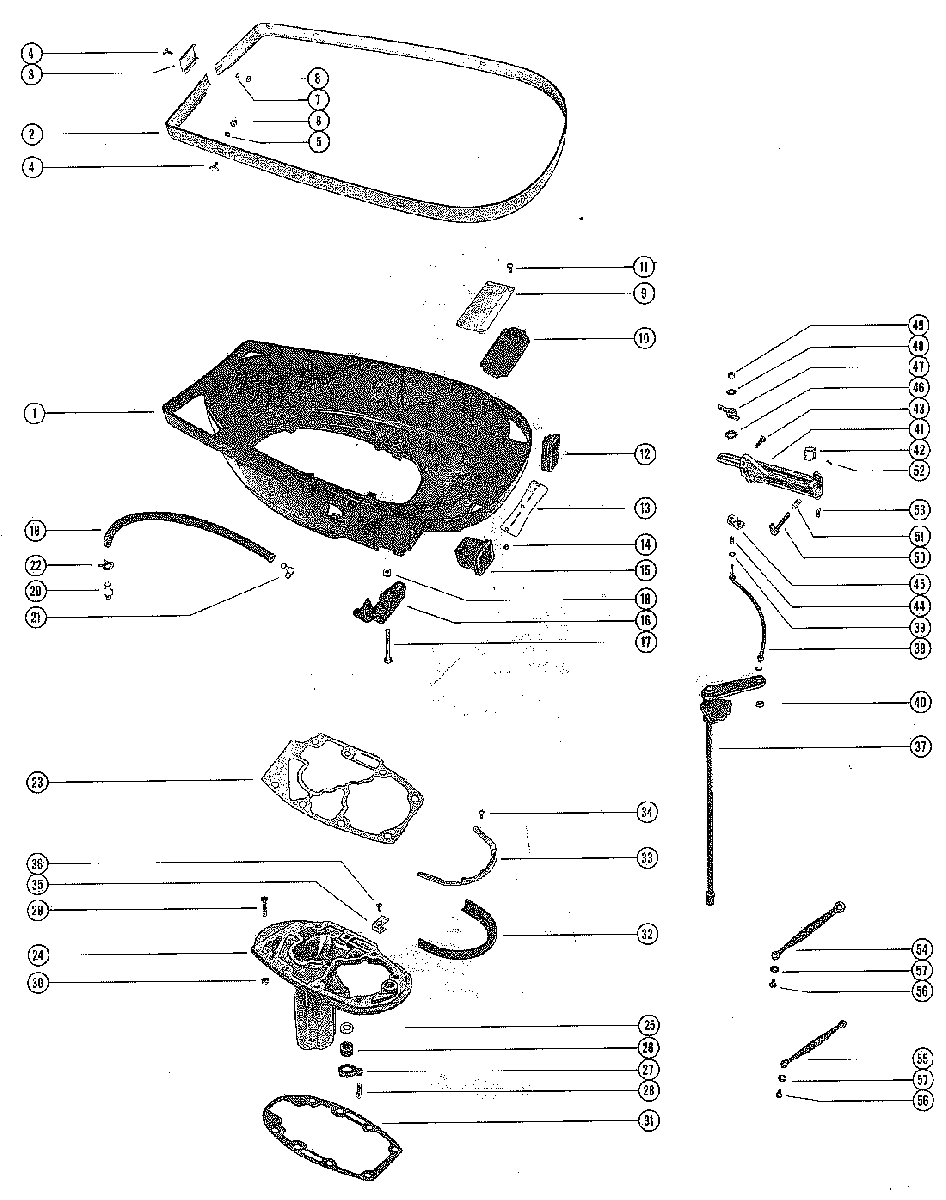

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 950 (6 CYL.) 1869776 THRU 2318585

  • №
    Артикул
    Название
  • 1
    2115-3807 COWL, BOTTOM
    SERIAL 00000000-02211282
    COWL, BOTTOM
    SERIAL 00000000-02211282
  • 1
    2115-3807 COWL, BOTTOM
    SERIAL 02211283-09999999
    COWL, BOTTOM
    SERIAL 02211283-09999999
  • 2
    37415A1 TRIM MOULDING ASSEMBLY, BOTTOM COWL
    TRIM MOULDING ASSEMBLY, BOTTOM COWL
  • 3
    38046 SPLICER, TRIM MOULDING - REAR
    SPLICER, TRIM MOULDING - REAR
  • 4
    10-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWL
    SCREW, DECORATIVE - MOULDING TO BOTTOM COWL
  • 5
    12-24671 WASHER, FIBER - MOULDING FASTENING SCREW
    WASHER, FIBER - MOULDING FASTENING SCREW
  • 6
    11-29225 NUT, NYLON CAP - MOULDING FASTENING SCREW
    NUT, NYLON CAP - MOULDING FASTENING SCREW
  • 7
    13-26995 LOCKWASHER, MOULDING FASTENING SCREW
    LOCKWASHER, MOULDING FASTENING SCREW
  • 8
    11-26419 NUT, BRASS - MOULDING FASTENING SCREW
    NUT, BRASS - MOULDING FASTENING SCREW
  • 9
    37920A1 COVER PLATE ASSEMBLY, BOTTOM COWL
    COVER PLATE ASSEMBLY, BOTTOM COWL
  • 10
    37940 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 11
    10-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL
    SCREW, COVER PLATE TO BOTTOM COWL
  • 12
    37638 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 13
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 14
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 15
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 16
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 17
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL
  • 18
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 19
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 20
    22-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
    CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
  • 21
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 22
    54-22976 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
    CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
  • 23
    27-47257 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 24
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 25
    12-36446 WASHER, NYLON - WATER INLET TUBE
    WASHER, NYLON - WATER INLET TUBE
  • 26
    26-36557 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 26
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 27
    38448 RETAINER, WATER TUBE SEAL
    RETAINER, WATER TUBE SEAL
  • 28
    10-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
    SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
  • 29
    10-56500 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 30
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 31
    27-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 32
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 33
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 34
    10-37571 SCREW, SEAL&RETAINING STRIP TO EXHAUST EXTENSION PLATE
    SCREW, SEAL&RETAINING STRIP TO EXHAUST EXTENSION PLATE
  • 35
    37824 BRACKET, SHIFT SHAFT HOLD DOWN
    BRACKET, SHIFT SHAFT HOLD DOWN
  • 36
    10-41228 SCREW, HOLD DOWN BRACKET TO EXHAUST EXT PLATE (1/2")
    SCREW, HOLD DOWN BRACKET TO EXHAUST EXT PLATE (1/2")
  • 37
    49904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 37
    49905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 38
    46069A1 LINK ROD, SHIFT
    LINK ROD, SHIFT
  • 38
    46069A1 SHIFT LINK ASSEMBLY
    SHIFT LINK ASSEMBLY
  • 39
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 40
    18-25191 COTTER PIN, LINK ROD TO SHIFT SHAFT
    COTTER PIN, LINK ROD TO SHIFT SHAFT
  • 41
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 42
    38802 CAP, BRASS BARREL OF THROTTLE CABLE
    CAP, BRASS BARREL OF THROTTLE CABLE
  • 43
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 44
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 45
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 46
    12-37905 WASHER, NYLON - LINK ROD
    WASHER, NYLON - LINK ROD
  • 47
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
  • 48
    12-69056 WASHER, PLAIN - LINK ROD
    WASHER, PLAIN - LINK ROD
  • 49
    11-8267089 NUT, LINK ROD
    NUT, LINK ROD
  • 50
    49932A1 LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
    LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
  • 51
    24-37911 SPRING, CONTROL CABLE LOCKING LEVER
    SPRING, CONTROL CABLE LOCKING LEVER
  • 52
    17-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVER
    PIN, ROLL - CONTROL CABLE LOCKING LEVER
  • 53
    24-38472 SPRING, CONTROL, CONTROL CABLE TENSION - ANCHOR BRACKET
    SPRING, CONTROL, CONTROL CABLE TENSION - ANCHOR BRACKET
  • 54
    46933A1 GROUND STRAP ASS'Y, CRANKCASE TO COWL (3-5/8") (#46933A1)
    SERIAL 02211283-09999999
    GROUND STRAP ASS'Y, CRANKCASE TO COWL (3-5/8") (#46933A1)
    SERIAL 02211283-09999999
  • 55
    46933A2 GROUND STRAP ASS'Y, HOUSING TO COWL (3-3/8") (#46933A2)
    SERIAL 02211283-09999999
    GROUND STRAP ASS'Y, HOUSING TO COWL (3-3/8") (#46933A2)
    SERIAL 02211283-09999999
  • 56
    10-45218 SCREW, GROUND STRAP
    SERIAL 02211283-09999999
    SCREW, GROUND STRAP
    SERIAL 02211283-09999999
  • 57
    13-69432 LOCKWASHER, GROUND STRAP SCREW
    SERIAL 02211283-09999999
    LOCKWASHER, GROUND STRAP SCREW
    SERIAL 02211283-09999999
