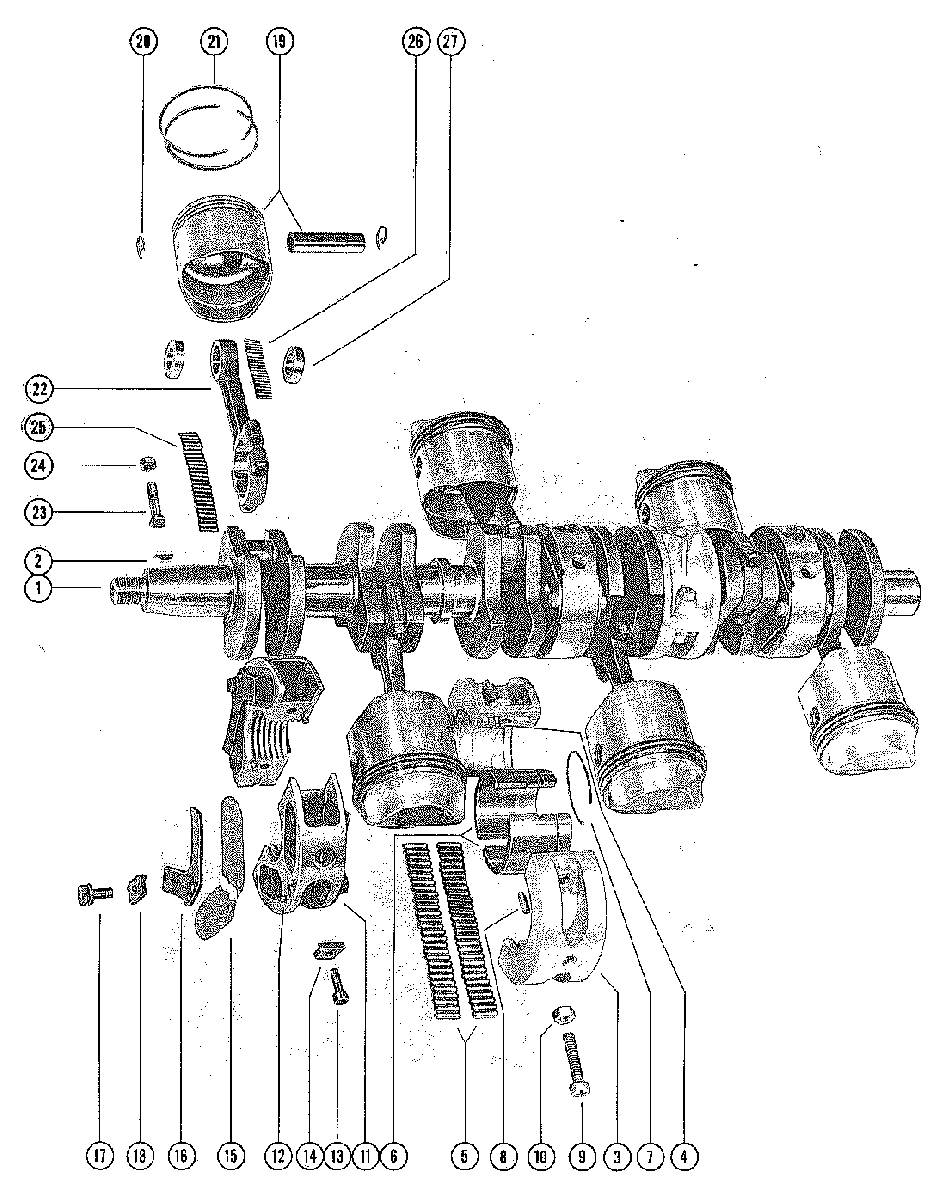

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 950 (6 CYL.) 1869776 THRU 2318585
-
№АртикулНазвание
-
1420-3351A3 CRANKSHAFT
SERIAL 00000000-02019667CRANKSHAFT
SERIAL 00000000-02019667 -
1420-3351A3 CRANKSHAFT
SERIAL 02019668-09999999CRANKSHAFT
SERIAL 02019668-09999999 -
228-45554 KEY, FLYWHEEL DRIVE
SERIAL 00000000-02019667KEY, FLYWHEEL DRIVE
SERIAL 00000000-02019667 -
228-45554 KEY, FLYWHEEL DRIVE
SERIAL 02019668-09999999KEY, FLYWHEEL DRIVE
SERIAL 02019668-09999999 -
3531-1884A3 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
417-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
529-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
753-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
817-31245 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
910-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1011-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
11533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-25313 SCREW, MAIN BEARING CLAMPING (3/8")SCREW, MAIN BEARING CLAMPING (3/8")
-
1411-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
11533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1411-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1534-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1534-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1634-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1710-77280 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1811-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
19732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
19732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2040-32118 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
19732-3270A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2040-45740 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2139-32921A12 RING, PISTON (5/64" THICK)RING, PISTON (5/64" THICK)
-
2139-78816A12 RING, PISTON (1/16" THICK)RING, PISTON (1/16" THICK)
-
22611-1885A4 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2310-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2529-47897 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2629-39656 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2712-29681 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
22617-2768A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2310-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2529-47897 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2629-39656 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2712-45741 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
