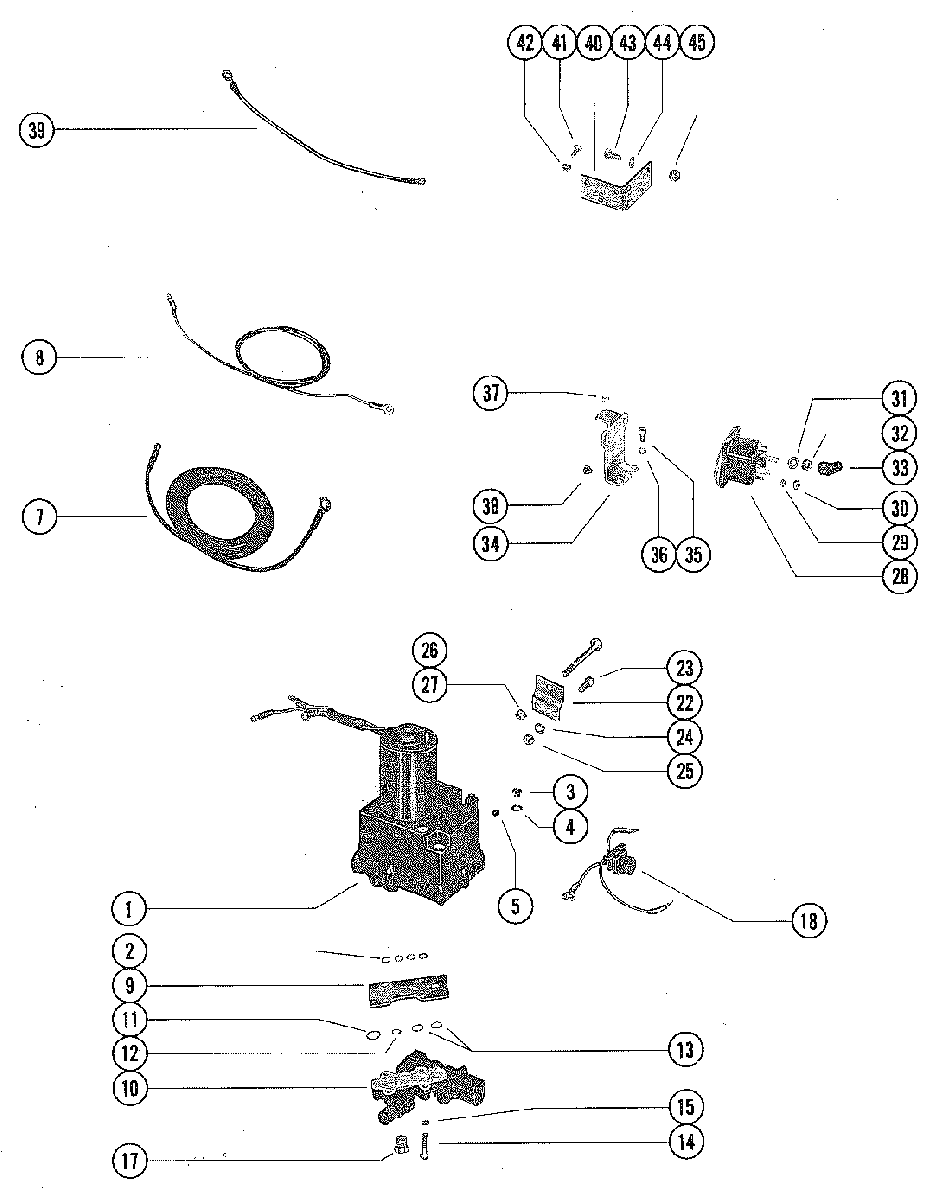

HYDRAULIC PUMP AND CONTROL VALVE для Mercury - 900, 90 7111698 THRU 7123762

  • №
    Артикул
    Название
  • 1
    92975A32 HYDRAULIC PUMP ASSEMBLY
    SEE G2 FOR BREAKDOWN
    HYDRAULIC PUMP ASSEMBLY
    SEE G2 FOR BREAKDOWN
  • 2
    25-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
    "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
  • 3
    10-79953Q04 SCREW, FILLER - HYDRAULCI PUMP
    SCREW, FILLER - HYDRAULCI PUMP
  • 4
    12-191833 WASHER
    SEALING - HYDRAULIC PUMP FILLER SCREW
    WASHER
    SEALING - HYDRAULIC PUMP FILLER SCREW
  • 5
    10-62269 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 7
    32979 BATTERY LEAD (POSITIVE)
    BATTERY LEAD (POSITIVE)
  • 8
    32988 BATTERY LEAD (NEGATIVE)
    BATTERY LEAD (NEGATIVE)
  • 9
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 10
    45197A2 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • --
    25-48171 "O" RING
    PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)
    "O" RING
    PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)
  • 11
    25-45254 "O" RING
    CONTROL VALVE TO MANIFOLF PLATE (3/4"O.D.)
    "O" RING
    CONTROL VALVE TO MANIFOLF PLATE (3/4"O.D.)
  • 12
    25-48171 "O" RING
    CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)
    "O" RING
    CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)
  • 13
    25-45253 "O" RING
    CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)
    "O" RING
    CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)
  • 14
    10-56500 SCREW
    VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")
    SCREW
    VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")
  • 15
    13-26992 LOCKWASHER
    CONTROL VALVE AND MANIFOLD PLATE SCREW
    LOCKWASHER
    CONTROL VALVE AND MANIFOLD PLATE SCREW
  • 17
    22-46008 PLUG, CONTROL VALVE (1/2-20")
    PLUG, CONTROL VALVE (1/2-20")
  • 18
    84-74023A1 CONNECTOR AND HARNESS
    CONNECTOR AND HARNESS
  • 22
    45377T BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT
    BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT
  • 23
    10-35386 SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1")
    SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1")
  • 24
    13-39107 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 25
    11-21908 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 26
    10-68298 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")
    BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")
  • 27
    11-82670912 NUT, HYDRAULIC PUMP BOLT
    NUT, HYDRAULIC PUMP BOLT
  • 28
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 29
    13-26996 LOCKWASHER
    STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER
    STARTER SOLENOID TERMINAL (#10)
  • 30
    11-68219 NUT, STARTER SOLENOID TEMRINAL (#10)
    NUT, STARTER SOLENOID TEMRINAL (#10)
  • 31
    13-26993 LOCKWASHER
    STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER
    STARTER SOLENOID TERMINAL (5/16")
  • 32
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 33
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 34
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 35
    10-21140 SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 36
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 37
    11-24656 NUT
    MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT
    MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 38
    269011 BUMPER, RUBBER - SOLENOID BRACKET
    BUMPER, RUBBER - SOLENOID BRACKET
  • 39
    84-79139A2 BATTERY LEAD (POSITIVE)
    BATTERY LEAD (POSITIVE)
  • 39
    55992 BATTERY LEAD (NEGATIVE)
    BATTERY LEAD (NEGATIVE)
  • 40
    74406 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 41
    10-69028 SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")
    SCREW
    MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")
  • 42
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 43
    10-34290 SCREW
    STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW
    STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 44
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 45
    11-21825 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
