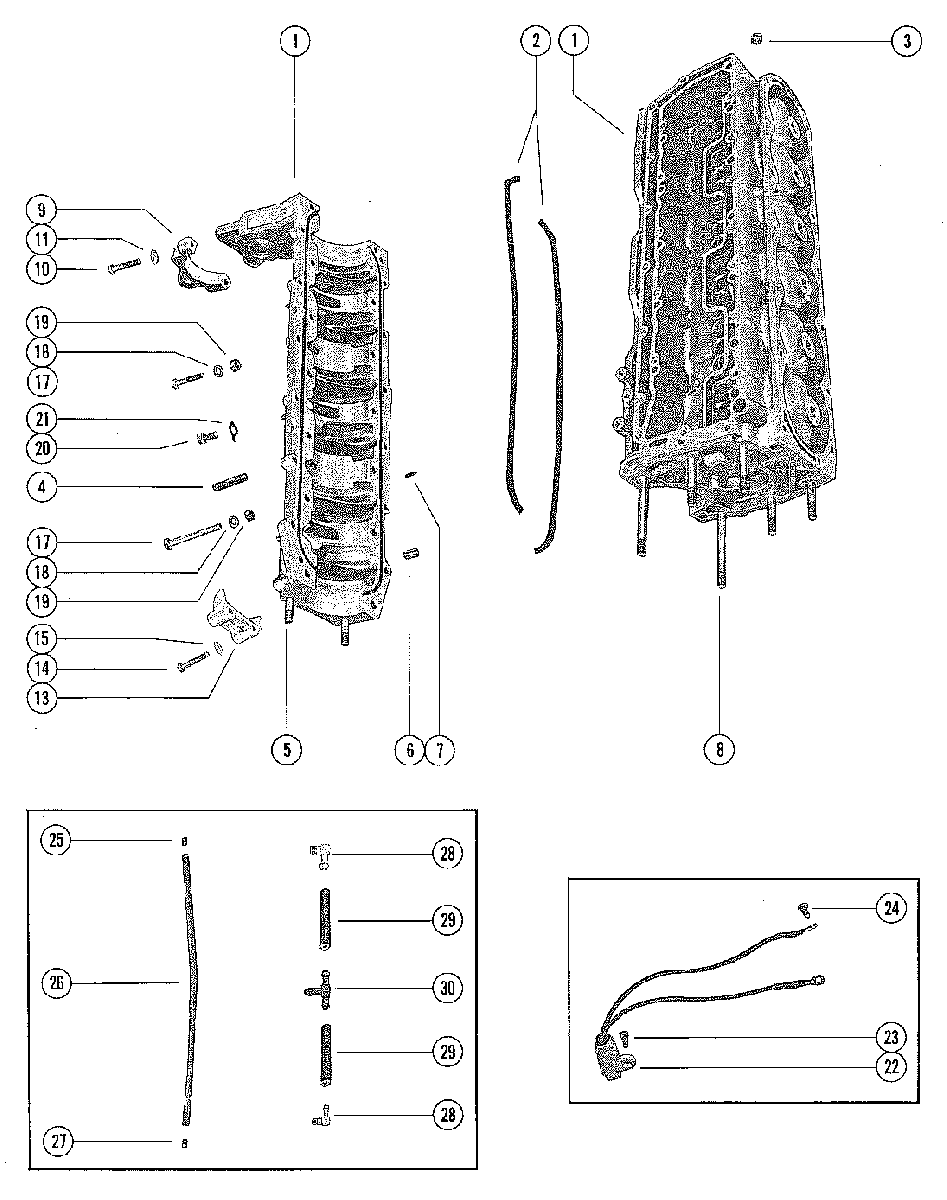

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 900, 90 7111698 THRU 7123762

  • №
    Артикул
    Название
  • 1
    852-7393A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    27-53862 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    66517 RESTRICITON, CRANKCASE BLEED
    RESTRICITON, CRANKCASE BLEED
  • 4
    16-64936 STUD, CARBURETOR MOUNTING (1 3/16")
    STUD, CARBURETOR MOUNTING (1 3/16")
  • 5
    16-64281 STUD
    CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8")
    STUD
    CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8")
  • 6
    17-43044 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 7
    17-63779 PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
    PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
  • 8
    16-64282 STUD
    CYLINDER BLOCK TO DRIVE SHAFT HOUSING PALTE (4")
    STUD
    CYLINDER BLOCK TO DRIVE SHAFT HOUSING PALTE (4")
  • 9
    56029T COVER, STARTER MOTOR BRAKCET - TOP
    COVER, STARTER MOTOR BRAKCET - TOP
  • 10
    10-31984 SCREW, TOP COVER ATTACHING (1 3/8")
    SCREW, TOP COVER ATTACHING (1 3/8")
  • 10
    10-69267 SCREW, TOP COVER ATTACHING (1 3/4")
    SCREW, TOP COVER ATTACHING (1 3/4")
  • 11
    13-26993 LOCKWASHER, TOP COVER SCREWS
    LOCKWASHER, TOP COVER SCREWS
  • 13
    76867 COVER, STARTER MOTOR BRACKET - BOTTOM
    COVER, STARTER MOTOR BRACKET - BOTTOM
  • 14
    10-73279 SCREW, BOTTOM ATTACHING (1 7/8")
    SCREW, BOTTOM ATTACHING (1 7/8")
  • 15
    13-26993 LOCKWASHER, BOTTOM COVER SCREW
    LOCKWASHER, BOTTOM COVER SCREW
  • 17
    10-57841 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
  • 17
    10-32293 SCREW, CRANKCSE TO CYLINDER BLOCK (1 3/4")
    SCREW, CRANKCSE TO CYLINDER BLOCK (1 3/4")
  • 17
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 18
    12-22753 WASHER
    CRANKCASE TO CYLINDER BLOCK SCREWS
    WASHER
    CRANKCASE TO CYLINDER BLOCK SCREWS
  • 19
    11-29250 NUT
    CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER)
    NUT
    CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER)
  • 20
    10-20359 SCREW, CENTER MAIN BEARING LOCKING
    SCREW, CENTER MAIN BEARING LOCKING
  • 21
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 22
    58124A4 SWITCH, MERCURY
    SWITCH, MERCURY
  • 23
    10-69235 SCREW
    SWITCH TO FRONT MOUNTING BRACKET (1/2")
    SCREW
    SWITCH TO FRONT MOUNTING BRACKET (1/2")
  • 24
    10-62568 SCREW, MERCURY SWITCH LEAD
    SCREW, MERCURY SWITCH LEAD
  • 25
    21-42866 CHECK VALVE, BLEED HOSE - UPPER
    CHECK VALVE, BLEED HOSE - UPPER
  • 26
    32-9938779 HOSE, BLEED (22")
    HOSE, BLEED (22")
  • 27
    21-428671 CHECK VALVE, BLEED HOSE - LOWER
    CHECK VALVE, BLEED HOSE - LOWER
  • 28
    22-20781 ELBOW, BALANCE HOSE
    ELBOW, BALANCE HOSE
  • 29
    32-8M0108355 HOSE, BALANCE - MAIN BERING (6 1/4")
    HOSE, BALANCE - MAIN BERING (6 1/4")
  • 30
    22-8585531 TEE, BALNCE HOSE
    TEE, BALNCE HOSE
  • -
    27-85653A87 GASKET SET
    GASKET SET
