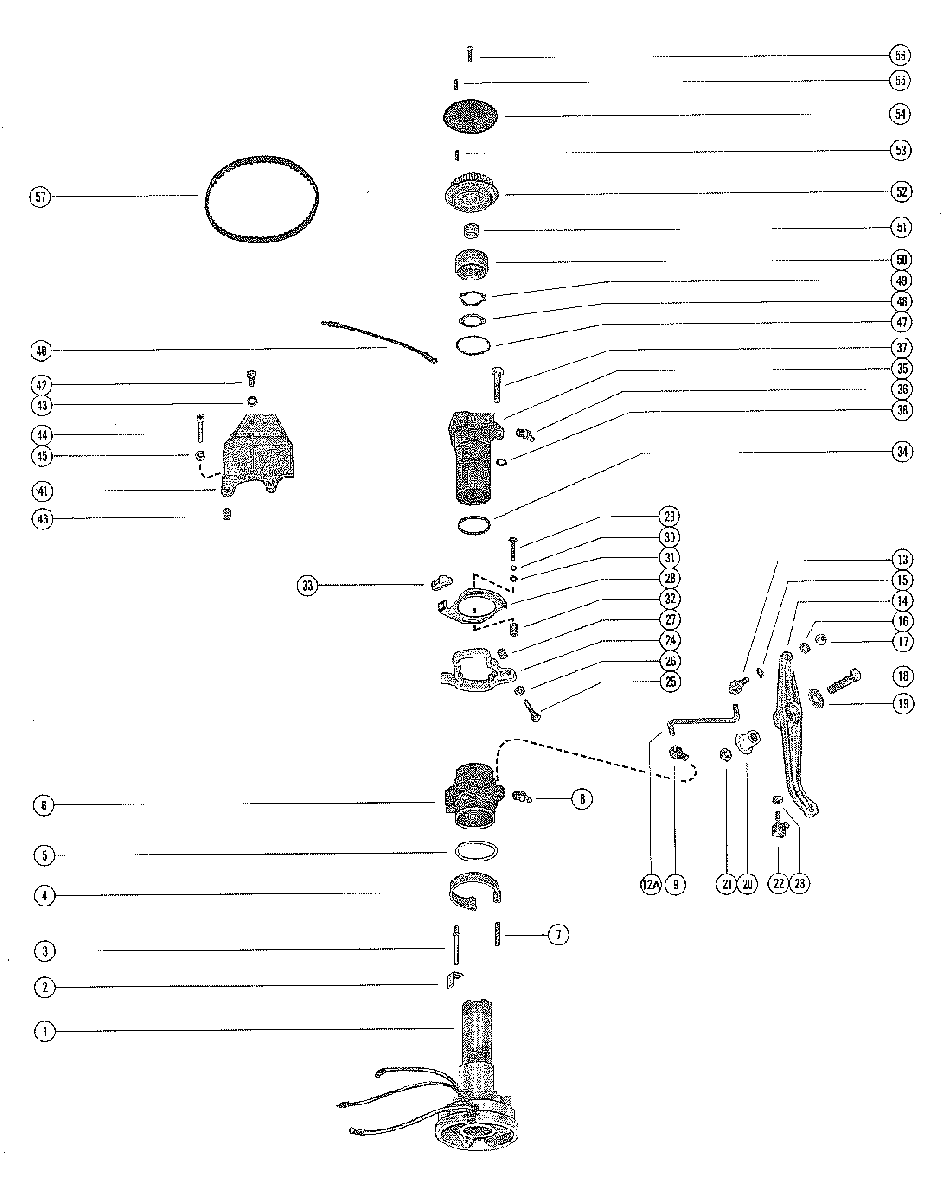

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 900, 90 7111698 THRU 7123762

  • №
    Артикул
    Название
  • 1
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 2
    32197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
    STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
  • 3
    17-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
    PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
  • 4
    24-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSING
    SPRING, HORSESHOE - DISTRIBUTOR HOUSING
  • 5
    12-53540 WASHER
    ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
    WASHER
    ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
  • 6
    55804A1 ECONOMIZER COLLAR ASSEMBLY
    ECONOMIZER COLLAR ASSEMBLY
  • 7
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 8
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 9
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 12A
    67469 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 13
    27948 SWIVEL
    UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL
    UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 14
    78992 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 15
    13-39954 WASHER
    WAVE - THROTTLE CONTROL LEVER SWIVEL
    WASHER
    WAVE - THROTTLE CONTROL LEVER SWIVEL
  • 16
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    WASHER, THROTTLE CONTROL LEVER SWIVEL
  • 17
    11-35888 NUT, UPPER LINK ROD THROTTLE CONTROL LEVER
    NUT, UPPER LINK ROD THROTTLE CONTROL LEVER
  • 18
    10-31830 SCREW
    THROTTLE LEVER TO EXHAUST COVER (1 3/4")
    SCREW
    THROTTLE LEVER TO EXHAUST COVER (1 3/4")
  • 19
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 20
    23-45818 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 21
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    NUT, THROTTLE CONTROL LEVER SCREW
  • 22
    37587 SWIVEL
    LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL
    LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 23
    11-35888 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 24
    48692 COLLAR, THROTTLE ACTUATOR
    COLLAR, THROTTLE ACTUATOR
  • 25
    10-48675 SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
    SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
  • 26
    11-64015 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 27
    52023 CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 28
    48671 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 29
    10-37892 SCREW
    THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
    SCREW
    THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
  • 30
    12-30164 WASHER
    THROTTLE ACTUATOR PLATE FASTENING SCREW
    WASHER
    THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 31
    13-26996 LOCKWASHER
    THROTTLE ACTUATOR PLATE FASTENING SCREW
    LOCKWASHER
    THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 32
    23-48674 SPACER, THROTTLE ACTUATOR PLATE SCREW
    SPACER, THROTTLE ACTUATOR PLATE SCREW
  • 33
    58454 CAM, THROTTLE ACTUATOR PLATE
    CAM, THROTTLE ACTUATOR PLATE
  • 34
    12-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSING
    WASHER, ADAPTOR - DISTRIBUTOR HOUSING
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    ADAPTOR ASSEMBLY, DISTRIBUTOR
  • 36
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 37
    10-73657 SCREW
    DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    SCREW
    DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
  • 38
    12-20084 WASHER, DISTRIBUTOR HOUSING SCREW
    WASHER, DISTRIBUTOR HOUSING SCREW
  • 40
    84-93388A1 WIRE
    GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET
    WIRE
    GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET
  • 41
    55805 BRAKCET, STOP
    BRAKCET, STOP
  • 42
    10-28636 SCREW
    DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")
    SCREW
    DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")
  • 43
    12-35462 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 44
    10-64022 SCREW, STOP BRACKET ADJUSTING (2 1/8")
    SCREW, STOP BRACKET ADJUSTING (2 1/8")
  • 45
    11-64015 NUT, STOP BRACKET ADJUSTING SCREW
    NUT, STOP BRACKET ADJUSTING SCREW
  • 46
    52023 CAP, NYLON - STOP BRACKET ADJUSTING SCREW
    CAP, NYLON - STOP BRACKET ADJUSTING SCREW
  • 47
    12-27939 WASHER, DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR HOUSING
  • 48
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 49
    13-27959 WASHER
    WAVE - DISTRIBUTOR BALL BEARING TENSION
    WASHER
    WAVE - DISTRIBUTOR BALL BEARING TENSION
  • 50
    54567 CAP, DISTRIBUTOR HOUSING
    CAP, DISTRIBUTOR HOUSING
  • 51
    23-47250 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 52
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 53
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 54
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 55
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 56
    10-68554 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 57
    20140 BELT, TIMING
    BELT, TIMING
