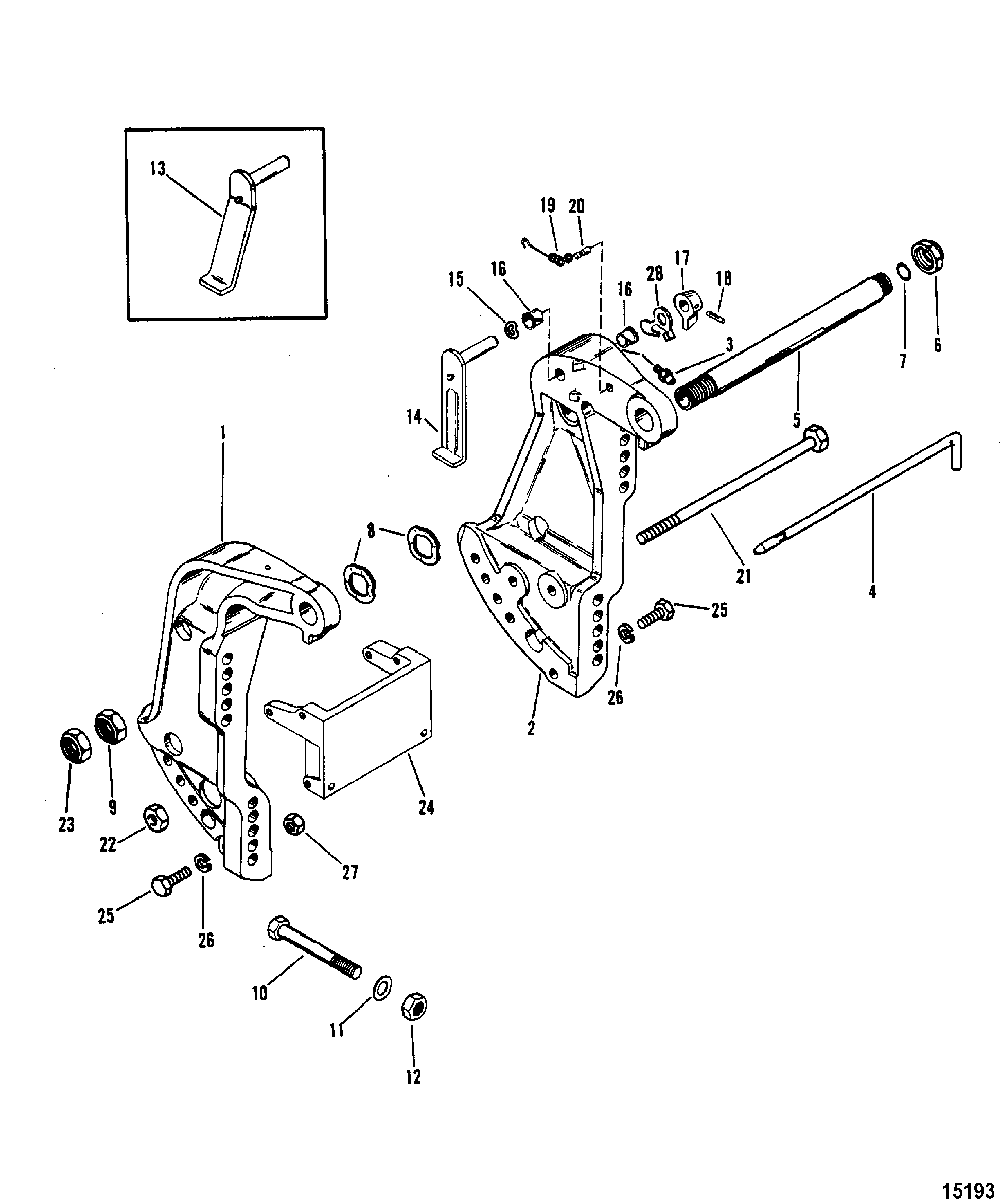

Transom Bracket для Mercury - 90 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    3401-8718F7 TRANSOM BRACKET, Starboard, Black
    TRANSOM BRACKET, Starboard, Black
  • 2
    3400-8716A8 TRANSOM BRACKET, Port, Black
    TRANSOM BRACKET, Port, Black
  • 1
    3401-8718F8 TRANSOM BRACKET, Starboard, Gray
    TRANSOM BRACKET, Starboard, Gray
  • 2
    3400-8716A9 TRANSOM BRACKET, Port, Gray
    TRANSOM BRACKET, Port, Gray
  • 3
    22-98727 FITTING, Grease, Port
    FITTING, Grease, Port
  • 4
    17-8M0026068 TILT LOCK PIN ASSEMBLY, Non Power Trim
    TILT LOCK PIN ASSEMBLY, Non Power Trim
  • 5
    826125A1 TILT TUBE, Power Trim
    TILT TUBE, Power Trim
  • 6
    11-82671327 NUT, Black
    NUT, Black
  • 6
    11-82671327 NUT, (1.00-14), Gray
    NUT, (1.00-14), Gray
  • 7
    25-45711 O-RING
    O-RING
  • 8
    13-88750 WAVE WASHER
    WAVE WASHER
  • 9
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 10
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 11
    12-28421 WASHER
    WASHER
  • 12
    11-91962 NUT
    NUT
  • 13
    8M0115104 LEVER ASSEMBLY, Non Power Trim And Three Ram Power Trim
    LEVER ASSEMBLY, Non Power Trim And Three Ram Power Trim
  • 14
    8M0109798 TILT LOCK LEVER, Single Ram Power Trim
    TILT LOCK LEVER, Single Ram Power Trim
  • 15
    13-99611 WAVE WASHER
    WAVE WASHER
  • 16
    23-65830 NYLINER
    NYLINER
  • 17
    99633 KNOB
    KNOB
  • 18
    17-99615 PIN
    PIN
  • 19
    24-99622 SPRING
    SPRING
  • 20
    17-99604 GROOVE PIN
    GROOVE PIN
  • 21
    10-96930A1 BOLT ASSEMBLY, Power Trim
    BOLT ASSEMBLY, Power Trim
  • 22
    11-23161 NUT, (.375-24), Power Trim
    NUT, (.375-24), Power Trim
  • 23
    11-8M0041651 NUT, (.875-14), Power Trim
    NUT, (.875-14), Power Trim
  • 24
    8M0086406 ANCHOR BRACKET, Black
    (Single Ram Power Trim)
    ANCHOR BRACKET, Black
    (Single Ram Power Trim)
  • 24
    8M0086406 ANCHOR BRACKET, Gray
    (Single Ram Power Trim)
    ANCHOR BRACKET, Gray
    (Single Ram Power Trim)
  • 25
    10-4000377 SCREW, (M10 x 30), Single Ram Power Trim
    SCREW, (M10 x 30), Single Ram Power Trim
  • 26
    13-400258 LOCKWASHER, Single Ram Power Trim
    LOCKWASHER, Single Ram Power Trim
  • 27
    11-40114 NUT, (M10), Single Ram Power Trim
    NUT, (M10), Single Ram Power Trim
  • 28
    814207 STOP
    STOP
