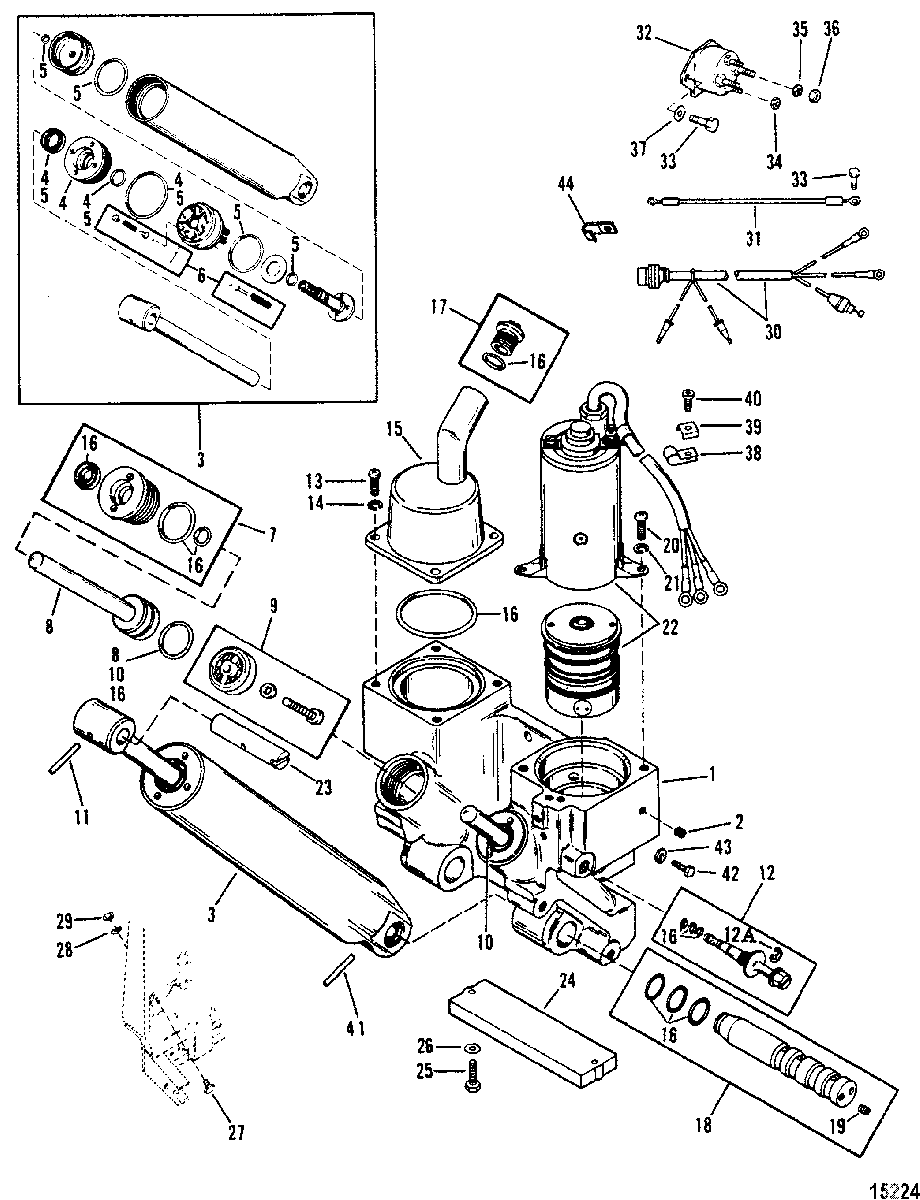

Power Trim Components, Three Ram (Design I ) для Mercury - 90 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    99659A21 MANIFOLD ASSEMBLY, Black
    MANIFOLD ASSEMBLY, Black
  • 1
    99659A22 MANIFOLD ASSEMBLY, Gray
    MANIFOLD ASSEMBLY, Gray
  • 2
    22-56800 PIPE PLUG
    PIPE PLUG
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY, Black
    TRIM CYLINDER ASSEMBLY, Black
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY, Gray
    TRIM CYLINDER ASSEMBLY, Gray
  • 4
    41492A1 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 5
    25-41478A1 REPAIR KIT
    REPAIR KIT
  • 6
    41482A2 CHECK VALVE KIT
    CHECK VALVE KIT
  • 7
    1100-8M0021648 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 8
    878413A1 PISTON AND ROD ASSEMBLY, Port
    PISTON AND ROD ASSEMBLY, Port
  • 9
    35-12184A1 TRIM FILTER ASSEMBLY
    TRIM FILTER ASSEMBLY
  • 10
    878414T01 PISTON AND ROD ASSEMBLY, Starboard
    PISTON AND ROD ASSEMBLY, Starboard
  • 11
    17-821539 PIN, Trilobe, Trim Cylinder, Upper
    PIN, Trilobe, Trim Cylinder, Upper
  • 12
    893929A01 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 12A
    53-815949001 E-RING
    E-RING
  • 13
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 14
    12-4002315 WASHER
    WASHER
  • 15
    99642 COVER
    COVER
  • 16
    25-48462A4 O-RING KIT
    O-RING KIT
  • 17
    19-99609A1 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 18
    99641A02 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 19
    22-56800 PIPE PLUG, Shaft
    PIPE PLUG, Shaft
  • 20
    10-4008820 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 21
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 22
    826729A10 POWER TRIM PUMP
    (Refer To Power Trim Pump For Breakdown)
    POWER TRIM PUMP
    (Refer To Power Trim Pump For Breakdown)
  • 23
    99625002 SHAFT
    SHAFT
  • 24
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 25
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 26
    12-29245 WASHER, (.281 x .500 x .060)
    WASHER, (.281 x .500 x .060)
  • 27
    8M0045383 STRIKER PLATE
    STRIKER PLATE
  • 28
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 30
    84-17201A2 CONTROL HARNESS, (17.00 Inches)
    CONTROL HARNESS, (17.00 Inches)
  • 31
    84-87379A14 WIRE ASSEMBLY, (2.750 Inches), Red
    WIRE ASSEMBLY, (2.750 Inches), Red
  • 31
    84-88807A13 CABLE ASSEMBLY (3.50 Inch) Black
    CABLE ASSEMBLY (3.50 Inch) Black
  • 32
    89-850187T1 STARTER SOLENOID, ( 8-32 .250-20 Terminals)
    STARTER SOLENOID, ( 8-32 .250-20 Terminals)
  • 33
    10-40007106 SCREW, (M5 X 13)
    SCREW, (M5 X 13)
  • 34
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 35
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 36
    11-64015 NUT, ( #8-32)
    NUT, ( #8-32)
  • 37
    12-4002314 WASHER
    WASHER
  • 38
    54-22875 CLIP
    CLIP
  • 39
    8M0084613 C WASHER
    C WASHER
  • 40
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 41
    17-878267 GROOVE PIN, Lower
    GROOVE PIN, Lower
  • 42
    10-4000377 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 43
    13-400258 LOCKWASHER
    LOCKWASHER
  • 44
    54-47483 J CLIP, Old Design
    J CLIP, Old Design
