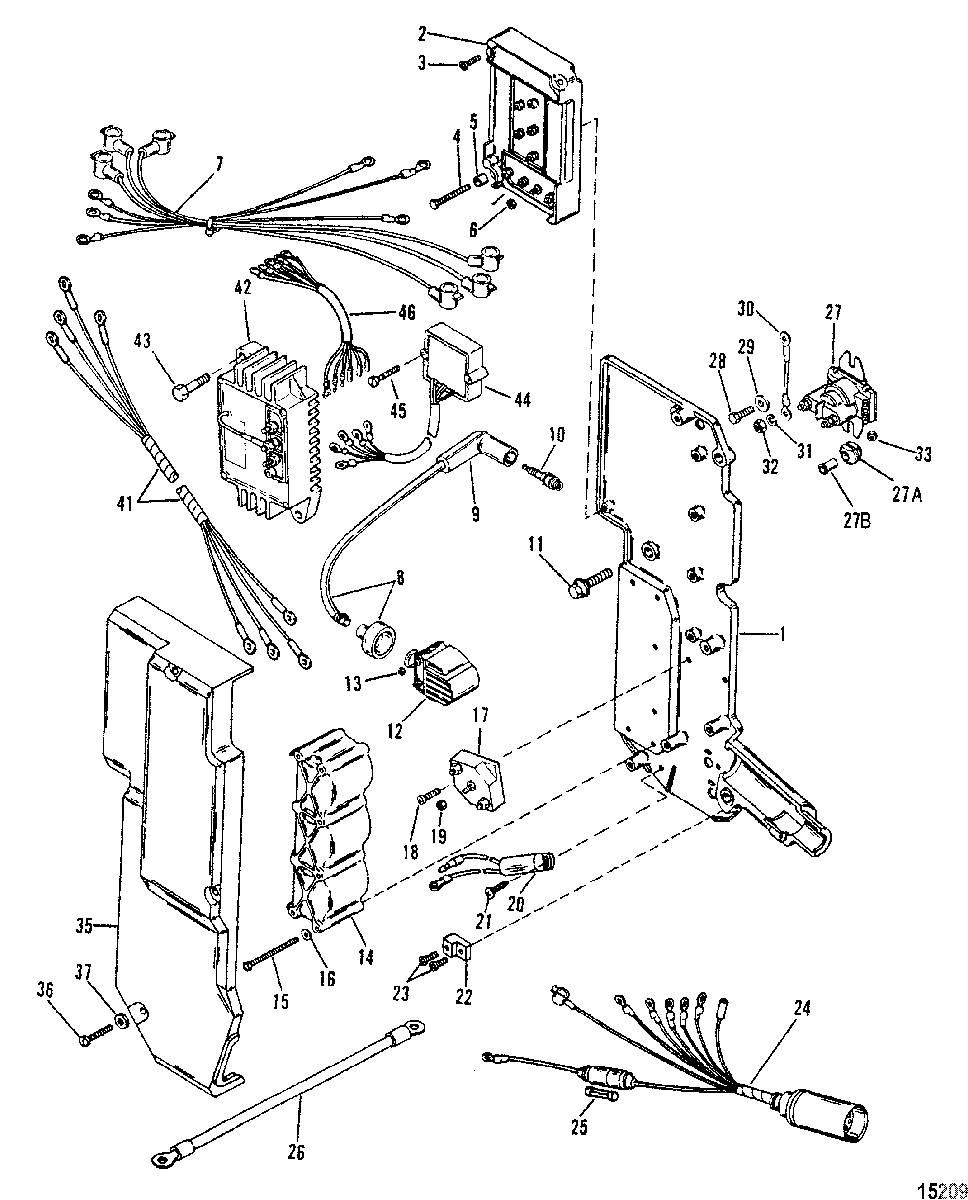

Electrical Components для Mercury - 90 (3 CYL.) 9589039 THRU 9793576
![](/wa-data/public/shop/sheme/mercury/ehvag5jx.png)
-
№АртикулНазвание
-
142968A23 IGNITION PLATEIGNITION PLATE
-
2332-7778A12 SWITCH BOXSWITCH BOX
-
310-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
410-40007110 SCREW, (M5 X 30)SCREW, (M5 X 30)
-
523-94304 SPACERSPACER
-
611-45076 NUT, (#10-32)NUT, (#10-32)
-
784-41592A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
884-813715A7 CABLECABLE
-
985-63709A1 BOOT KITBOOT KIT
-
1033-97182Q SPARK PLUG
(NGK #BUHW-2)SPARK PLUG
(NGK #BUHW-2) -
1033-14103Q SPARK PLUG
(Belgium/Canada) (NGK #BUZHW-2)SPARK PLUG
(Belgium/Canada) (NGK #BUZHW-2) -
1110-82155025 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
12339-832757A4 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
1311-45076 NUT, (#10-32)NUT, (#10-32)
-
1443542 COVERCOVER
-
1510-40007115 SCREW, (M5 X 55)SCREW, (M5 X 55)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1717602A1 TERMINAL BLOCK, BlackTERMINAL BLOCK, Black
-
1717602T02 TERMINAL BLOCK, GrayTERMINAL BLOCK, Gray
-
1810-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1911-45076 NUT, (#10-32)NUT, (#10-32)
-
2016731T01 MERCURY SWITCH, Old DesignMERCURY SWITCH, Old Design
-
2110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2286-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2484-41591A7 ENGINE HARNESS
SN# D252461 & UpENGINE HARNESS
SN# D252461 & Up -
2484-41591A3 WIRING HARNESS ASSEMBLY
SN# D252460 & BelowWIRING HARNESS ASSEMBLY
SN# D252460 & Below -
2484-41591A7 ENGINE HARNESS, Use Without Reference Number 20 And 21ENGINE HARNESS, Use Without Reference Number 20 And 21
-
2588-79091 FUSE, (20 Ampere)FUSE, (20 Ampere)
-
2684-88439A3 BATTERY CABLE, PositiveBATTERY CABLE, Positive
-
2684-88439A4 BATTERY CABLE, NegativeBATTERY CABLE, Negative
-
2789-850187T1 STARTER SOLENOID, ( 8-32 .250-20 Terminals)STARTER SOLENOID, ( 8-32 .250-20 Terminals)
-
27A25-818967 GROMMETGROMMET
-
27B23-818968 BUSHINGBUSHING
-
2810-40011109 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
2912-4002314 WASHERWASHER
-
3084-88807A6 WIRE, (3.50 Inches) Black, Quantity Of Three On Power TrimWIRE, (3.50 Inches) Black, Quantity Of Three On Power Trim
-
3113-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
3211-64015 NUT, ( #8-32)NUT, ( #8-32)
-
3311-26419 NUT, (#8-32)NUT, (#8-32)
-
34134731 FUSE HOLDER, Old DesignFUSE HOLDER, Old Design
-
35124174 COVERCOVER
-
3610-40007114 SCREW, (50 MM)SCREW, (50 MM)
-
3712-89302 WASHER, (.203 x .406 x .040), Use Where ApplicableWASHER, (.203 x .406 x .040), Use Where Applicable
-
4184-12201A2 HARNESS ASSEMBLY
(Use With Black Terminal Block)HARNESS ASSEMBLY
(Use With Black Terminal Block) -
42815279A2 VOLTAGE REGULATOR
(Use With Black Terminal Block)VOLTAGE REGULATOR
(Use With Black Terminal Block) -
4310-4010630 SCREW, (M6 x 30)
(Use With Black Terminal Block)SCREW, (M6 x 30)
(Use With Black Terminal Block) -
448M0084173 VOLTAGE REGULATOR
(Two Female/Three Male Terminals)VOLTAGE REGULATOR
(Two Female/Three Male Terminals) -
44815279A2 VOLTAGE REGULATOR, Five Ring TerminalsVOLTAGE REGULATOR, Five Ring Terminals
-
4510-4010635 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
4684-821546A3 HARNESS
(Use With 815279--3 Voltage Regulator)HARNESS
(Use With 815279--3 Voltage Regulator)
