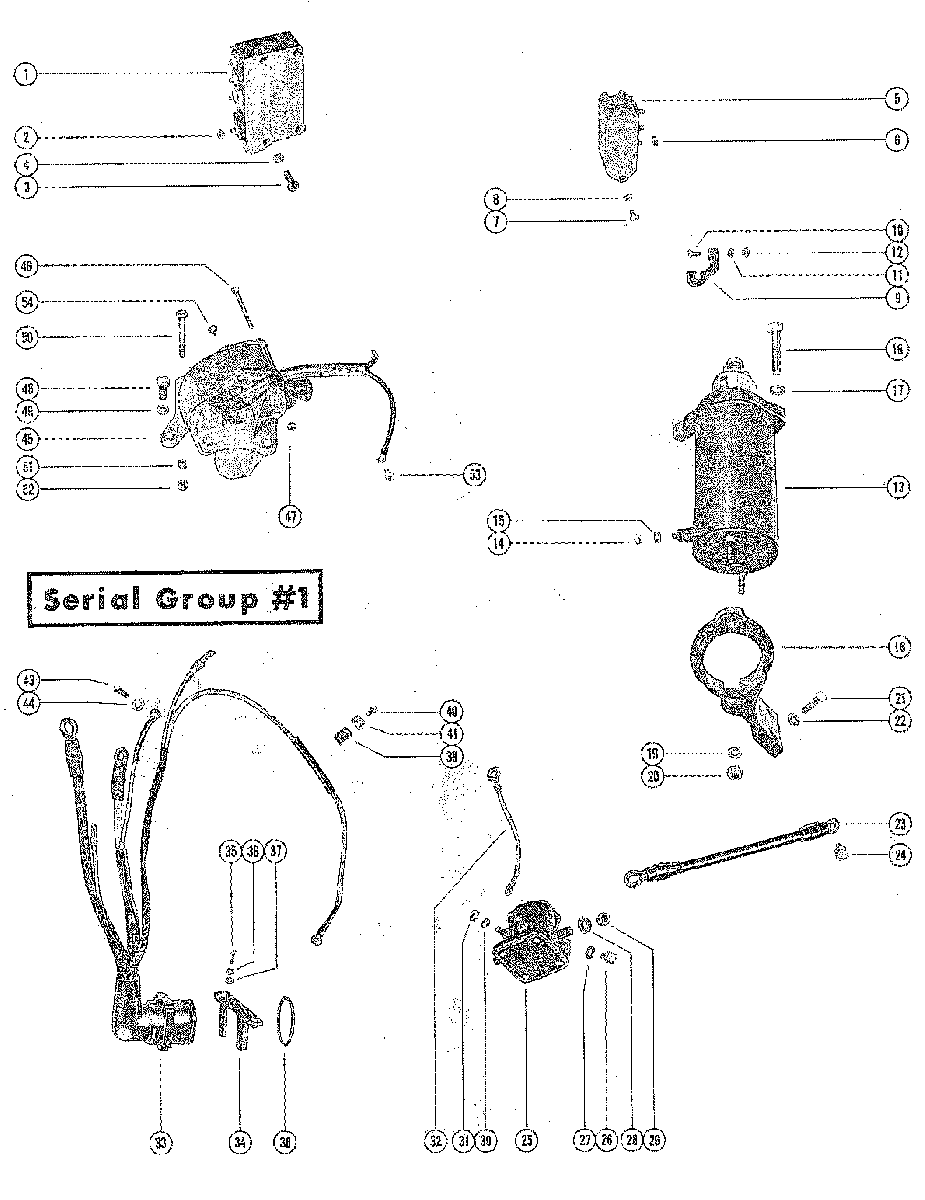

STARTER MOTOR AND WIRING HARNESS (SERIAL GROUP #1) для Mercury - 850 (4 CYL.) 7010108 THRU 7071372
-
№АртикулНазвание
-
1332-2986A27 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
211-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
310-69028 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
-
411-20184 NUT, SWITCH BOX TO FRONT SUPPOR BRACKET SCREWNUT, SWITCH BOX TO FRONT SUPPOR BRACKET SCREW
-
578614A1 RECTIFIER ASSEMBLY, COMPLETERECTIFIER ASSEMBLY, COMPLETE
-
611-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
710-76621 SCREW, RECTIFIER TO BOTTOM COWL (7/8")SCREW, RECTIFIER TO BOTTOM COWL (7/8")
-
813-22773 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
959757 BRACKET, RETAINER - HIGH TENSION LEADBRACKET, RETAINER - HIGH TENSION LEAD
-
1010-22956 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
-
1112-29245 WASHER, RETAINER BRACKET FASTENING SCREWWASHER, RETAINER BRACKET FASTENING SCREW
-
1211-20184 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
1350-58788A3 STARTER MOTOR ASSEMBLY (FOR BREAKDOWN, SEE ACCESSORY SECTION)
(FOR BREAKDOWN, SEE ACCESSORY SECTION "E"STARTER MOTOR ASSEMBLY (FOR BREAKDOWN, SEE ACCESSORY SECTION)
(FOR BREAKDOWN, SEE ACCESSORY SECTION "E" -
1411-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
1513-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1610-73657 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")
-
1610-31984 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")
-
1713-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
1852691 BRACKET, SUPPORT - STARTER MOTORBRACKET, SUPPORT - STARTER MOTOR
-
1913-26992 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTORLOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
-
2011-20013 NUT, THRU BOLT - BRACKET TO STARTER MOTORNUT, THRU BOLT - BRACKET TO STARTER MOTOR
-
2110-37562 SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1")
-
2213-26993 LOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREWLOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREW
-
2384-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNTWIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
-
2410-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
2525661T1 STARTER SOLENOIDSTARTER SOLENOID
-
2610-69028 SCREW, STARTER SOLENOID TO COIL BRACKET (3/4")SCREW, STARTER SOLENOID TO COIL BRACKET (3/4")
-
2713-26992 LOCKWASHER, STARTER SOLENOID MOUNTING SCREWLOCKWASHER, STARTER SOLENOID MOUNTING SCREW
-
2813-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
2911-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16")NUT, SOLENOID TERMINAL - INSIDE (5/16")
-
3013-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3111-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3252902 CABLE, STARTER SOLENOID TO STARTER MOTORCABLE, STARTER SOLENOID TO STARTER MOTOR
-
3352771A2 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3454-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
3510-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
3613-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
3712-847883 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
3824-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3954-26550 CLAMP, WIRING HARNESS TO COIL BRACKETCLAMP, WIRING HARNESS TO COIL BRACKET
-
4010-69079 SCREW, WIRING HARNESS CLAMP TO COIL BRACKETSCREW, WIRING HARNESS CLAMP TO COIL BRACKET
-
418M0084613 "D" WASHER, WIRING HARNESS CLAMP"D" WASHER, WIRING HARNESS CLAMP
-
4310-98256 SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
-
4413-26992 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
45332-4895A5 IGNITION COIL ASSEMBLY, COMPLETEIGNITION COIL ASSEMBLY, COMPLETE
-
4610-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")SCREW, IGNITION COIL CLAMPING (2 1/4")
-
4711-8267086 NUT, IGNITION COIL CLAMPING SCREWNUT, IGNITION COIL CLAMPING SCREW
-
4810-37941 SCREW, IGNITION COIL TO BOTTOM COWL (1 3/4")SCREW, IGNITION COIL TO BOTTOM COWL (1 3/4")
-
4913-26992 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
5010-88488 SCREW, IGNITION COIL TO BOTTOM COWL (3 1/4")SCREW, IGNITION COIL TO BOTTOM COWL (3 1/4")
-
5123-52933 SPACER, COIL BRACKET TO BOTTOM COWLSPACER, COIL BRACKET TO BOTTOM COWL
-
5211-20184 NUT, IGNITION COIL SCREWNUT, IGNITION COIL SCREW
-
5310-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
54269011 BUMPER, IGNITION COILBUMPER, IGNITION COIL
